Galvalume Color Steel Movable Hydraulic Model Gasoline Type Lamina Kr18 Seam Standing Roof Roll Forming Machine
Galvalume Color Steel Movable Hydraulic Model Gasoline Type Lamina Kr18 Seam Standing Roof Roll Forming Machine
Our KR-18 crimped sheet profile is rolled on portable equipment and manufactured from 2-foot steel strip in various gauges and finishes.
If manufactured on-site, KR-18 sheets can be rolled to the length of the slope, as long as it does not exceed 70 m. This significantly reduces maintenance costs and guarantees a waterproof roof.
The KR-18 crimped sheet can be used on low-slope roofs and has excellent drainage capacity.
The KR-18 sheet is very popular in L.A.B Monterrey, Nuevo León, Mexico, Federal District, Guadalajara.
1. Technical Parameter
|
NO. |
Items |
UnitType |
RF-ST |
|
1 |
Steel Thickness |
mm |
0.4-0.7mm for Color coated steel,,aluminum sheet |
|
2 |
Forming Speed |
m/min |
8-12 |
|
3 |
Roller stands |
stations |
9 stations |
|
4 |
Roller Material |
mm |
45# steel, coated with chrome |
|
5 |
Shaft material and diameter |
mm |
Ф70mm, 45# steel, fire treated |
|
6 |
Power |
HP |
22HP |
|
7 |
Hydraulic pressure |
Mpa |
12 |
|
9 |
Power Supply |
|
220V, 60HZ,3 phase |
|
10 |
Tolerance |
mm |
1.5 |
|
11 |
Material of cutting |
|
Cr12Mov HRC60-62 |
2. Machine List
* 5 Tons Manual Uncoiler
* kR18 roll forming machine;
* Run out table ( 2 units );
* Hydraulic cutter;
* Protective Cover;
* Tools;
* Operation Manual;
3.Work flow
4. KR18 Profile Drawing
SSM KR-18 profile design
Available in calibers 22 to 26
KR18 standing seam is a type of metal roofing system characterized by its unique "standing seam" design, where the seams or joints between roofing panels are elevated above the roof deck, rather than being flush with the surface.
This raised seam design helps to prevent water from penetrating the roof, making it highly resistant to leaks, and it is often used for commercial, industrial, and residential applications requiring long-lasting, weather-resistant roofing solutions.
Recommended fastening for uninsulated roofs: Two 1/4″ x 1″ self-drilling galvanized hex-head screws in each clip and 3-bolt annealing screws in all sheets at the last purlin next to the knee.
4. KR-18 application
- Commercial Roofing: Commonly used on commercial and industrial buildings because of its durability, sleek appearance, and resistance to extreme weather.
- Residential Roofing: Increasingly popular in modern or high-end residential designs for its clean lines and long lifespan.
- Industrial Structures: Ideal for warehouses, factories, and storage facilities where long-lasting, low-maintenance roofing is essential.
- Agricultural Buildings: Used on barns, farmhouses, and other agricultural buildings where a durable and leak-resistant roof is necessary.

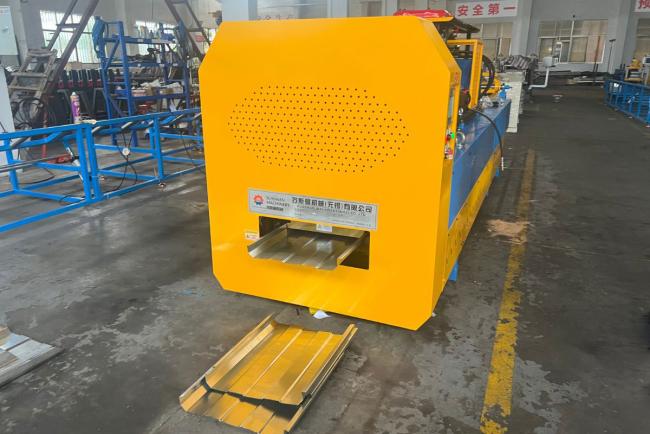

5. Machine photo
6. FAQ
B: What service can you provide before order?
- About the pre-sale service. We provide you answers of all your questions on our machines, such as technical parameter,
price,payment terms, ect. If you wanna visit our factory and check the machines, we also can send you invitation letter and give you our warmest welcome.
C: How is the quality? Is there any department related to quality control?
-All raw materials we use are quality controlled. Workers will take care of every detail when handling production and
packaging.The quality control department is responsible for the quality of each process.
D:Can you finish the machine during the delivery time?
--We will finish the machine in time according to determined lead time.
E:How about after-sales service?
-The warranty is one year. and we will provide the technical support for the whole life. It is free to maintain the machine the
first year after buying, including changing the main components. The first year hence,We can send technician to your country to fix the machine. The buyer should bear all the cost including: visa, Roundtrip ticket and suitable accommodation, also buyer should pay the salary 150USD/day.
