China 1.0-2.0mm Thickness 30*50 30*70 30*100 U Shape Metal Rolling Shuter Door Guide Rail Roll Forming Machine for sale

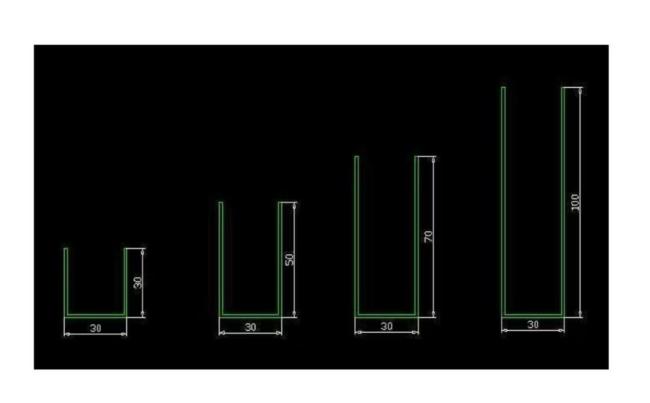

1.0-2.0mm Thickness 3050 3070 30*100 U Shape Metal Rolling Shuter Door Guide Rail Roll Forming Machine

Name: 1.0-2.0mm Thickness 30*50 30*70 30*100 U Shape Metal Rolling Shuter Door Guide Rail Roll Forming Machine
Brand: Sussman Machinery(Wuxi) Co.,Ltd

Price Negotiable

Price: USD65000-85000 Per Set

MOQ: 1 set

Delivery Time: Shipped in 90 days after payment

Brand: SUSSMAN

Product Description

1.0-2.0mm Thickness 30*50 30*70 30*100 U Shape Metal Rolling Shuter Door Guide Rail Roll Forming Machine

Side guide channels are used for the installation of door frames, designed as runners for single and insulated roller shutter door lath to move up and down in operation.

Suitable for:
* Roller Shutter Door Frames
* Industrial Door Frames
* Commercial Door Frames
* Garage Door Frames

Technical Data:

Items	Specifications
Material of coil	Material Thickness	Calibre 14 galvanized steel &black steel
Forming system	Rolling Speed	About 10-12 meters/minute
	Roller Stations	About16 stations
	Roller Material	Gcr15
	Maim Motor Power	7.5KW
	hydraulic station Power	4 kw
Cutting system	Material Of Cutting	CR12 with quench treatment
	Hardness	HRC58-62
	Tolerance	+-1.5mm
Electrical control system	Electric Source	220V, 60HZ,3 phase Also can satisfy Customer’s require
	Control System	PLC control system
	Weight	About 3.5 tons
	Way Of Drive	1 inch single chain
	Size of machine	Length 5500mm* Width 600mm* Height 1000m

Machine List:

3 ton passive de-coiler	1 set
Main roll forming machine	1 set
Hydraulic stop cutting	1 unit
PLC Control box	1 unit
Hydraulic station	1 unit
6 meters output table	1 unit
Spare parts	1 package
Safety cover	1 unit

Working Flow:

Uncoiling—feedingwithguide—Rollforming——hydraulicCutting—Products collecting

Sample pictures:

Machine Shows:

Main Features

1) Easy in installation and maintenance.
2) Hardened structural steel and components provide long life and safe operational stability.
3) Adopting advanced world famous brand components in controlling parts, electric parts and operation parts.
4) Running in an automation, high durability and stability.
5) Compact design, meet custom demands.

Application:
