Europe Popular Fencing Security System Color Coated Galvanized Steel Fence Panel Roll Forming Machine
Europe Popular Fencing Security System Color Coated Galvanized Steel Fence Panel Roll Forming Machine
1.Fence panel machine
| 1 | Suitable to process | Color steel plate,Galvanized steel |
| 2 | Width of the plate | As customer need |
| 3 | Thickness of the plate | 0.3-0.8mm |
| 4 | De-coiler | Automatic one, can load 3 tons raw material |
| 5 | Rollers for forming | Uplevel18 rollers Downlevel 18 Rollers |
| 6 | Diameter of the roller | Φ75mm |
| 7 | Rolling material | High Grade Steel 45# |
| 8 | Main motor power | 7.5kw |
| 9 | Productivity | About 8-10m/min |
| 10 | Cutting method | Hydraulic cutting |
| 11 | Material of the cutting blade | Cr12Mov |
| 12 | Hydraulic cutting power | 4kw |
| 13 | Processing precision | Within 1.00mm |
| 14 | Control system | PLC control |
| 15 | Main structure of the machine | 350 H steel |
| 16 | Weight | About 8.5 T |
| 17 | Dimensions | 7.5*1.2*1.3m |
| 18 | Voltage | 380V 50Hz 3phases |
2. Fence Panel Machine’s Components
| Item | Components Name | Quantity |
| 1 | 3T hydraulic Decoiler | 1 set |
| 2 | Leveling machine | 1 set |
| 3 | Roll Forming Machine | 1 set |
| 4 | Hydraulic Station | 1 set |
| 5 | PLC control cabinet | 1 set |
| 6 | Cutting blade | 1 set |
| 7 | Safety cover | 1 set |
| 8 | Outable | 1 pc |

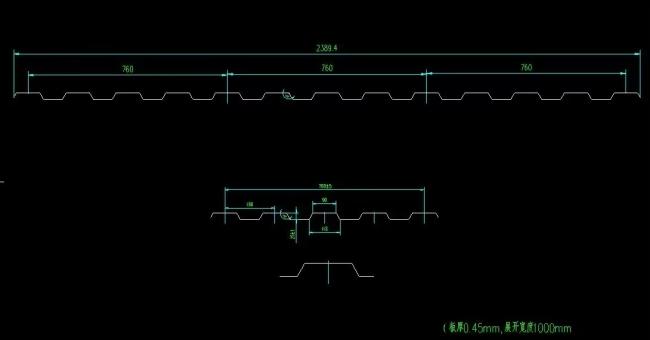

3. Fence Panel Profile drawing
4.Application

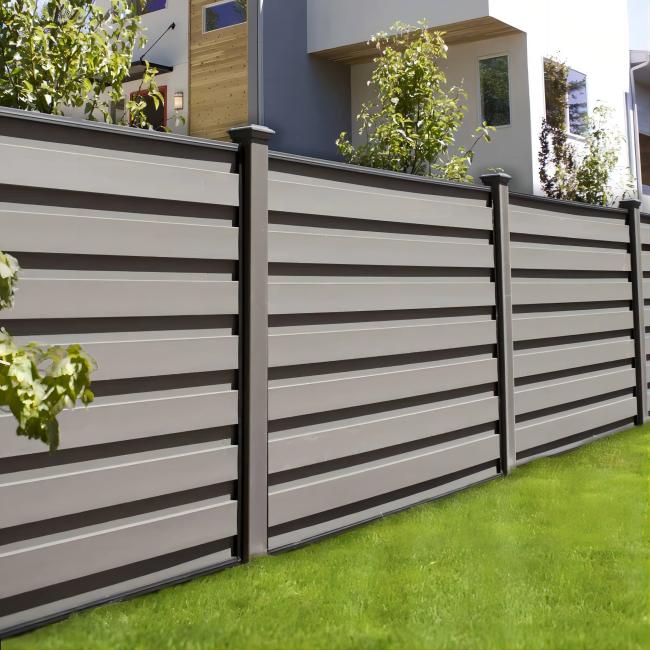

The core value of iron fences lies in the combination of "safety protection + durability + flexibility," while also balancing
aesthetics and environmental friendliness. Therefore, they have become a classic choice for protection and isolation in
residential, commercial, industrial, and municipal fields.

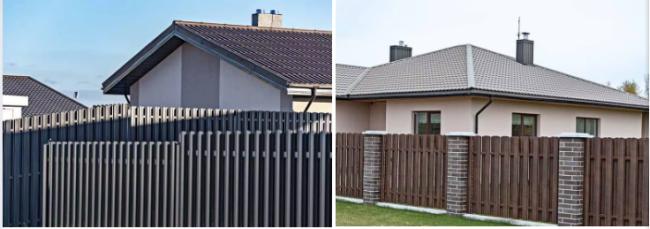

Other type fence:Picket fences are an ideal alternative to wooden fence boards because they are durable and long-lasting.
They do not require annual protection, they are made of high-quality galvanized steel, coated on both sides with a layer of polyester.
