0.6-1.2mm Thickness Galvanized Steel Standing Seam Roof Sheet Roll Forming Machine
0.6-1.2mm Thickness Galvanized Steel Standing Seam Roof Sheet Roll Forming Machine
1. Standing Seam Roof Sheet Roll Forming Machine Technical Parameter
| 1 | Suitable to process |
Color steel and galvanized steel |
| 2 |
Width of the plate
|
As customer need |
| 3 | Thickness of the plate | 0.6-1.2mm |
| 4 | De-coiler | Passive one, can load 5 tons raw material |
| 5 | Rollers for forming | About 20 rollers |
| 6 | Diameter of the roller | Φ76mm |
| 7 | Rolling material | High Grade Steel 45# |
| 8 | Main motor power | 7.5kw |
| 9 | Productivity | About 8-12m/min |
| 10 | Cutting method | Hydraulic cutting |
| 11 | Material of the cutting blade | Cr12Mov |
| 12 | Hydraulic cutting power | 4kw |
| 13 | Processing precision | Within 1.00mm |
| 14 | Control system | Siemems PLC control |
| 15 | Main structure of the machine | 350 H steel |
| 16 | Weight | About 8 T |
| 17 | Dimensions | 5.5*0.95*1.1m |
| 18 | Voltage | 380V 50Hz 3phases,according to your request |
2. Standing Seam Roof Sheet Machine’s Components
| Item | Components Name | Quantity |
| 1 | 5T Passive Decoiler | 1 set |
| 2 | Roll Forming Machine | 1 set |
| 3 | Hydraulic Station | 1 set |
| 4 | PLC control Cabinet | 1 set |
| 5 | Cutting blade | 1 set |
| 6 | Out table | 1 set |
| 7 | Safety cover | 1 pc |
| 8 | Seamer machine | 1 set |

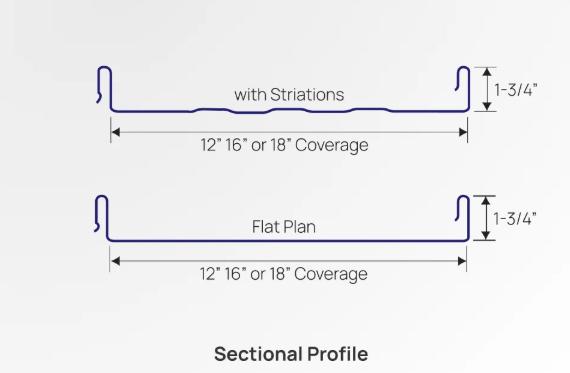

3. Standing Seam Roof Sheet Profile drawing

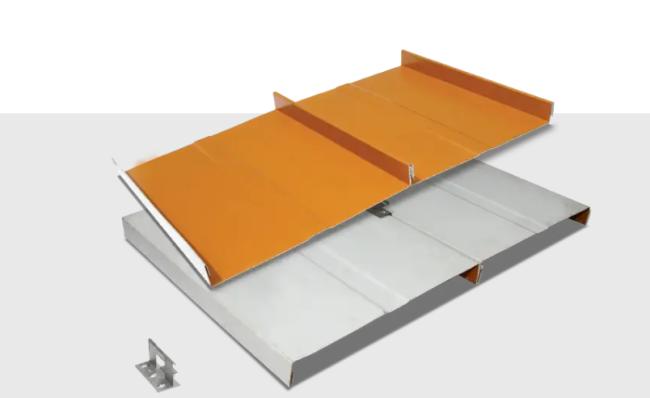

* Architectural/structural integral standing seam panel
* 12″, 16″, and 18″ panel coverage, 1-3/4″ rib height • Gauges: 26 Gauge and 24 Gauge standard
* Snap together panel system, minimum roof slope: 3:12
* Factory applied side lap sealant
* Concealed clip designed for thermal movement
* Accommodates up to 4″ blanket insulation
* Applies over open framing or solid substrate

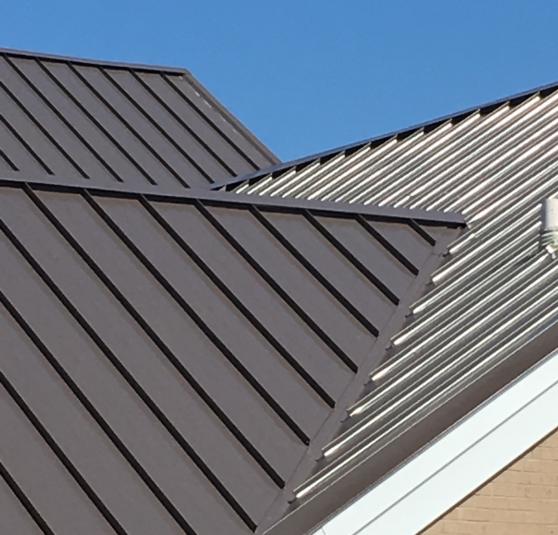

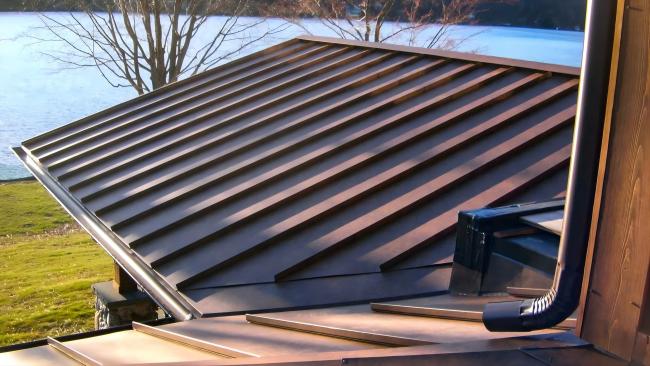

4.Application
Standing Seam panel,which is a durable roofing solution featuring a snap-together system, available in various sizes and finishes.
Designed for easy installation and thermal movement, it offers a reliable and aesthetically pleasing roofing option.
