1.2mm-2.0mm Thickness Galvanized Metal Steel Upright Fence Post Roll Forming Machine
1.2-2.0mm Thickness Galvanized Metal Steel Upright Fence Post Roll Forming Machine
1. Upright Fence Post Roll Forming Machine Technical Parameter
| 1 | Suitable to process |
Color steel and galvanized steel |
| 2 |
Width of the plate
|
As customer need |
| 3 | Thickness of the plate | 1.2-2.0mm |
| 4 | De-coiler | Passive one, can load 3 tons raw material |
| 5 | Rollers for forming | About 18 rollers |
| 6 | Diameter of the roller | Φ75mm |
| 7 | Rolling material | High Grade Steel 45# |
| 8 | Main motor power | 7.5kw |
| 9 | Productivity | About 0-12m/min |
| 10 | Cutting method | Hydraulic cutting |
| 11 | Material of the cutting blade | Cr12Mov |
| 12 | Hydraulic cutting power | 4kw |
| 13 | Processing precision | Within 1.00mm |
| 14 | Control system | Siemems PLC control |
| 15 | Main structure of the machine | 350 H steel |
| 16 | Weight | About 5.5 T |
| 17 | Dimensions | 9.6*0.67*0.89m |
| 18 | Voltage | 380V 50Hz 3phases,or according to your request |
2. Upright Fence Post Machine’s Components
| Item | Components Name | Quantity |
| 1 | 3T Passive Decoiler | 1 set |
| 2 | Roll Forming Machine | 1 set |
| 3 | Hydraulic Station | 1 set |
| 4 | PLC control Cabinet | 1 set |
| 5 | Cutting blade | 1 set |
| 6 | Out table | 1 set |
| 7 | Safety cover | 1 pc |

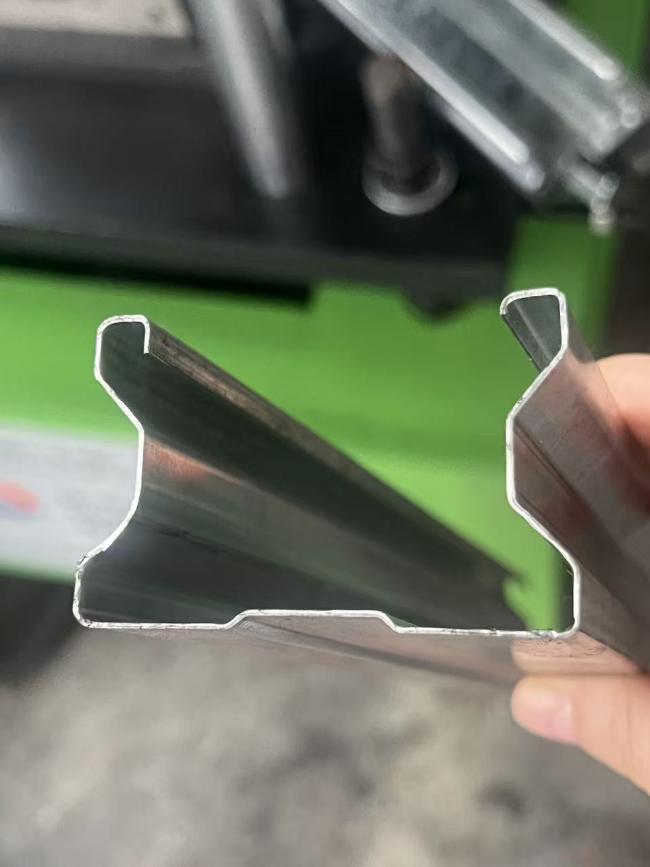

3. Upright Fence Post Profile
It is special making for fence in Australia market.
4.Application

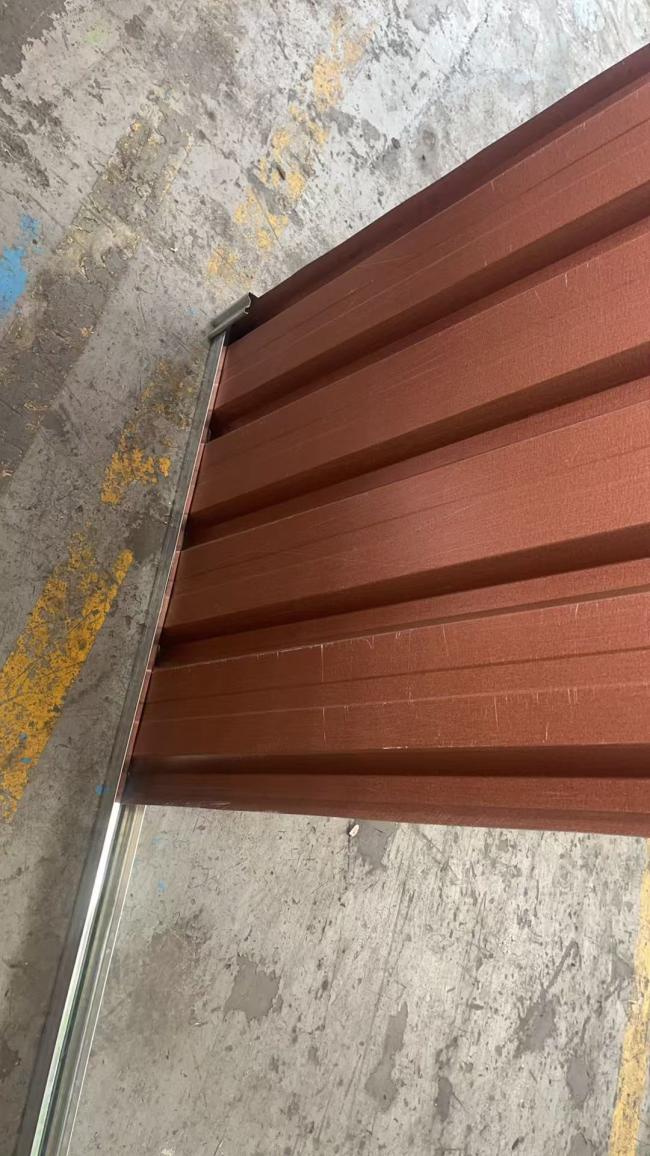

Colorbond Corrugated Iron Fencing: An attractive and durable iron fence made of high-quality steel.
The surface undergoes hot-dip galvanization and powder coating, offering multiple color options such as black, white, and green.
Its common size is 1.8m × 2.4m, suitable for residential fences, yard enclosures, etc.
It features easy assembly, corrosion resistance, and water resistance.
Other type we can make:
