12 Gauge Stainless Steel Solar Mounting System Unslotted C Standing Post Channel Roll Forming Machine
Price:
negotation
MOQ:
1 set
Delivery Time:
95 days
Brand:
Sussman
Product Description
Solar Mounting System Unslotted C Standing Post Channel Roll Forming Machine
1.Unslotted C Standing Post Channel Roll Forming Machine Technical Parameter
| 1 | Suitable to process |
Stainless steel and hot-dip galvanized steel |
| 2 | Width of the plate | As customer need |
| 3 | Thickness of the plate | 1.5-2.5mm |
| 4 | De-coiler | Passive one, can load 5 tons raw material |
| 5 | Rollers for forming | About 18 rollers |
| 6 | Diameter of the roller | Φ75mm |
| 7 | Rolling material | High Grade Steel 45# |
| 8 | Main motor power | 11kw |
| 9 | Productivity | About 10-15m/min |
| 10 | Cutting method | Hydraulic servo following cutting |
| 11 | Material of the cutting blade | Cr12Mov |
| 12 | Hydraulic cutting power | 30kw |
| 13 | Processing precision | Within 1.50mm |
| 14 | Control system | Siemems PLC control |
| 15 | Main structure of the machine | 350 H steel |
| 16 | Weight | About 12 T |
| 17 | Dimensions | 11.5*1.0*1.2m |
| 18 | Voltage | 380V 50Hz 3phases,or according to your request |
2. C Standing Post Channel Machine’s Components
| Item | Components Name | Quantity |
| 1 | 5T Hydraulic Decoiler | 1 set |
| 2 | Roll Forming Machine | 1 set |
| 3 | Hydraulic Station | 1 set |
| 4 | PLC control Cabinet | 1 set |
| 5 | Cutting blade | 1 set |
| 6 | Out table | 1 set |
| 7 | Safety cover | 1 pc |

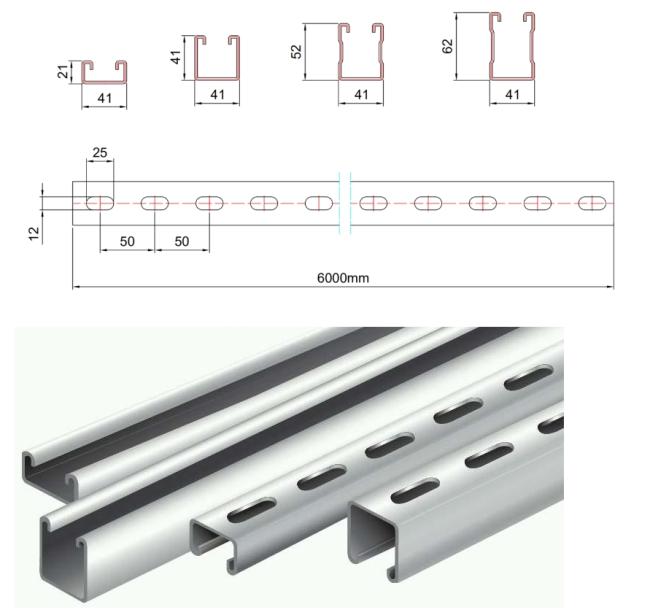

3. C Standing Post Channel Profile Drawing

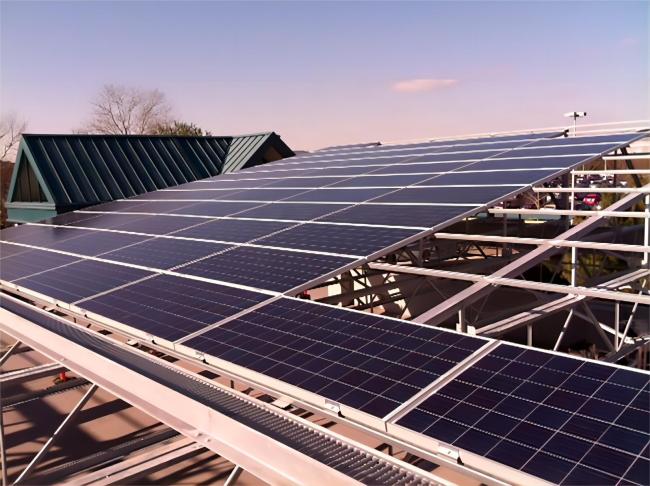

4.Application

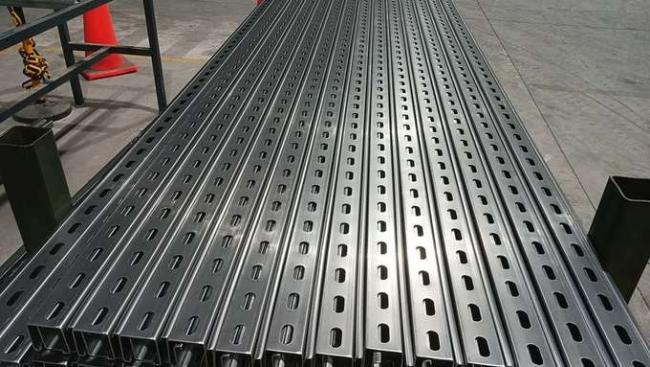

To make c channel strut channel machine, we have two method, one is by press punching with high speed,
other one is to by hydraulic punching with low speed, also can do fly punching, the speed is fast and save costs.
But this machine is customized without punching device.
