0.4-1.2mm Thickness Servo Following Cutting High Speed C U Poste Canall Drywall Roll Forming Machine

Price Negotiable

Price: USD25000-USD35000 Per set

MOQ: 1 set

Delivery Time: 60 days after deposit

Brand: Sussman

Product Description

0.4-1.2mm Thickness Servo Following Cutting High Speed C U Poste Canall Drywall Roll Forming Machine

The METALCON construction system is made up of galvanized steel profiles for different structural applications, partition walls and ceiling construction.The properties and advantages of the Metalcon system allow for a modular construction solution that is easy to expand.

In Mexico market, the sizes for Poste Metalico & Cannal De Amarre 41mm, 63.5mm, 92mm, 152.4mm are popular, thickness Calibre 20-Calibre 26. The machine includes 3 tons passive decoiler, roll forming machine, hydraulic punching, hydraulic cutting, 6 meters passive decoiler.

Technical Data:

project	Specification
Coil material	Material thickness	20-26 mm diameter galvanized coil
Punching device	Hydraulic punching device	1 set
Molding system	Rolling speed	10 m/min and drive chain
	Roller station	Approximately 15 stations were formed.
	Roller material	Gcr15 steel quenching
	Shaft material	45# steel shaft, 75mm diameter
	Main motor power	7.5 kilowatts
Cutting system	Cutting materials	CR12 quenching treatment
	hardness	HRC58-62
	tolerance	±1.5 mm
	Cutting blade	2 sets of cutting blades
Electrical control system	power supply	220V, 60Hz, three-phase, as per buyer's requirements
Electrical control system	control system	PLC with touch screen
	weight	Approximately 5 tons
	driving method	1-inch single chain
	Machine size	Length 7500 mm * Width 800 mm * Height 1000 mm

Machine List:

3-ton passive uncoiler	1 set
Main roll forming machine	1 set
PLC control box	1 unit
Hydraulic cutting device	1 unit
Hydraulic punching device	1 unit
6-meter automatic stacker	1 unit
spare parts	1 package

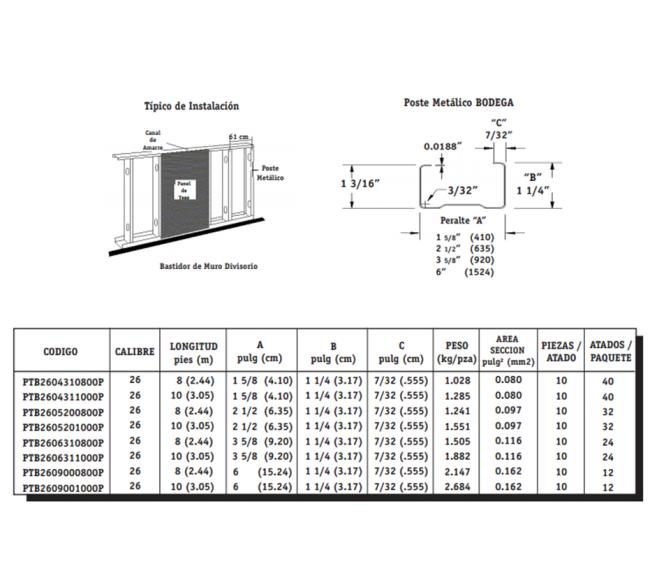

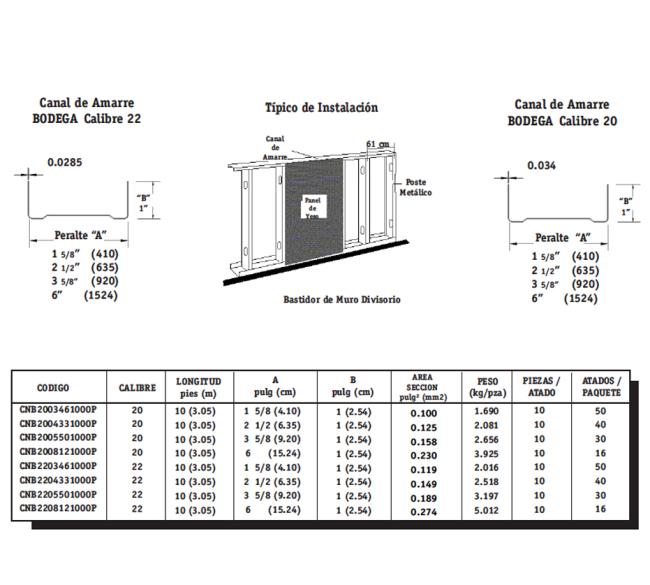

Profile Drawings:

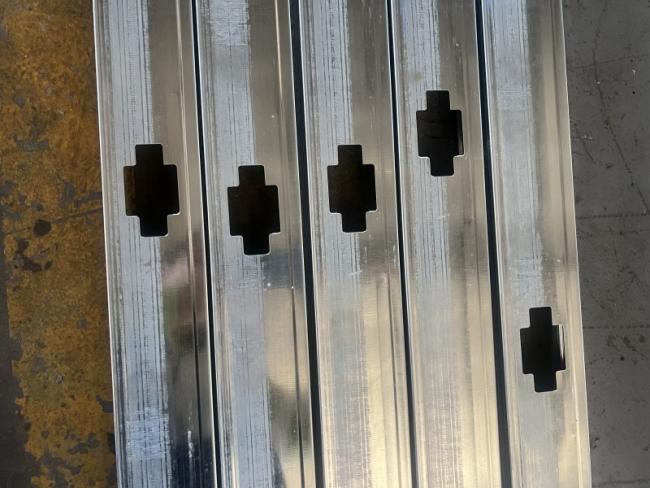

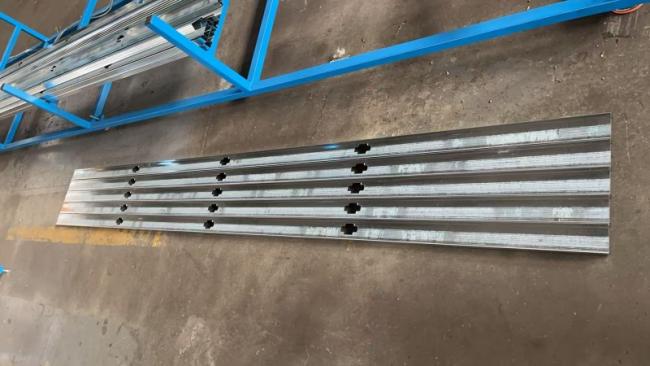

Sample Pictures:

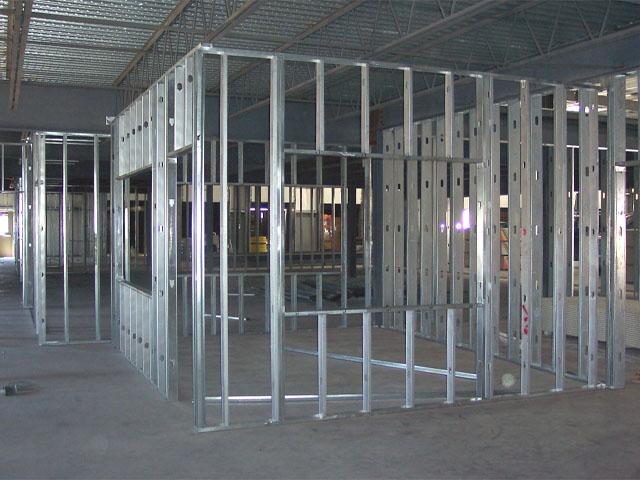

Application:
