Q235 Galvanized Steel 2.0mm Thickness C Shape Storage Rack Shelf Box Beam Roll Forming Machinery


Rack Box Beam Machine Main Specifications

1. Suitable Plate Material: thickness 1.5-2.0mm Galvanize steel or black steel

2. Forming speed: 0~15M/Min

3. Forming machine: about 15 stations+3 stations

4. Material of Roller: Gcr15, Quench HRC58-62 Plated Chrome

5. Material of Shaft: 45# Advanced Steel (Diameter: 76mm), thermal refining

6. Driven system:Chain driven

7. Main Power with reducer: 7.5KW

8. Cutting: Stop cutting

9. The whole machine is controlled by PLC.

10 PLC--Import brand, English and Chinese Language

12. Encoder--Omron, Japan

13. Electric parts--Schneider

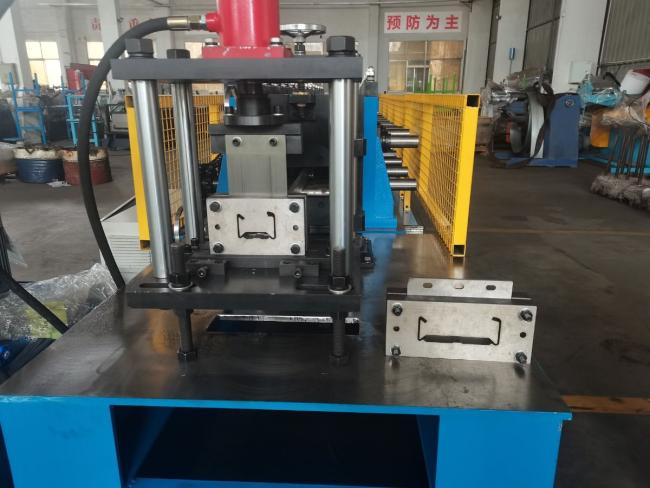

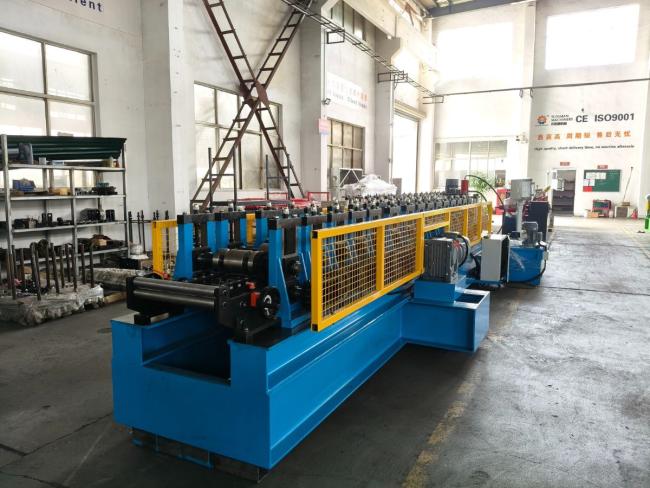

Rack Box Beam Machine’s Components



Working Flow of Rack Beam Machine

Manual de-coiler-- roll forming machine --->hydraulic cutting device --->Out table

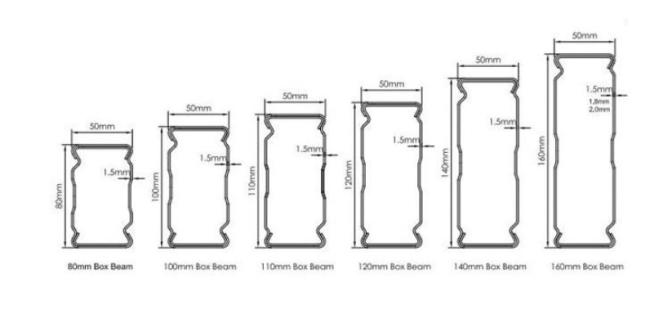

Rack Beam Profile reference

This is a specialized machine that employs advanced seaming technology to securely join two C-sections through a cold-forming process, creating complete closed rectangular tube beams.

The entire process requires no welding, no screws, achieving a permanent connection through mechanical seaming. The resulting beams offer exceptional structural integrity and consistency.

How It Works?

A racking interlock beam is almost never used alone. It's part of a system:

1. Vertical Frames/Columns: Provide vertical load capacity.

2. Diagonal Braces: Provide the primary resistance to racking by creating triangles. They are the "muscle" that resists the force.

3. Racking Interlock Beam: Acts as the "spine" or "nervous system." It ties all the braced frames together, ensuring they work in unison and distributing the load to all the braces efficiently.
