3 Inches Diameter Metal Steel Aluminium Round Rain Downspout Pipe Roll Forming Machine
Price:
negotation
MOQ:
1 set
Delivery Time:
75 days
Brand:
Sussman
Product Description
3 Inches Diameter Metal Steel Aluminium Round Rain Downspout Pipe Roll Forming Machine
1.Round Rain Downspout Pipe Roll Forming Machine Technical Parameter
| 1 | Suitable to process | Aluminium PPGI and galvanized steel |
| 2 | Width of the plate | As customer need |
| 3 | Thickness of the plate | 0.4-0.7mm |
| 4 | De-coiler | Passive one, can load 5 tons raw material |
| 5 | Rollers for forming | About 24 rollers |
| 6 | Diameter of the roller | Φ75mm |
| 7 | Rolling material | High Grade Steel 45# |
| 8 | Main motor power | 7.5kw |
| 9 | Productivity | About 3-5m/min |
| 10 | Cutting method | Hydraulic cutting |
| 11 | Material of the cutting blade | Cr12Mov |
| 12 | Hydraulic cutting power | 7.5kw |
| 13 | Processing precision | Within 1.50mm |
| 14 | Control system | Siemems PLC control |
| 15 | Main structure of the machine | 350 H steel |
| 16 | Weight | About 5 T |
| 17 | Dimensions | 9.5*0.9*1.2m |
| 18 | Voltage | 380V 50Hz 3phases,or according to your request |
2. Round Rain Downspout Pipe Machine’s Components
| Item | Components Name | Quantity |
| 1 | 3T Passive Decoiler | 1 set |
| 2 | Feeding with guide | 1 unit |
| 3 | Roll Forming Machine | 1 set |
| 4 | Hydraulic Station | 1 set |
| 5 | PLC control Cabinet | 1 set |
| 6 | Straighten device | 1 unit |
| 7 | Cutting blade | 1 set |
| 8 | Out table | 1 set |
| 9 | Downpipe elbow bending machine | 1 set |
| 10 | Seaming machine | 1 set |
| 11 | Safety cover | 1 pc |
3. Round Rain Downspout Pipe Profile Drawing
4.Application

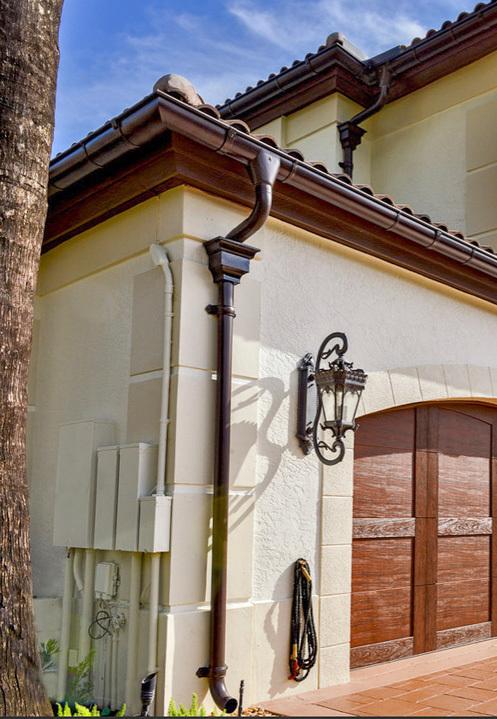

Round downspout is a circular-section pipe used in building drainage systems to discharge rainwater from the roof.
Its core function is to quickly direct rainwater collected on the roof to the ground or underground drainage network,
preventing water accumulation that could erode the building structure.
