0.8-2.0mm Thickness 70-300mm Adjustable Multiple Sizes With Floor Joists LSF LGSF C U Type Light Gauge Roll Forming Machine

Price Negotiable

Price: negotiable

MOQ: 1 set

Delivery Time: 60 days after deposit

Brand: Sussman

Product Description

0.8-2.0mm Thickness 70-300mm Adjustable Multiple Sizes With Floor Joists LSF LGSF C U Type Light Gauge Roll Forming Machine

The Light Steel Framing Machine is the automatic production line. The machine includes decoiler, hydraulic punching, hydraulic cutting, output table, industrial computer and so on. It is a fully automatic wall, floor and roof truss frame design production system using one single dedicated C & U shape profile.

This framing system engineers, designs and produces wall frames, floor truss, and roof trusses complying to all major
international light steel framing building codes: America, British, Euro, Canadian and Australian.ed C & U shape profile.

Main Specifications

size	C70-C300 Premium
thickness	0.8-2.0mm (G300-G550 galvanized coils and Aluzinc)
Standard production speed	300-700 meters per hour
Maximum production speed	1500 m/h
Main motor	15 kW servo motor
Power supplier	As per your request, 220V 60Hz three-phase
Hydraulic station	7.5 kW motor
Hydraulic oil tank capacity	100 liters
Hydraulic cooling	Fan cooling with accumulator
hydraulic pressure	Manual settings
Wireless remote control for main unit	standard
Frame and stamping die	Webpage cutouts, screw holes, chamfers, flange cutouts, service holes, suspension, cutting, floor supports
Product accuracy ±	0.5 mm
CNC inkjet printer	Videojet inkjet printer
size	900010001200mm
weight	8000 kg
color	As per your request, black + red
De Collier	3-ton electric unwinding machine with leveling device

Machine List:

3-ton electric unwinding machine with leveling device	1 set
Main profile forming machine	1 set
Output table	1 unit
CNC inkjet printer -- Videojet	1 unit
Computer control system	1 unit
Safety cover	1 unit
spare parts	1 pack
Stamping dies (1 set for floor support beams, 1 set for structural components)	2 sets

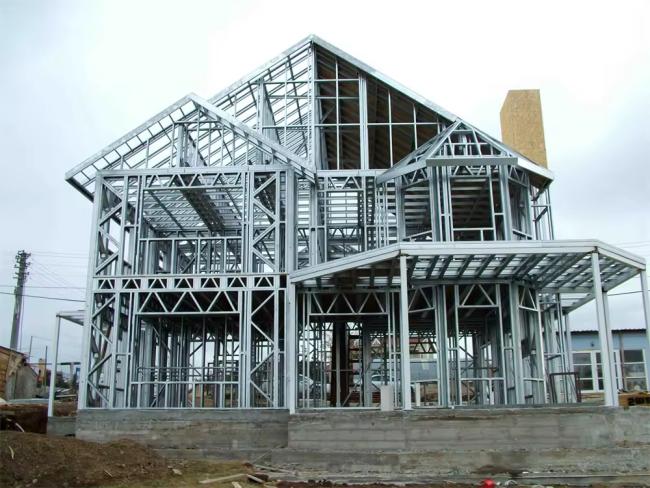

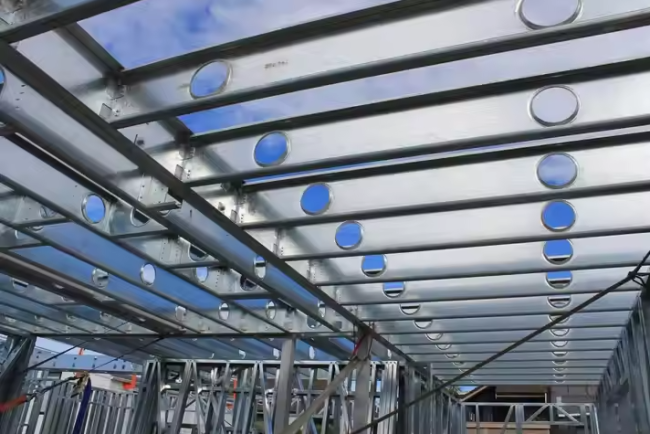

Application:

Softwares:
