100-35 Profile Drawing Galvanized Steel Industrial Roof Wall Sheet Roll Forming Machine

Price Negotiable

Price: negotiable

MOQ: 1 set

Delivery Time: 90 days after deposit

Brand: Sussman

Product Description

100-35 Profile Drawing Galvanized Steel Industrial Roof Wall Sheet Roll Forming Machine

The RN-100/35 (RN 100) sheet is a Ribbed profile on a stationary rolling machine using the best quality steel rolls. Its geometric configuration is ideal since it has a double anti-siphon channel which provides excellent drainage capabilities. Due to its high structural resistance, it can be specified on industrial warehouse roofs where structural capacity is required, in addition to designing with low slopes (minimum slope of 6%).
In addition to being widely used on roofs, it is also recommended for use on facades due to its versatility and lightness in
installation.

Advantages RN-100/35

It has an excellent drainage capacity due to its 3.50 cm camber and its exclusive design that involves the double anti-siphon channel.

Great structural resistance, ideal for the construction of high-specification industrial buildings.

RN-100/35 Sheet Characteristics

Excellent structural capacity and drainage

It has a double anti-siphon channel.

Technical parameter:

Item NO	Description	Offered specification
1.0	Roll forming machine
1.1	Rolling speed	12-15m/min(not include cutting time)
1.2	Rolling thickness	0.3mm-0.8mm
1.3	Raw material	Color painted coils, Aluminium, Zinc, Galvanized
1.4	Main Motor	7.5KW
1.6	Dimension	About 8500×1600×1200(mm)
1.7	Roller stations	About 20 stations
1.8	Roller material	45#forge steel, coated with chrome
1.9	Shaft diameter	Φ76mm
1.10	Transmission	By chain 1.2 inch
1.11	Material of chain	45# forged steel with frequency quenching, 12A
1.12	Material of cutting	Cr12Mov with quench HRC58-62°
1.13	Tolerance	10m+-1.5mm
1.14	Hydraulic station	4kw

working flow

Profile Drawing

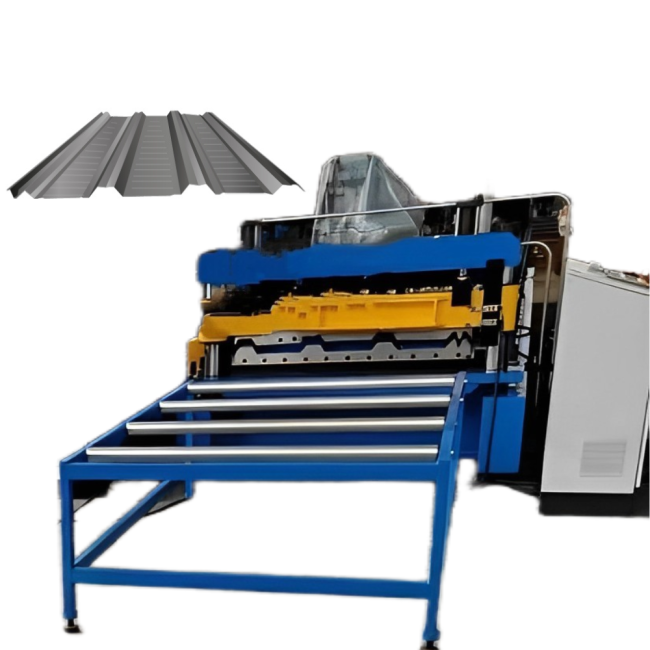

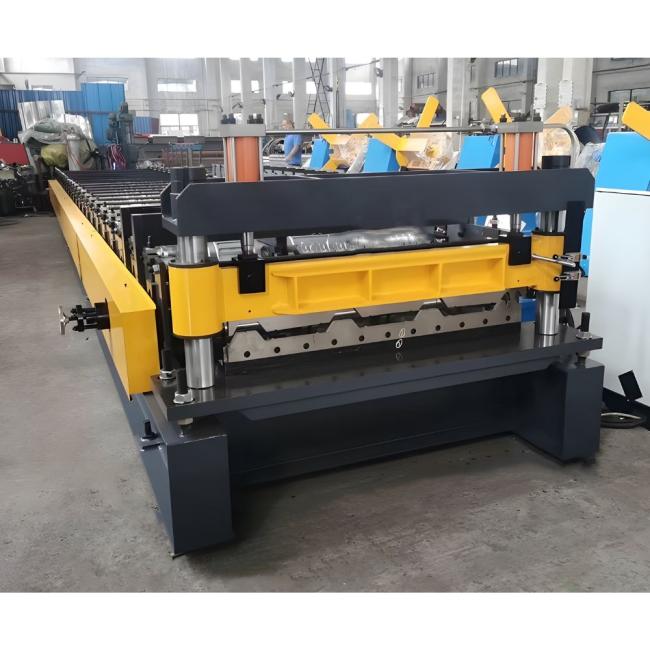

Machine Shows

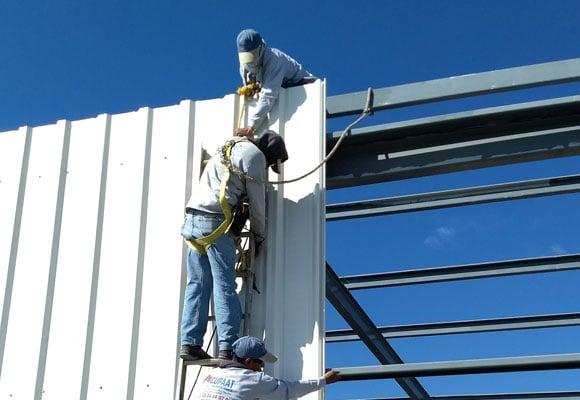

Application:

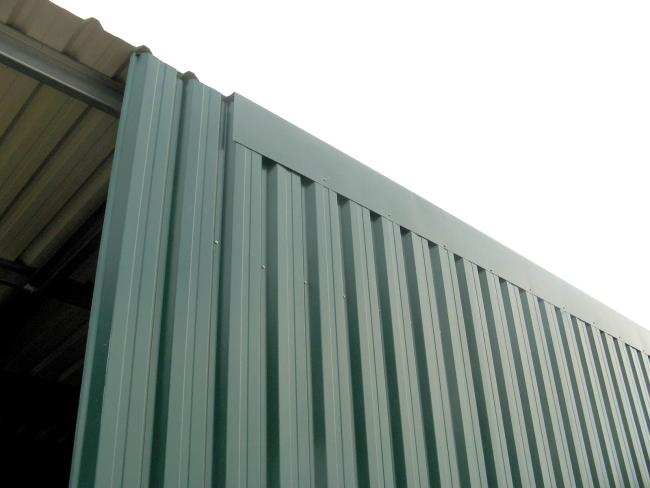

RN100 35 sheet is designed for use in the construction of walls or facades . Its double anti-siphon system prevents the accumulation of water, hail and snow, offers support to the structures.
