0.8-1.2mm 70mm Dia Galvanized Steel Awning Tube Roll Forming Machine
0.8-1.2mm 70mm Dia Galvanized Steel Awning Tube Roll Forming Machine
Machine Technical Data
|
Feeding materials |
0.8-1.2mm, galvanized steel |
|
Machine frame type |
Cast iron structure |
|
Forming station |
24 stations roller |
|
Main shaft material |
45# Round steel, heat treatment,HRC40-45,Φ70mm |
|
Rollers material |
Gcr15,ball bearing steel, quenching HRC 52-55C°, chrome coating 0.05mm |
|
Bearing |
Chinese famous brand/HRB brand |
|
Transducer |
YASKAWA ,Japan |
|
Operation system |
Operation cabinet + Emergency remote control unit |
|
Encode |
Omron, Japan brand |
|
Other electricals |
Schneider and Omron brand. |
|
Line of dimension(L-W-H) |
Approx 9500×900x1300mm |
|
Brand |
Chinese famous brand |
|
Transmission |
Chain |

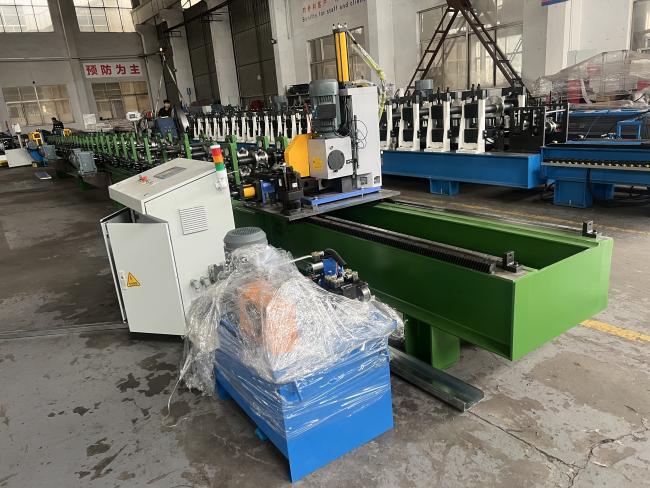

Production Line Machine List
|
Serial No. |
Commodity & Description |
Quantity |
|
1 |
3T hydraulic uncoiler |
1 set |
|
2 |
Feeding |
1 set |
|
3 |
Main roll forming machine |
1 set |
|
4 |
Output table |
1 set |
|
5 |
Main drive chain |
1 set |
|
6 |
Fly saw cutting |
1 set |
|
7 |
Controlling system (including cabinet) |
1 set |
|
8 |
Water cooling system |
1 set |
|
9 |
Safety cover |
2 sets |

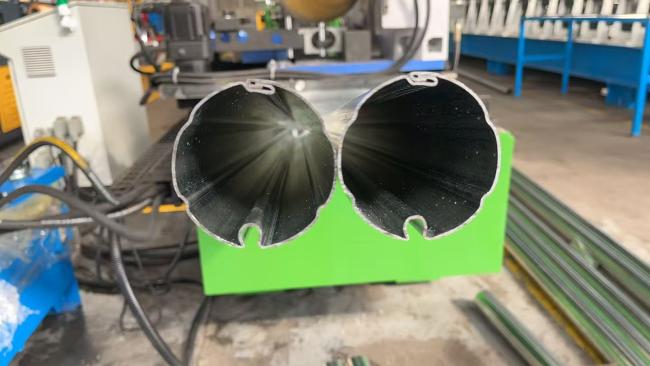

Standard Profile
Steel roller tube for awnings is the most popular tube used for awnings or Roller blind. It’s strong galvanized or Zincalume finished without rusted even used in outdoor environment.
You can have different options for the roller tubes, such as galvanized tubes, 50mm tube, 60mm tube, 63mm tube, 65mm tube, 70mm tube, 78mm tube, 80mm tube, 85mm tube etc. And many sizes can make in one machine, to change the size by cassette
Application
Roller tube used for retractable arm awnings, window drop arm awning, window vertical roller awnings, french awnings, roof awnings, retractable PVC roof pergola, adjustable louvered pergola and zip roller blind.
