New Portable SSR Type Hydraulic Roladora Lamina KR18 Standing Seam Roll Forming Machine

Price Negotiable
Price: negotiable
MOQ: 1 SET
Delivery Time: 50 days after deposit
Brand: Sussman
Product Description

New Portable SSR Type Hydraulic Roladora Lamina KR18 Standing Seam Roll Forming Machine





KR18 KR24 Movable Standing Seam Roll Forming Machine



La lamina galvanizada engargolable KR-18 (KR18) , se utiliza para la fabricación de techos en naves industriales, es una lámina fabricada en obra que proporciona la más alta hermeticidad y no ofrece restricciones en largo, reduce el riesgo de filtraciones por su sistema de fijación oculta con una alta resistencia estructural.


This machine is portable, the customer can put the machine on the truck and take the machine to the construction.

1. Specification
Size: approximately 4.5*1.0*1.2M
Weight: about 3.0 T
Axle and wheels: two axles, four wheels
Towing: adjustable draw bar height from 80mm-160mm with 80mm round hitch.
Working speed: Forming:10-13 m/min
Material of rollers: Good 45# steel, rigid chrome coated
Material of roller shafts: 45# steel, quenched HRC 58-62
Material of cutting blade: Cr12 steel
Forming station: 11 steps
Power plant:gasoline engine 24HP
Battery:12 Volt DC*2
Drive System: All hydraulic pump with engine
Drive/Forming Rollers: Chain drive
Host big frame structure H Frame
Cutting type: Hydraulic cutting
Manual Decolier:Carrying capacity 5 tons of steel coil
Working procedures: feeding-forming-cutting

2, Spare Part

De-coiler
1 set
Manual Super plier
1 set
Driving chains
1 set
Chain half section
5
Chain whole section
3
Polish wax
1


Profile Drawing:

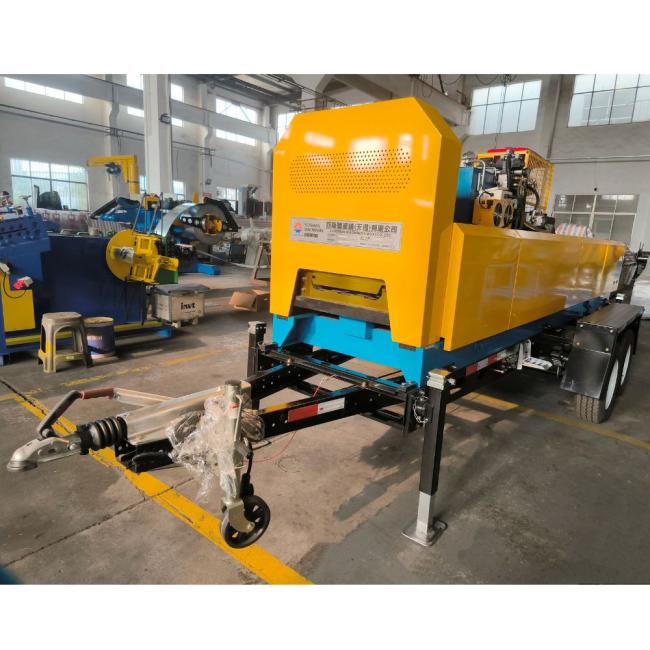

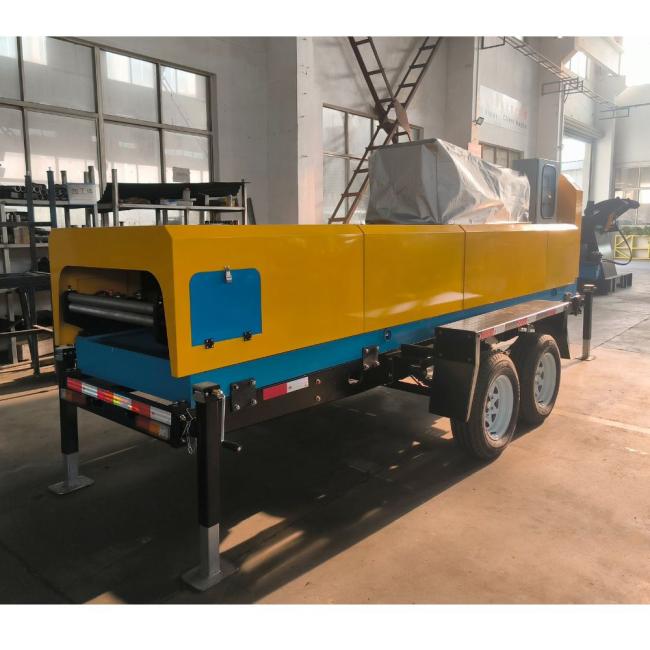

Machine Shows:







Application:





Portable metal roof roll forming machine export standard packages details

1.Nude,with waterproof cloth and stow-wood.Imported computer control system packed with waterproof cloth and card board.
2.This producing line is maintained free of charge for 24 months.When the machine is used in China, we will install and debug the machine for free; if it is used at abroad,we will send the professional technician to debug.Buyers should take all the fees for technicians travelling abroad.
3.All the parts in the roll forming machine is free to maintain all the life,if in 24 months our company bear the cost for
exchanged the broken part like the new parts cost and express cost,if more than 24 month,we also free to maintain the broken parts ,but for send the new parts,the buyer need bear the express cost.
