0.6-1.5mm Galvanized Steel 70mm Diameter Awning Pipe Tube Roll Forming Machine
Price:
negotiable
MOQ:
1 set
Delivery Time:
75days
Brand:
Sussman
Product Description
0.6-1.5mm Galvanized Steel 70mm Diameter Awning Pipe Tube Roll Forming Machine
Awning Tube Roll Forming Machine comprised of 3T manual uncoiler, feeding guiding, roll forming machine, straighten device, fly saw cutting, electrical control system, output table.
Technical Parameter:
1. Material thickness:0.6-1.5mm galvanized coils
2. Forming speed: 0-10M/min (EXCLUDING CUTTING STOP TIME)
3. Forming roller: about 30 stations
4. Main motor power: 7.5KW*2
5. Roller material: 45# forged steel, surface coated with chrome
6. Main shaft material: 45# steel
7. Main axis dia.: ￠60mm
8. Hydraulic cutting pressure: 10-12Mpa
9. Cutting method: saw cutting, cutting after roll forming.
10. Electrical controlling system: Whole line adopted PLC control, cut to length tolerance≤2mm
11. Water cooling system
13. Way of Drive: Chain
2. Forming speed: 0-10M/min (EXCLUDING CUTTING STOP TIME)
3. Forming roller: about 30 stations
4. Main motor power: 7.5KW*2
5. Roller material: 45# forged steel, surface coated with chrome
6. Main shaft material: 45# steel
7. Main axis dia.: ￠60mm
8. Hydraulic cutting pressure: 10-12Mpa
9. Cutting method: saw cutting, cutting after roll forming.
10. Electrical controlling system: Whole line adopted PLC control, cut to length tolerance≤2mm
11. Water cooling system
13. Way of Drive: Chain
Machine List:
| Serial No. | Commodity & Description | Quantity |
| 1 | 3T manual un-coiler | 1 set |
| 2 | feeding guiding | 1 set |
| 3 | Main roll forming machine with water cooling | 1 set |
| 4 | Output table | 1 set |
| 5 | Main drive | 1 set |
| 6 | Fly saw cutting | 1 set |
| 7 | Control box | 1 set |
| 8 | Water cooling system | 1 set |

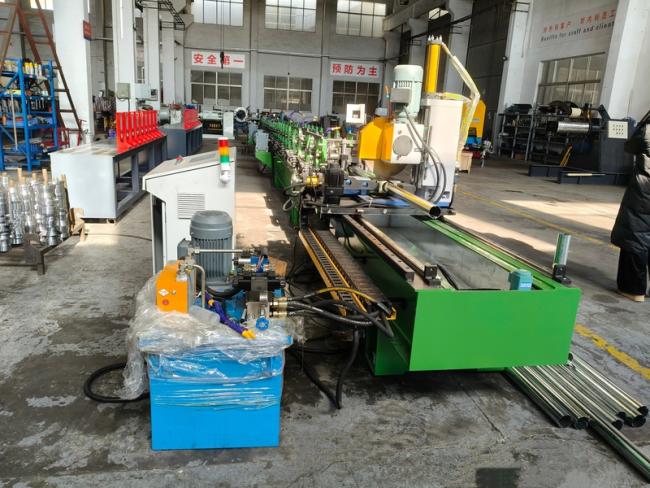

Working Flow:
Uncoiling – feed Guiding–Roll forming –fly saw cutting –Run-out table

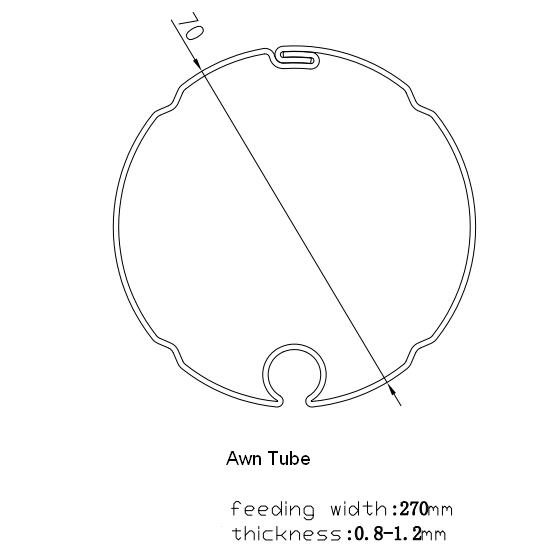

Profile Drawings:

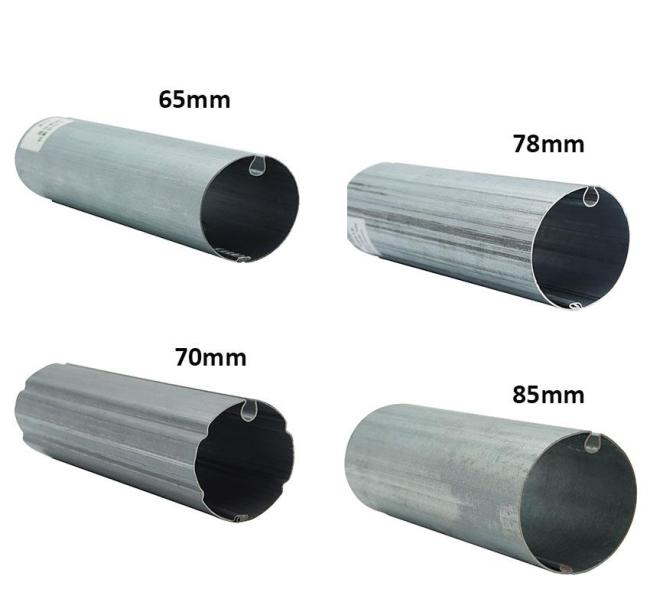

We also can make the sizes 65mm, 70mm, 78mm, 85mm by changing cassettes
Application:
An awning roller tube is used to roll, support, and store the awning fabric when you extend or retract an awning.
1. Rolling the awning in and out
- It’s the core moving part that allows the awning to extend and retract smoothly
- Works with either:
- Manual crank systems
- Motorized systems
2. Supporting the fabric
- Keeps the fabric tight, aligned, and evenly rolled
- Prevents sagging or wrinkling
3. Housing the mechanism
- Often contains:
- Springs (for manual awnings)
- Or connects to a motor (for electric awnings)
4. Attaching accessories
- Many tubes have tracks to hold:
- LED light strips
- Sun shades or add-ons
