Garage Door System 1.5 & 2 Inches Punched Angle/Perforated Garage Door Angle Track Rail Roll Forming Machine

Price Negotiable

Price: negotation

MOQ: 1 set

Delivery Time: 95 days

Brand: Sussman Machinery

Product Description

2.0-2.8mm Galvanized 1.5 & 2 Inches Punched Angle Perforated Garage Door Angle Track Roll Forming Machine

1.Garage Door Angle Track Roll Forming Machine Technical Parameter

1	Suitable to process	Galvanized steel
2	Width of the plate	As customer need
3	Thickness of the plate	2.0-2.8mm
4	De-coiler	2 tons electric decoiler with leveling device
5	Rollers for forming	About 14 rollers
6	Diameter of the roller	Φ75mm
7	Rolling material	High Grade Steel 45#
8	Main motor power	11 kw
9	Productivity	About 0-12m/min
10	Cutting method	Hydraulic cutting
11	Material of the cutting blade	Cr12Mov
12	Hydraulic cutting power	7.5kw
13	Processing precision	Within 1.50mm
14	Control system	Siemems PLC control
15	Main structure of the machine	350 H steel
16	Weight	About 5.0 T
17	Dimensions	7.50.81.1m
18	Voltage	220V 60Hz 3phases,or according to your request

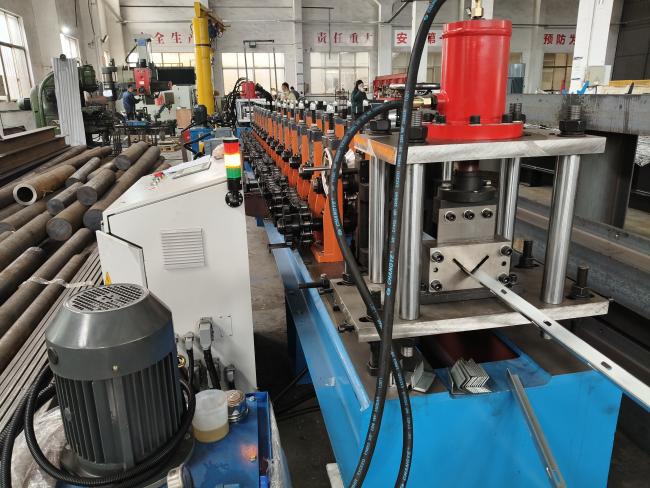

2. Angle Track Machine’s Components

Item	Components Name	Quantity
1	2 tons electric decoiler with leveling device	1 set
2	Punching dies	6 sets
3	Roll Forming Machine	1 set
4	Hydraulic Station	1 set
5	PLC control box	1 set
6	Cutting blade	1 unit
7	Passive out table	1 unit

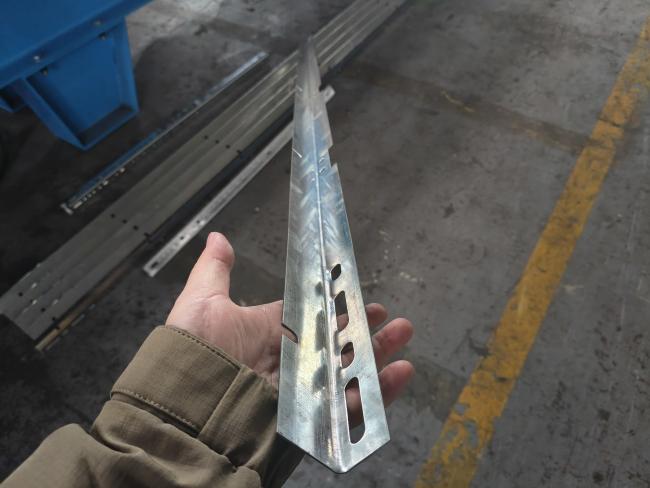

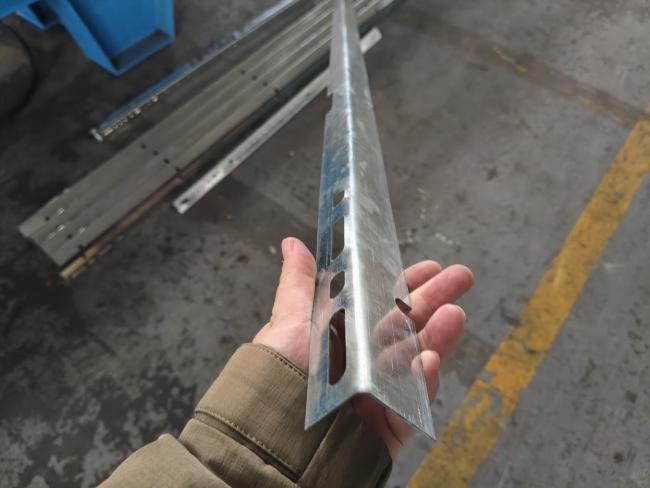

3. Angle Track Rail Profile Samples

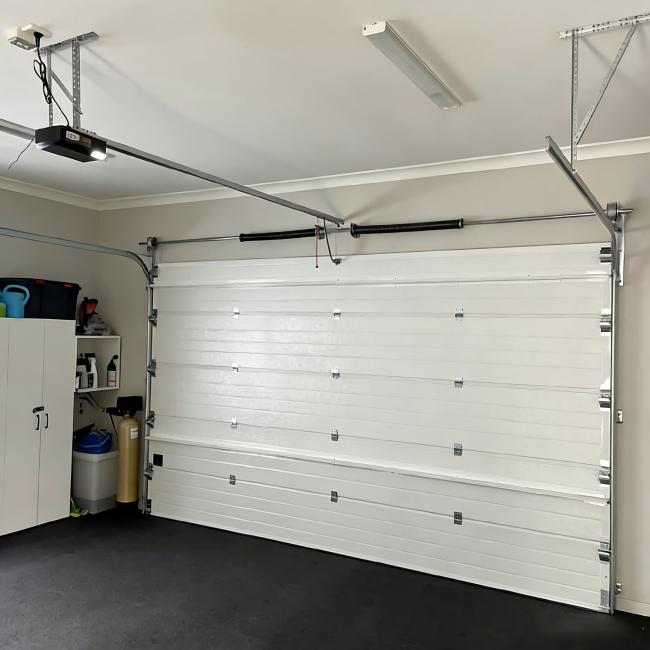

4.Appliction:

Multi use angle iron for bracing garage door tracks to ceiling. Use also for hanging motors. Heavy gauge.

Multiple punched holes to suit several and sometimes tricky measurements.
Very handy product to have. Although this is its main use, we sell to many customers for different bracing

and shelving applications and installs.
