Colombia 1.5--2.0mm Thickness Carbon Steel C 94*32mm Purlin Roll Forming Machine
Price:
negotation
MOQ:
1 set
Delivery Time:
95 days
Brand:
Sussman Machinery
Product Description
Colombia 1.5--2.0mm Thickness Carbon Steel C 94*32mm Purlin Roll Forming Machine
1.C 94*32mm Purlin Roll Forming Machine Technical Parameter
| 1 | Suitable to process | Galvanized steel,Carbon steel |
| 2 | Width of the plate | As customer need |
| 3 | Thickness of the plate | 1.5-2.0mm |
| 4 | De-coiler | Passive one, can load 3 tons raw material |
| 5 | Rollers for forming | About 13 rollers |
| 6 | Diameter of the roller | Φ75mm |
| 7 | Rolling material | High Grade Steel 45# |
| 8 | Main motor power | 5.5kw |
| 9 | Productivity | About 0-12m/min |
| 10 | Cutting method | Hydraulic cutting |
| 11 | Material of the cutting blade | Cr12Mov |
| 12 | Hydraulic cutting power | 4kw |
| 13 | Processing precision | Within 1.50mm |
| 14 | Control system | Siemems PLC control |
| 15 | Main structure of the machine | 350 H steel |
| 16 | Weight | About 3.5 T |
| 17 | Dimensions | 6.5*0.8*1.0m |
| 18 | Voltage | 220V 60Hz 3phases,or according to your request |

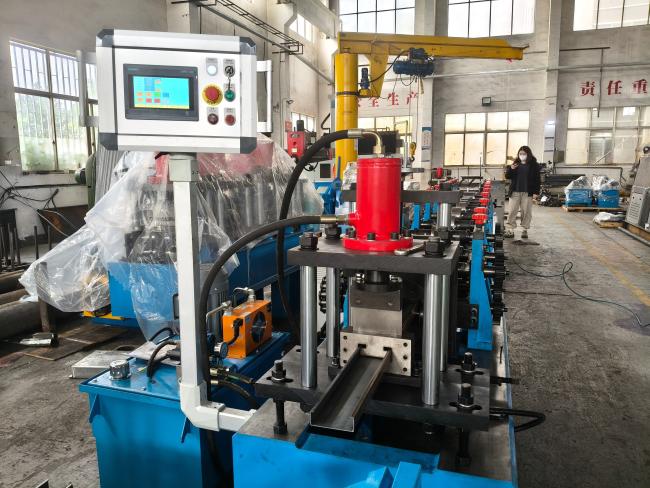

2. C 94*32mm Purlin Machine’s Components
| Item | Components Name | Quantity |
| 1 | 3T Passive Decoiler | 1 set |
| 2 | Roll Forming Machine | 1 set |
| 3 | Hydraulic Station | 1 set |
| 4 | PLC control box | 1 set |
| 5 | Cutting blade | 1 unit |
| 7 | Passive out table | 1 unit |

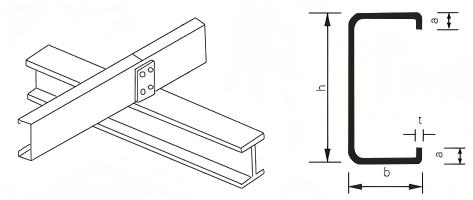

3. C 94*32mm Purlin Profile Drawing

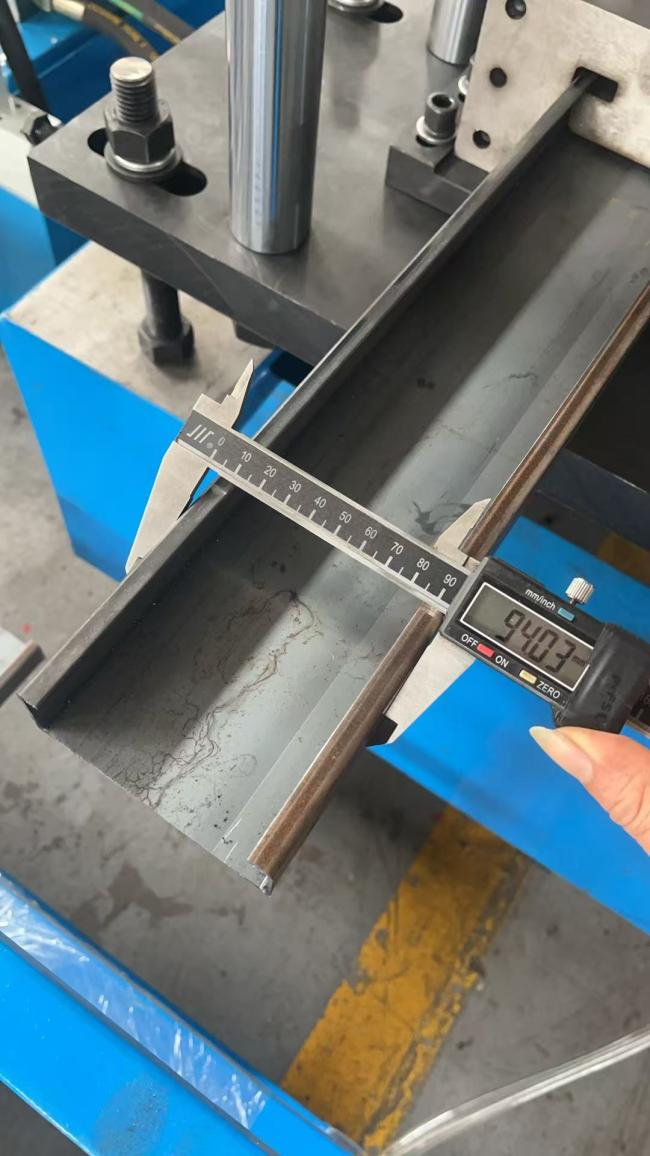

3.Samples:

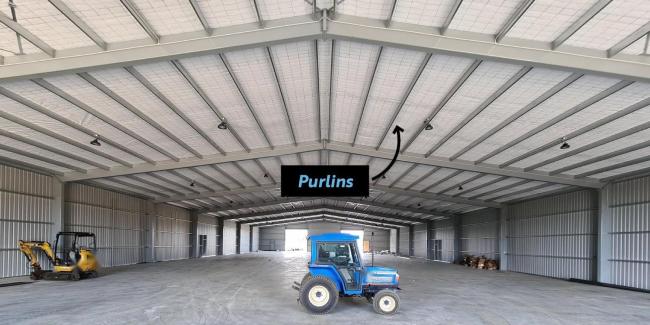

4.Appliction:
C purlin machine – the perfect solution for all your purlin manufacturing needs. Featuring 13 roll forming stations
driven by the chain, this machine is engineered for high stability and production capacity, ensuring that you can
meet your production targets with ease. Its special design also makes it incredibly easy to operate, allowing you to
increase efficiency and reduce downtime.
Welcome to consult us,we will provide you with the most professional solution.
