1.5-2.0mm Thickness Galvanized Steel 2 Inches Sectional Garage Door Track Vertical Track Roll Forming Machine
Price:
USD25000-USD35000 Per Set
MOQ:
1 set
Delivery Time:
Shipped in 60 days after payment
Brand:
SUSSMAN
Product Description
1.5-2.0mm Thickness Galvanized Steel 2 Inches Sectional Garage Door Track Vertical Track Roll Forming Machine

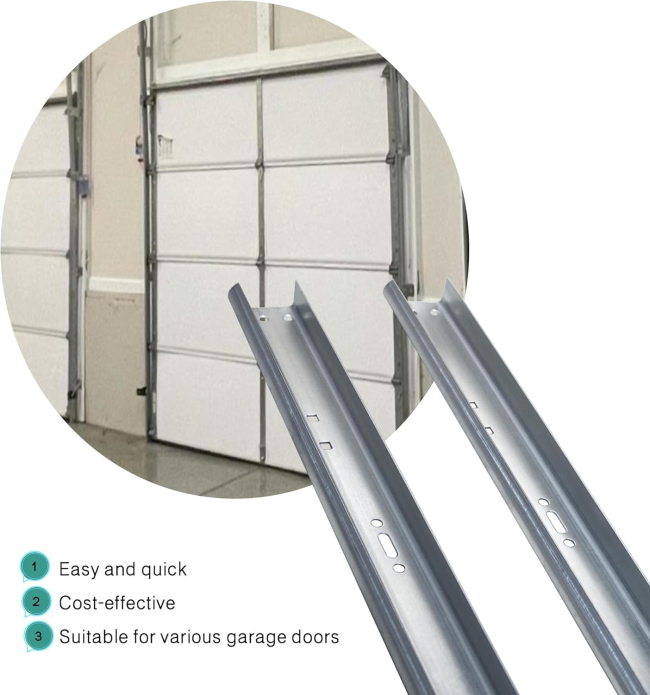

What “2-inch vertical track” means
- “2-inch” refers to the roller size compatibility (standard residential doors use 2" tracks/rollers).
- These are the straight vertical rails mounted on each side of your garage door opening.
- They guide the door from closed to the curved/horizontal track.
2 inches garage door tracktechnical Data:
| Items | Specifications | |
| Material of coil | Material Thickness | 1.5-2 mm galvanized steel |
| De-coiler | 3 tons electric decoiler | |
| Forming system | Rolling Speed | About 3-4 meters /minute |
| Roller Stations | About 13 stations | |
| Roller Material | Gcr15 Steel with quenching 60mm shaft | |
| Maim Motor Power | 7.5 kw servo motor | |
| Hydraulic cutting Power | 7.5 kw | |
Cutting | Material Of Cutting | CR12 with quench treatment |
| Hardness | HRC58-62 | |
| Tolerance | +-1.5mm | |
| Electrical control system | Electric Source | 220V, 60HZ,3 phase or 380V |
| Control System | PLC as list in the note | |
| Weight | About 3.5 tons | |
| Way Of Drive | Chain |
Machine List:
| S.N | Name | Quantity |

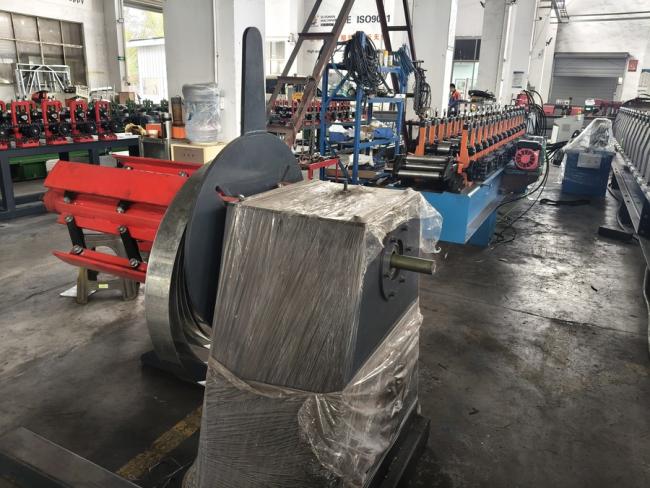

| 1 | 3 tons automatic de-coiler | 1 set |
| 2 | Feeding with guide | 2 sets |

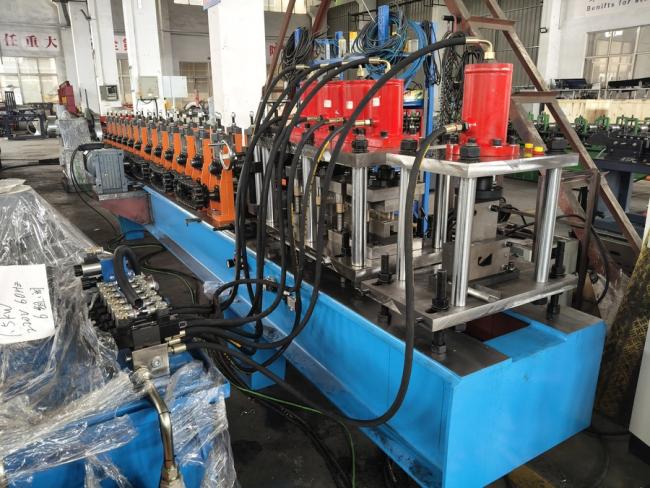

| 3 | Main roll forming machine | 1 set |
| 4 | Hydraulic punching device with 5 punching dies | 1 set |
| 5 | Hydraulic Cutting | |
| 6 | PLC Control box | 1 unit |
| 7 | Hydraulic Station | 1 unit |
| 8 | Safety cover | 1 set |

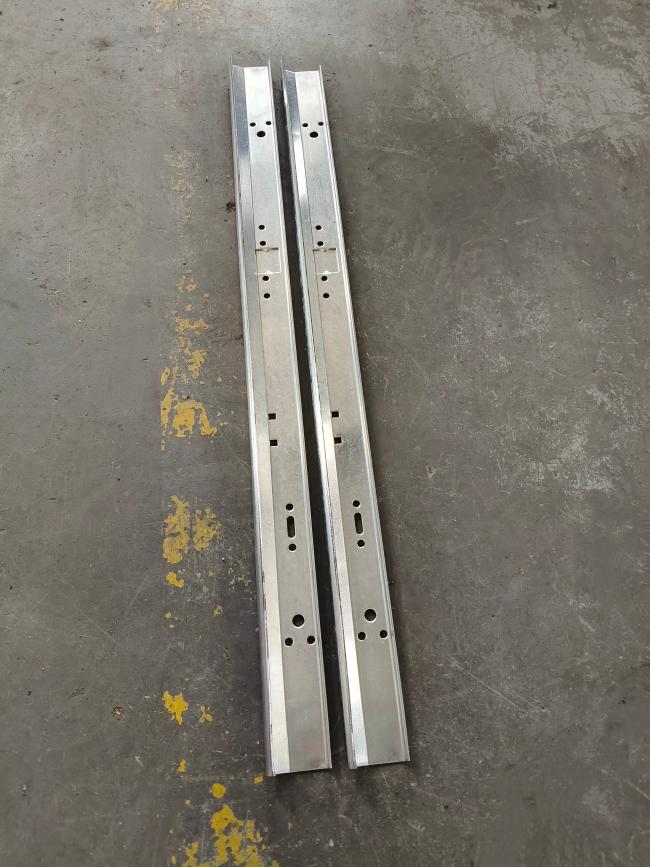

Profile Drawing:
Sussman Machinery can customized garage door track as the client's request

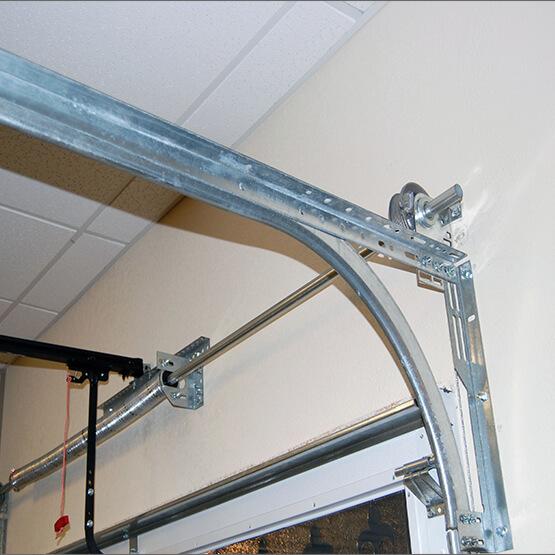

Application:
1. Residential Garage Doors
Most common application:
- Single-car garage doors
- Double-car garage doors
- Insulated or non-insulated sectional doors
2. Garage Door Repairs and Replacements
Used when:
- Existing track is bent or damaged
- Rollers keep coming off track
- Door is misaligned
- Replacing worn-out track sections
Common repair uses:
- Full left/right track replacement
- Single side replacement
- Custom retrofit repairs
