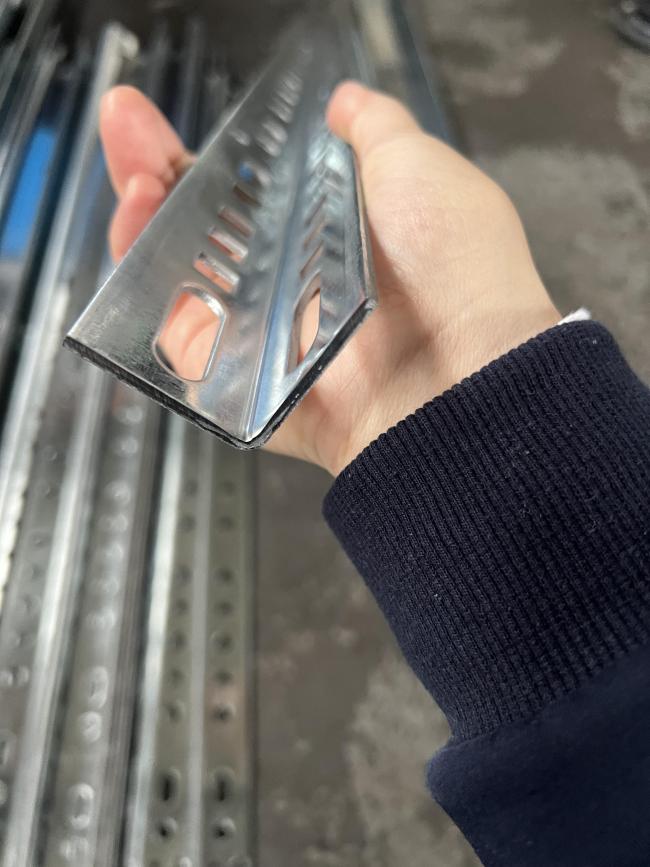

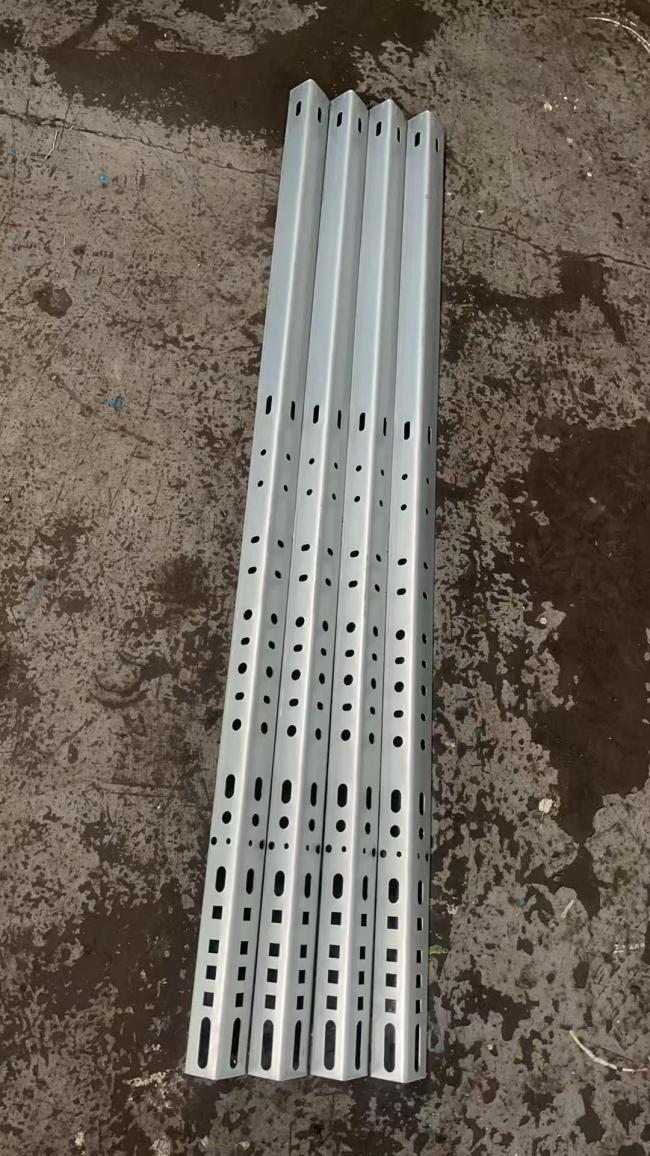

A Garage Door Track Angle (often called horizontal track angle, track support angle, or perforated angle) is a structural steel angle used to support and suspend the horizontal tracks of a sectional garage door from the ceiling or wall framing.

It does not guide rollers directly like the track itself. Instead, it acts as the support framework that holds the track in proper alignment and carries part of the door load.

What it does

Track angle is used to:

• Support horizontal garage door tracks
• Keep tracks level and aligned
• Provide mounting points for hangers and brackets
• Help distribute door weight and operating loads
• Reduce track movement and vibration during door operation


Profile Drawing:




Application:

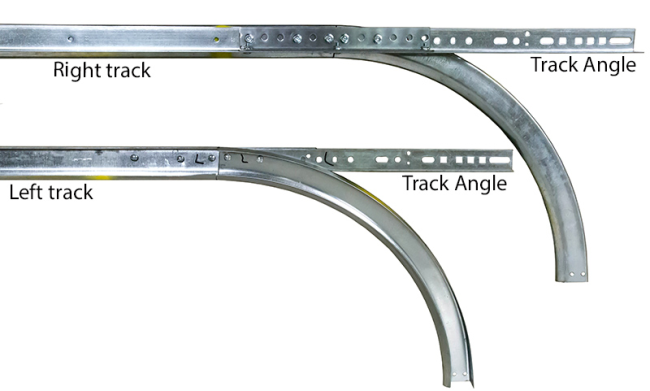

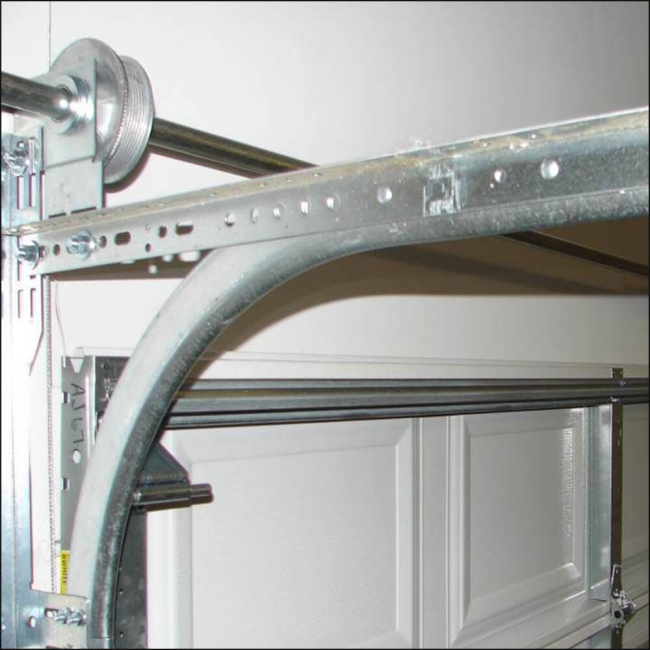

Its primary application is supporting the rear horizontal tracks that run along the ceiling.

Used to:

• Suspend tracks from joists
• Stabilize track spacing
• Maintain proper door travel

Without correctly installed track angles, doors may bind or run out of alignment.




Machine photo


A Garage Door Track Angle is a structural support component used to suspend and stabilize garage door tracks. Its main applications include:

• Supporting horizontal tracks
• New installations
• Repairs and reinforcement
• High-lift and commercial door systems

It is essential for proper alignment, durability, and safe operation of sectional garage doors.
