2.0mm-2.8mm Thickness Galvanized Steel 1-1/2" x 1-1/2" Sectional Garage Door Angle Track Roll Forming Machine
2.0mm-2.8mm Thickness Galvanized Steel 1-1/2" x 1-1/2" Sectional Garage Door Angle Track Roll Forming Machine
A Garage Door Track Angle is a structural support component used to suspend and stabilize garage door tracks. Its main applications include:
- Supporting horizontal tracks
- New installations
- Repairs and reinforcement
- High-lift and commercial door systems
It is essential for proper alignment, durability, and safe operation of sectional garage doors.
Technical Data:
| Name | Items | Specifications |
| Material of coil | Material Thickness | 2.0mm-2.8mm galvanized sheet |
| Punching | Type | 6 sets of punching moulds |
| Forming system | Rolling Speed | About 3-5 meters/minute |
| Roller Stations | About 14 stations | |
| Roller Material |
Gcr15 Steel with quenching 60mm shaft |
|
| Maim Motor Power | 11 kw | |
| hydraulic punching station | 7.5 kw | |
|
Cutting |
Material Of Cutting | CR12Mov with quench treatment |
| Hardness | HRC58-62 | |
| Tolerance | +-1.5mm | |
| Electrical control system | Electric Source |
220V, 60HZ,3 phase or 380V |
| Control System | PLC control system | |
| Weight | About 5 tons | |
| Way Of Drive | Chain Drive |
Machine List:
| 3 tons automatic decoiler with leveling | 1 set |
| Servo Feeder | 1 set |
| Hydraulic punching device( including 6 sets punching dies) | 1 set |
| Main roll forming machine | 1 set |
| PLC Control box | 1 unit |
| 4 meters passive output table | 1 unit |
| Hydraulic cutting device | 1 unit |
| Safety cover | 1 unit |
| Spare parts | 1 Package |
Profile Drawing:
Common options include:
- Perforated steel angle (most common)
- Galvanized punched angle
- Heavy-duty structural angle for commercial doors
Typical sizes may include:
- 1-1/4" x 1-1/4"
- 1-1/2" x 1-1/2"
- 2" x 2"
Application:
Its primary application is supporting the rear horizontal tracks that run along the ceiling.
Used to:
- Suspend tracks from joists
- Stabilize track spacing
- Maintain proper door travel
Track angles are standard components in new installations for:
- Residential sectional doors
- Commercial overhead doors
- High-lift and vertical-lift systems
They are often cut and configured to fit each installation.

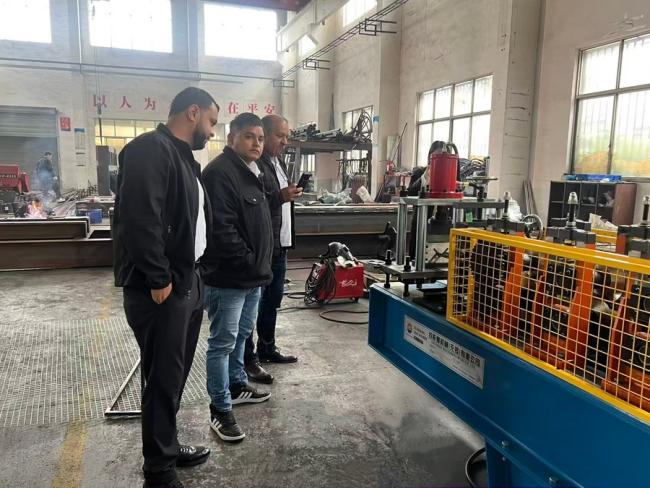

Machine photo
