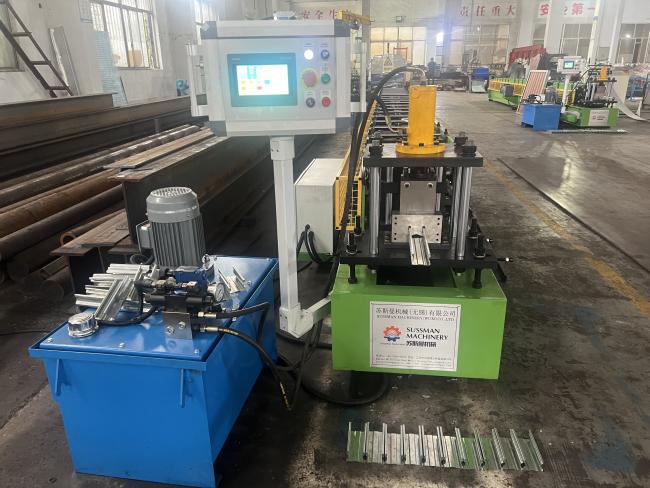

Australia Popular Color Painted Steel C65*42mm Profile Fence Post Channel Roll Forming Machine
Price:
negotation
MOQ:
1 set
Delivery Time:
95 days
Brand:
Sussman Machinery
Product Description
Australia Popular Galvanized Steel Fence Post C65*42mm Profile Channel Roll Forming Machine
1.Fence Post C65*42mm Roll Forming Machine Technical Parameter
| 1 | Suitable to process | Color painted steel G550 |
| 2 | Width of the plate | As customer need |
| 3 | Thickness of the plate | 0.8-1.0mm |
| 4 | De-coiler | Passive one, can load 3 tons raw material |
| 5 | Rollers for forming | About 21 rollers |
| 6 | Diameter of the roller | Φ75mm |
| 7 | Rolling material | High Grade Steel 45# |
| 8 | Main motor power | 7.5KW |
| 9 | Productivity | About 0-12m/min |
| 10 | Cutting method | Stop to cutting |
| 11 | Material of the cutting blade | Cr12Mov |
| 12 | Hydraulic cutting power | 4kw |
| 13 | Processing precision | Within 1.50mm |
| 14 | Control system | Siemems PLC control |
| 15 | Main structure of the machine | 350 H steel |
| 16 | Weight | About 5.5 T |
| 17 | Dimensions | 9.5*0.6*1.0m |
| 18 | Voltage | 415V 50Hz 3phases,or according to your request |
2. Fence Post C65*42mm Machine’s Components
| Item | Components Name | Quantity |
| 1 | 3T Passive Decoiler | 1 set |
| 2 | Roll Forming Machine | 1 set |
| 3 | Hydraulic Station | 1 set |
| 4 | PLC control box | 1 set |
| 5 | Hydraulic cutting | 1 unit |
| 6 | Passive out table | 1 unit |

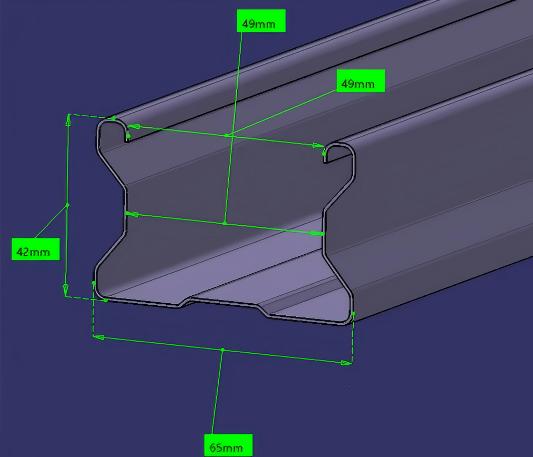

3.Fence Post C65*42mm Profile Drawing

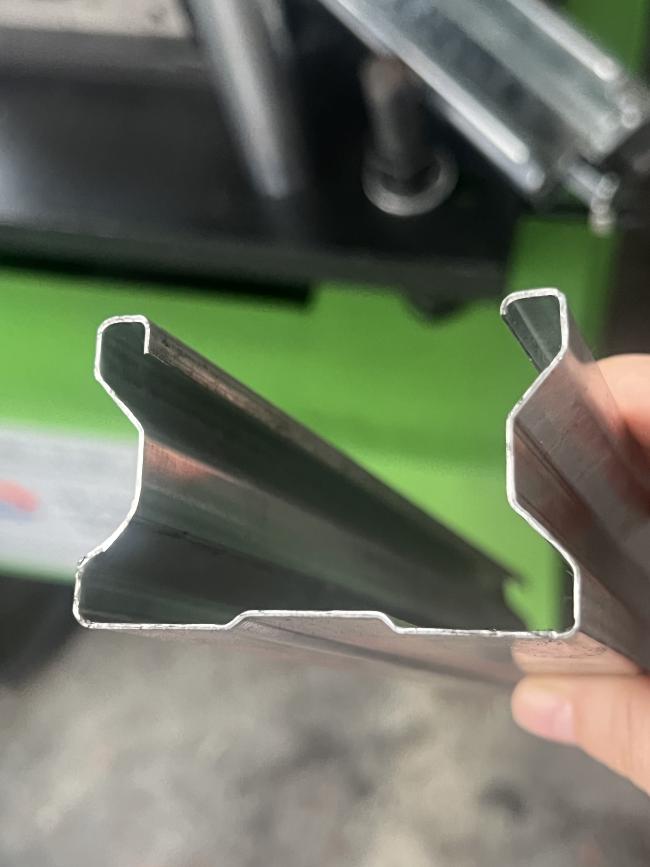

Samples:

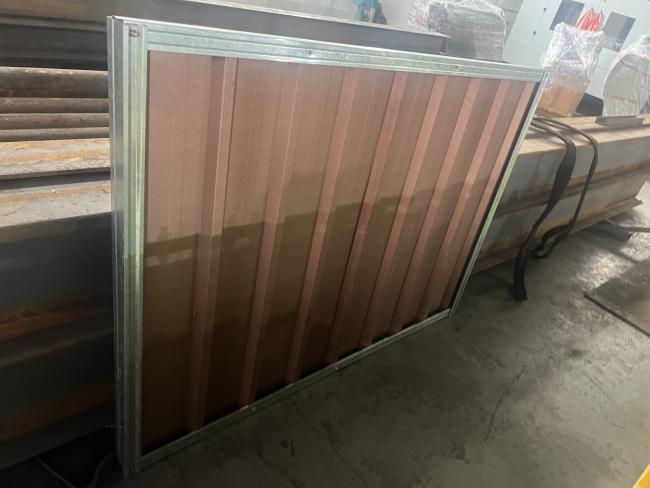

4.Appliction:
Welcome to consult more details about it !
