0.75-1.5mm Thickness 1.5″ B Roof Deck Roll Forming Machine, Steel Decking Floor Making Machine
0.75-1.5mm Thickness 1.5″ B Roof Deck Roll Forming Machine, Steel Decking Floor Making Machine
A 1.5″ B roof deck (often written as B-deck) is a common type of metal decking used in construction, especially in commercial and industrial buildings.
What it is
- The “1.5 inch” refers to the depth of the ribs (the vertical profile height).
- The “B” designation refers to a standard rib spacing pattern—typically 6 inches on center.
- It’s usually made from galvanized steel and formed into a corrugated profile for strength.
The normal machinable thickness range of our steel deck roll forming machine is 0.75-1.2mm, the standard or more used in international market is Gauge 22, 20, 18, 16 (0.75-1.5mm), working raw material is Galvanized steel etc.
Roof Deck Making Machine Technical Parameter
Machine List
|
No |
Name |
Quantity |
|
1 |
10 tons hydraulic de-coiler with coil car |
1 set |
|
2 |
Main roll forming machine with embossing roller |
1 set |
|
3 |
PLC control box system |
1 unit |
| 4 | Stop cutting | 1 unit |
|
4 |
Hydraulic station |
1 unit |
|
5 |
Out table or auto stacker |
2 units |
Working Flow of Machine
Uncoiling—Feeding&Leveling--Roll forming—Cutting—Products collecting

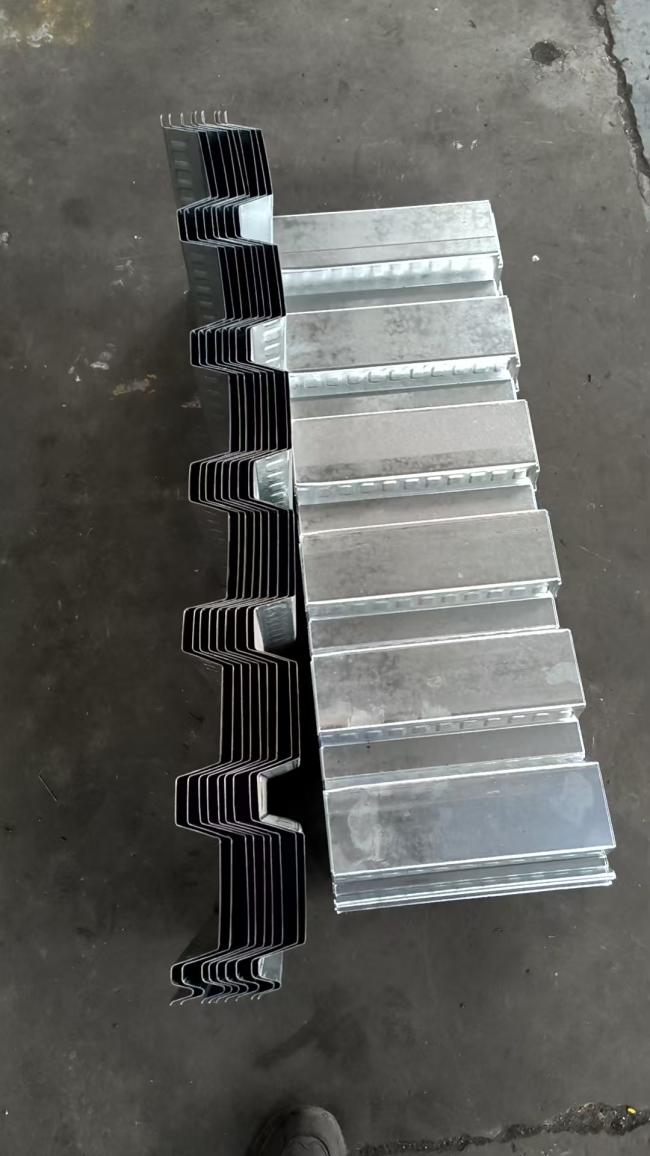

Standard Profile Drawing of product
- "B" deck is generally known as "wide rib" deck
- The most common deck profile in the industry and by far the most widely used
- Comes in 36” coverage
- Floor deck offers structural engineers and contractors a versatile and cost-effective composite steel flooring solution.
- The advantages of the metal deck rollforming machines are a high wave, high strength, high automation and low cost.
Quick comparison
- A-deck (1.5″, narrower ribs): less common today
- B-deck (1.5″): most common general-purpose roof deck
- N-deck (3″): used for longer spans/heavier loads

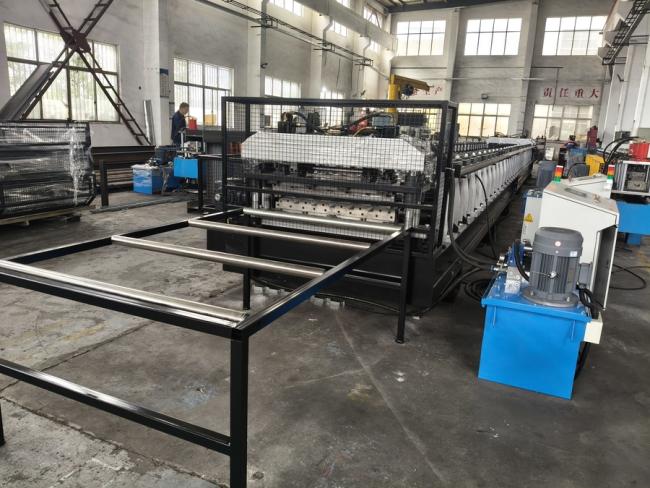

Machine Photo

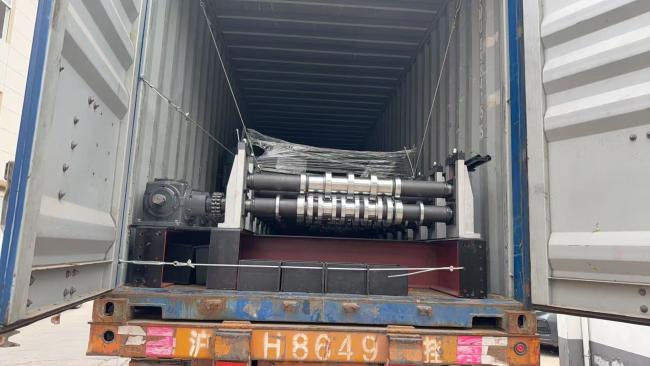

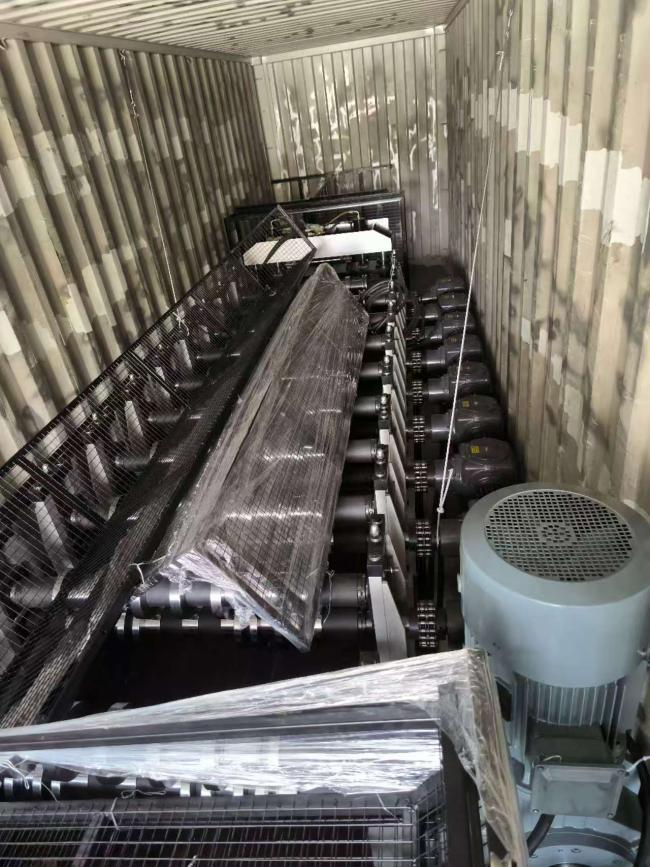

Loading Pictures
