New Popular 1.0-1.5mm Carbon&Galvanized Steel C Profile U Profile Door Frame Roll Forming Machine With Punching Device
Price:
negotation
MOQ:
1 set
Delivery Time:
95 days
Brand:
Sussman Machinery
Product Description
1.0-1.5mm Carbon&Galvanized Steel C Profile U Profile Door Frame Roll Forming Machine With Punching Device
1.C Profile U Profile Door Frame Roll Forming Machine Technical Parameter
| 1 | Suitable to process | Galvanized steel,Carbon steel |
| 2 | Width of the plate | As customer need |
| 3 | Thickness of the plate | 1.0-1.5 mm |
| 4 | De-coiler | 3 tons passive decoiler |
| 5 | Rollers for forming | About 16 rollers |
| 6 | Diameter of the roller | Φ60mm |
| 7 | Rolling material | High Grade Steel 45# |
| 8 | Main motor power | 7.5KW |
| 9 | Productivity | About 0-12m/min |
| 10 | Cutting method | Stop to cutting |
| 11 | Material of the cutting blade | Cr12Mov |
| 12 | Hydraulic cutting power | 4kw |
| 13 | Processing precision | Within 1.50mm |
| 14 | Control system | Siemems PLC control |
| 15 | Main structure of the machine | 350 H steel |
| 16 | Weight | About 3.0 T |
| 17 | Dimensions | 5.5*0.8*1.0m |
| 18 | Voltage | 220V 60Hz 3phases,or according to your request |
2. C Profile U Profile Door Frame Machine’s Components
| Item | Components Name | Quantity |
| 1 | 3 tons passive decoiler | 1 set |

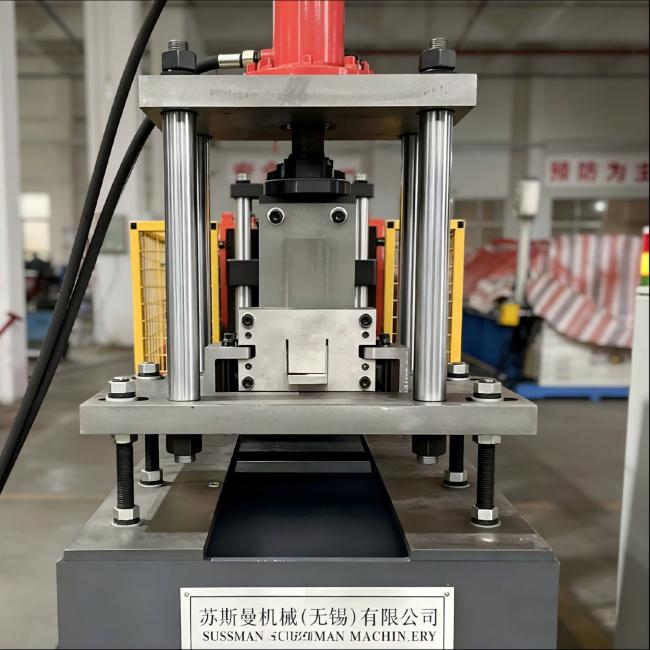

| 2 | Punching device | 1 set |
| 3 | Roll Forming Machine | 1 set |
| 4 | Hydraulic Station | 1 set |
| 5 | PLC control box | 1 set |
| 6 | Hydraulic cutting | 1 unit |
| 7 | Passive out table | 1 unit |
3.C Profile U Profile Door Frame Profile Drawings

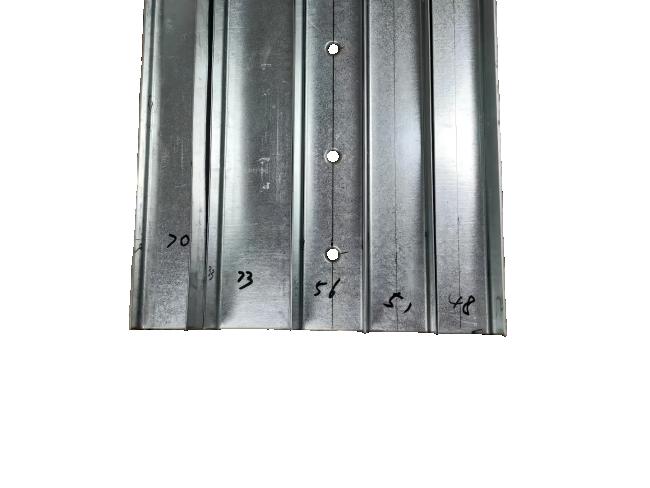

Samples:

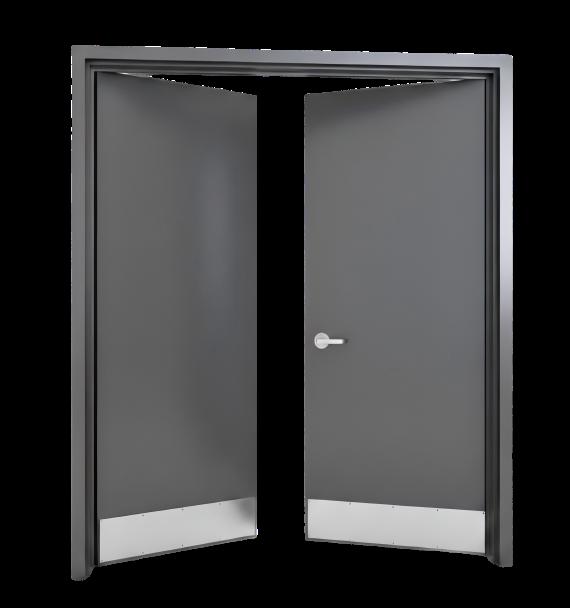

4.Appliction:
Welcome to consult more details about it !
