Mobile Transportable KR18 Standing Seam Roll Forming Machine Bemo Type On-Site Metal Roof Sheet

Price Negotiable
Price: negotation
MOQ: 1 set
Delivery Time: 95 days
Brand: Sussman Machinery
Product Description

Mobile Transportable KR18 Standing Seam Roll Forming Machine Bemo Type On-Site Metal Roof Sheet




Main Specifications


S.N
Equipment name
Quantity
1
De-coiler
1 set
2
Feeding with guide
1 set
3
Hydraulic cutting
1 set
4
Control box
1 unit
5
Main roll forming machine
1set
6
Safety cover
1 set
7
Hydraulic station
1 unit
8
portable trailer
1 set
9
motor
1 set
Machine Specification:
1
Suitable Plate Material
thickness 0.4-0.8mm, Galvanized Steel and Color-coated steel
2
Working Speed
0-12meters / min
3
Forming Steps
About 8 stations
4
Material of Roller
Good 45# steel, rigid chrome coated
5
Feeding width
610 mm
6
Effective width
about 457 mm
7
Material of roller shafts
45# steel, quenched HRC 58-62
8
Material of cutting blade
Cr12 steel
9
Power plant
gasoline engine 24HP
10
Cutting type
Hydraulic cutting
11
 Main Motor Power
 7.5kw

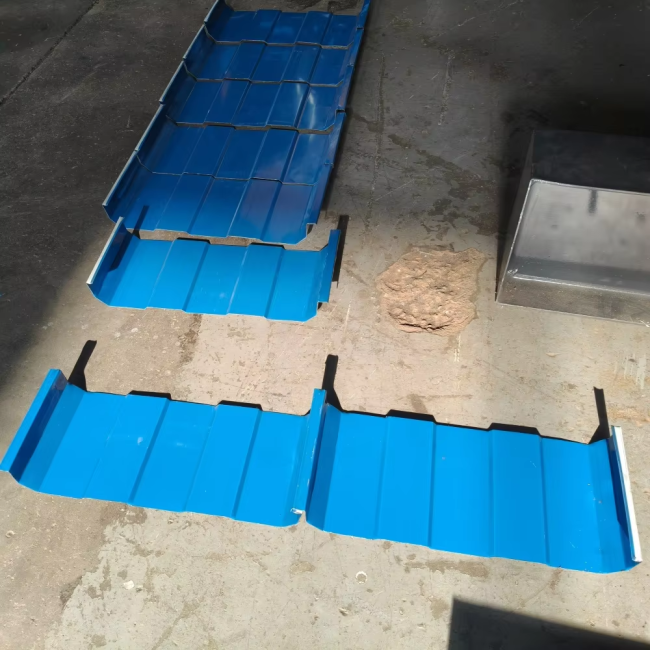

product display

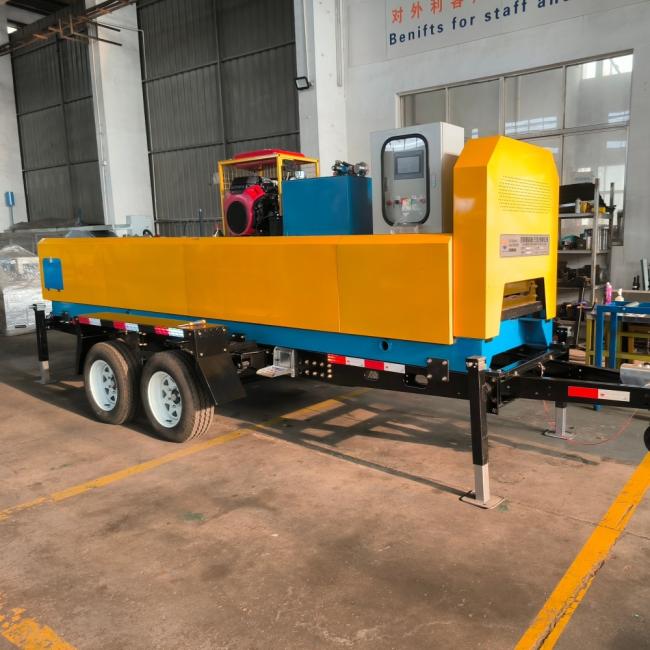

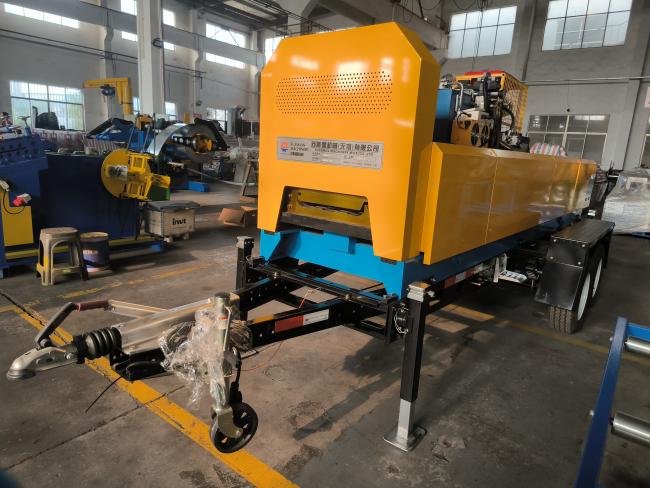

Our machine photo

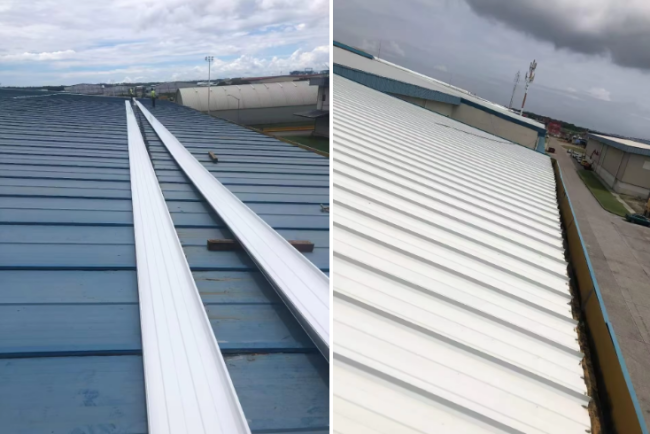

Application
