Most Popular Design Galvanized Steel 0.3-0.8mm Thickness Trapozial IBR PBU Roofing Sheet Double Layer Roof Panel Roll Forming Machine with hydraulic decoiler
Price:
negotation
MOQ:
1 set
Delivery Time:
95 days
Brand:
Sussman Machinery
Product Description

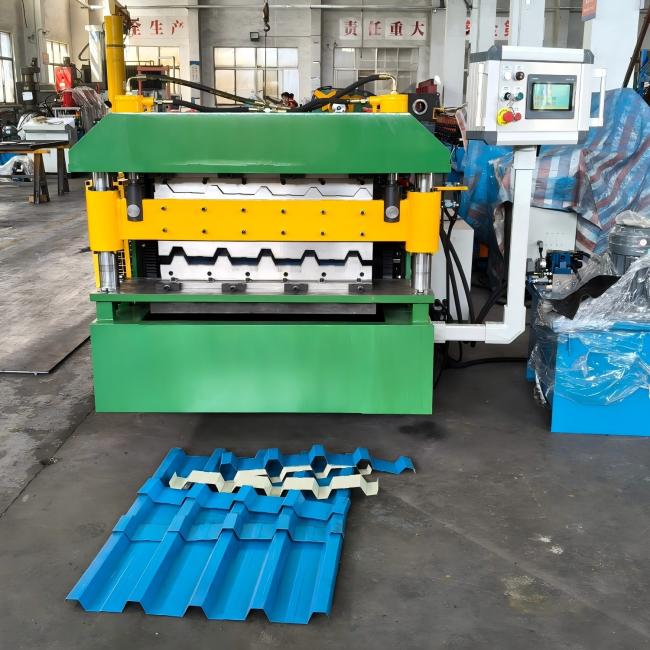

0.3-0.8mm Thickness Trapozial IBR PBU Roofing Sheet Double Layer Roof Panel Roll Forming Machine
1.Trapozial IBR PBU Roofing Sheet Roll Forming Machine Technical Parameter
| 1 | Suitable to process | Galvanized steel,PPGI,Color steel |
| 2 | Width of the plate | As customer need |
| 3 | Thickness of the plate | 0.3-0.8 mm |
| 4 | De-coiler | 5 tons hydraulic decoiler with arm and coil car |
| 5 | Rollers for forming | Up floor 21 rollers,down floor 21 rollers |
| 6 | Diameter of the roller | Φ60mm |
| 7 | Rolling material | High Grade Steel 45# |
| 8 | Main motor power | 7.5KW |
| 9 | Productivity | About 0-12m/min |
| 10 | Cutting method | Stop to cutting |
| 11 | Material of the cutting blade | Cr12Mov |
| 12 | Hydraulic cutting power | 4kw |
| 13 | Processing precision | Within 1.50mm |
| 14 | Control system | Siemems PLC control |
| 15 | Main structure of the machine | 350 H steel |
| 16 | Weight | About 8.5T |
| 17 | Dimensions | 9.5*1.2*1.1m |
| 18 | Voltage | 220V 60Hz 3phases,or according to your request |
2. Trapozial IBR PBU Roofing Sheet Roll Forming Machine’s Components
| Item | Components Name | Quantity |
| 1 | 5 tons hydraulic decoiler with arm and coil car | 1 set |
| 2 | Main Roll Forming Machine | 1 set |
| 3 | Hydraulic Station | 1 set |
| 4 | PLC control box | 1 set |
| 5 | Hydraulic cutting | 1 unit |
| 6 | Passive out table | 1 unit |
3.Trapozial IBR PBU Roofing Sheet Profile Samples

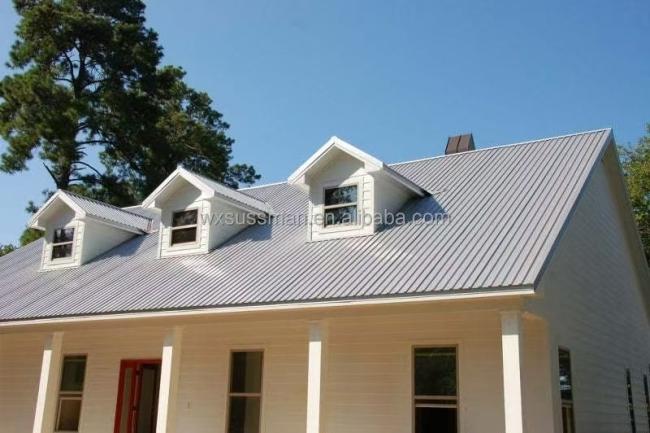

4.Appliction:
We can make different profiles in one machine, please feel free to contact us to get more details about it !
