Newest Design 2.0-3.5mm Thickness Galvanized Steel CZ100-500mm width adjustable House Structure Frame Making CZ Purlin Roll Forming Machine with Auto Stacker
Price:
negotation
MOQ:
1 set
Delivery Time:
95 days
Brand:
Sussman Machinery
Product Description
2.0-3.0mm Galvanized Steel CZ100-500mm width adjustable Structure Frame CZ Purlin Roll Forming Machine
1.CZ100-500mm width adjustable CZ Purlin Roll Forming Machine Technical Parameter
| 1 | Suitable to process | Galvanized steel,Carbon steel |
| 2 | Width of the plate | As customer need |
| 3 | Thickness of the plate | 2.0-3.5 mm |
| 4 | De-coiler | 5 tons hydraulic decoiler |
| 5 | Rollers for forming | About 24 rollers |
| 6 | Diameter of the roller | Φ75mm |
| 7 | Rolling material | High Grade Steel 45# |
| 8 | Main motor power | 22KW |
| 9 | Productivity | About 0-12m/min |
| 10 | Cutting method | Stop to cutting |
| 11 | Material of the cutting blade | Cr12Mov |
| 12 | Hydraulic cutting power | 7.5kw |
| 13 | Processing precision | Within 1.50mm |
| 14 | Control system | Siemems PLC control |
| 15 | Main structure of the machine | 350 H steel |
| 16 | Weight | About 20 T |
| 17 | Dimensions | 24.0*1.5*1.6m |
| 18 | Voltage | 220V 60Hz 3phases,or according to your request |
2. CZ100-500mm Purlin Machine’s Components
| Item | Components Name | Quantity |
| 1 | 5 tons hydraulic decoiler | 1 set |
| 2 | Pre-punching dies | About 3 sets |
| 3 | Pre-cutting device | 1 set |

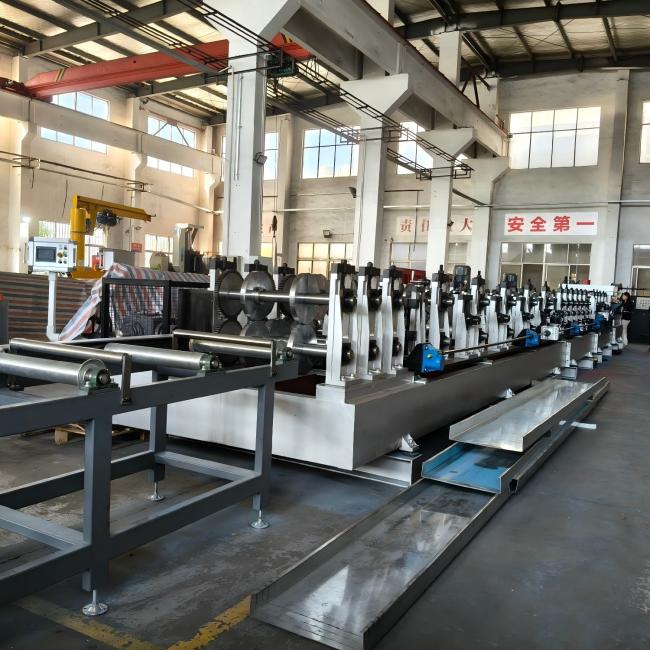

| 4 | Main roll forming machine | 1 set |
| 5 | Hydraulic station | 1 set |
| 6 | PLC control box | 1 set |
| 7 | Auto stacker | 1 set |

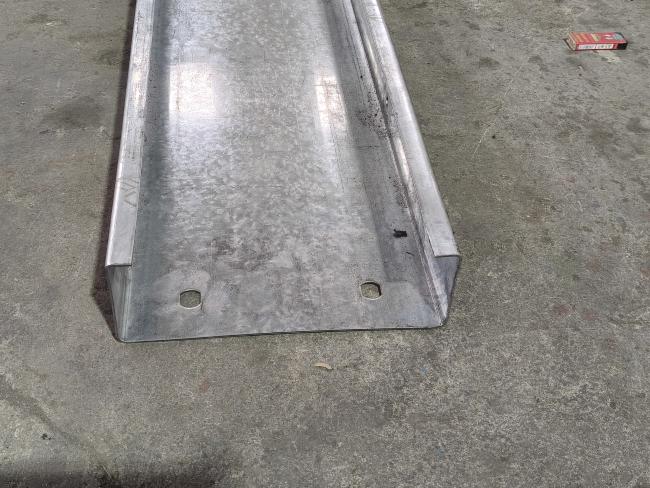

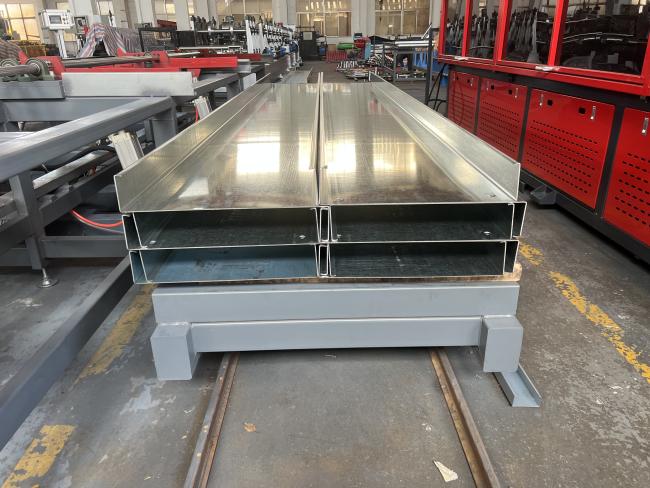

3.CZ100-500mm Purlin Profile Samples

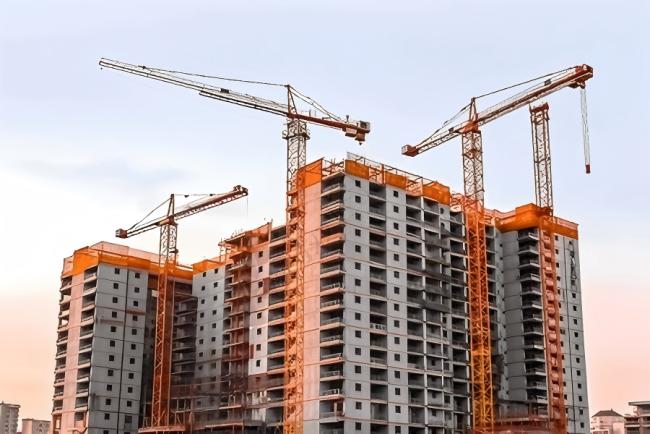

4.Appliction:
Welcome to consult more details about it !
