China 0.8-1.2mm Thickness Galvanized Steel Din Rail Roll Forming Machine for Electrical Cabinet Channel Rail for sale
China 0.8-1.2mm Thickness Galvanized Steel Din Rail Roll Forming Machine for Electrical Cabinet Channel Rail for sale
China 0.8-1.2mm Thickness Galvanized Steel Din Rail Roll Forming Machine for Electrical Cabinet Channel Rail for sale
China 0.8-1.2mm Thickness Galvanized Steel Din Rail Roll Forming Machine for Electrical Cabinet Channel Rail for sale
China 0.8-1.2mm Thickness Galvanized Steel Din Rail Roll Forming Machine for Electrical Cabinet Channel Rail for sale
China 0.8-1.2mm Thickness Galvanized Steel Din Rail Roll Forming Machine for Electrical Cabinet Channel Rail for sale
China 0.8-1.2mm Thickness Galvanized Steel Din Rail Roll Forming Machine for Electrical Cabinet Channel Rail for sale

0.8-1.2mm Thickness Galvanized Steel Din Rail Roll Forming Machine for Electrical Cabinet Channel Rail

Price Negotiable
Price: negotation
MOQ: 1 set
Delivery Time: 95 days
Brand: Sussman Machinery
Product Description

0.8-1.2mm Thickness Galvanized Steel Din Rail Roll Forming Machine for Electrical Cabinet Channel Rail



Machine List:


S.N
Equipment name
Quantity
1
3 ton passive de-coiler
1 set
2
Main roll forming machine
1 set
3
Hydraulic punching and cutting
1 set
4
PLC Control box
1 unit
5
Hydraulic station
1 unit
6
Passive output table
1 set
7
Safety cover
1 set
8
Spare parts
1 Package
Machine Specification:
1
Material Thickness
thickness 0.8-1.2mm, Galvanized steel
2
Working Speed
About 5-6m/min
3
Forming Steps
About 12 stations
4
Material of Roller
Gcr15, Quench HRC58-62 Plated Chrome
5
Driven system
Chain driven
6
Main motor power
5.5 KW
7
 Cutting type
Hydraulic cutting
8
Material of cutting
CR12 with quench treatment
9
Electronic control
PLC control

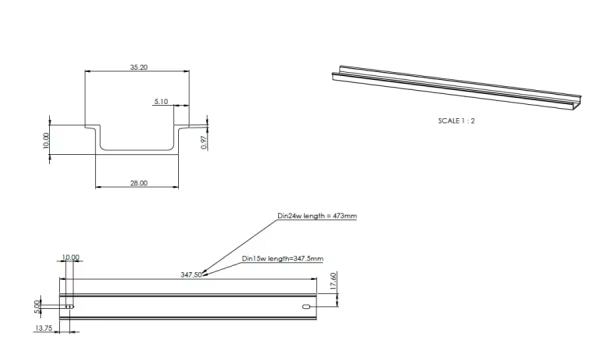

product display

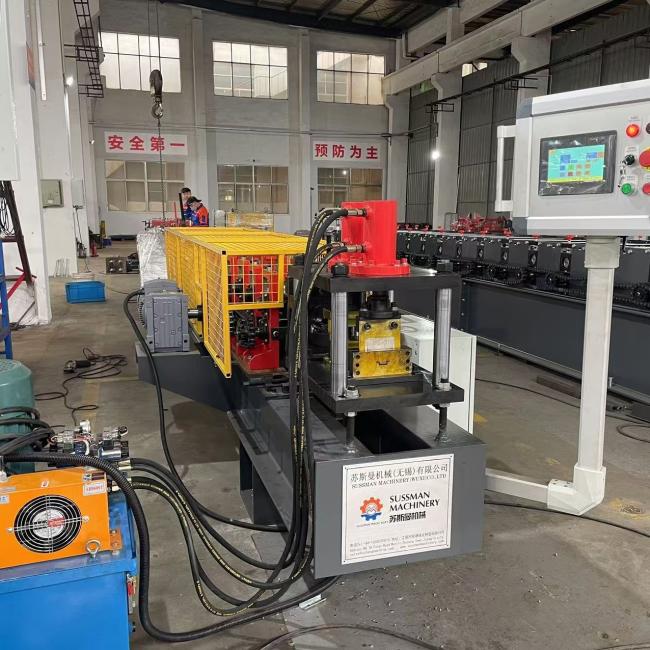

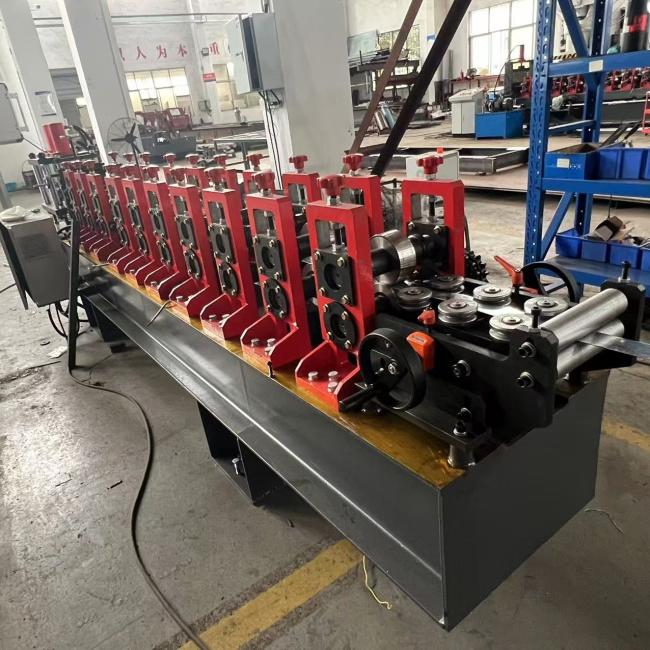

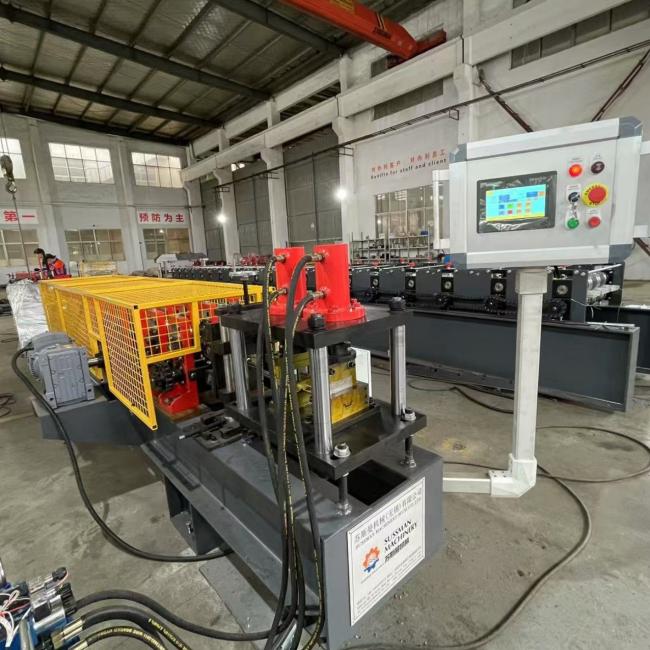

Our machine photo

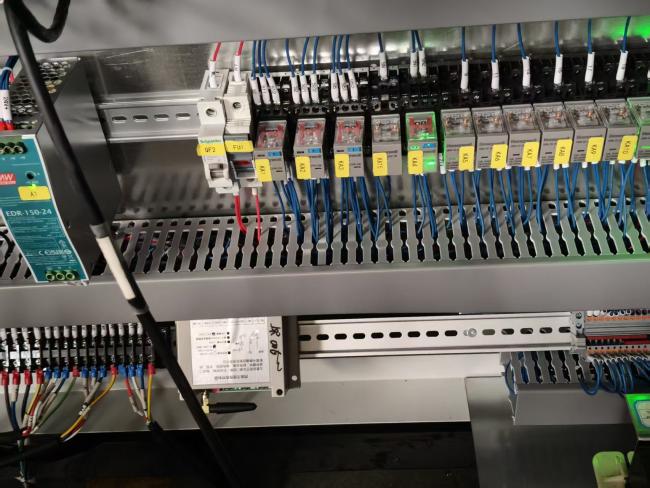

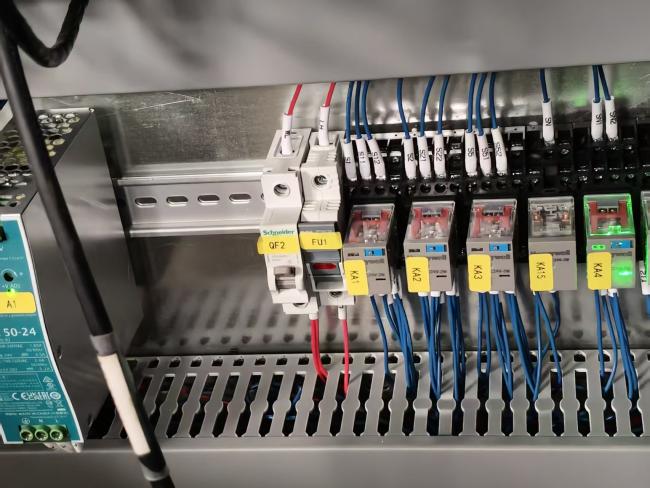

Application
