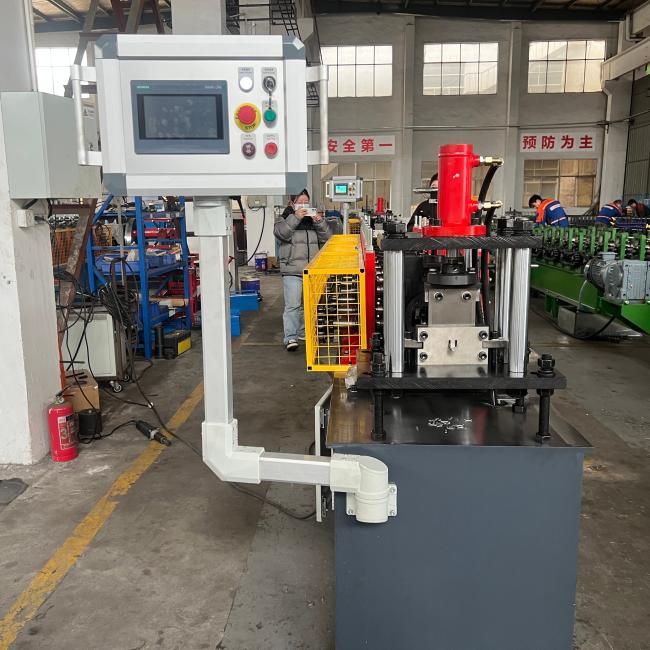

High Precision 0.6-1.2mm V Profile Roll Forming Machine Thickness 0-12m/min Speed Galvanized Steel

     The V Profile Roll Forming Machine is engineered for high-precision production of V-shaped metal channels. Designed for continuous roll forming, it supports mild steel, galvanized steel, and stainless steel sheets with thickness ranging from 0.6 mm to 1.2 mm. The machine delivers consistent cross-sectional accuracy for construction, cable management, and light-gauge steel applications.

Applications

The V Profile Roll Forming Machine is widely used in:

• Construction Steel Framing – producing channels for walls, ceilings, and partitions
• Cable Trays and Ducts – consistent V-channels for industrial wiring
• Light Gauge Steel Structures – structural elements in pre-engineered buildings
• Industrial Shelving and Racking Profiles – precision-made support channels
• Interior Partition Framing – uniform dimensions for quick assembly

This versatility allows manufacturers to address multiple production needs with a single, adjustable line.

Key Benefits

• High Dimensional Accuracy: Hardened roll material and precise shaft alignment maintain uniform V-profile shapes.
• Consistent Production: Continuous roll forming ensures minimal variation in channel dimensions.
• Durable Construction: GCr15 steel rolls and robust frame design reduce downtime from wear.
• Low Maintenance: Modular components and hydraulic cutting minimize intervention.
• Adaptable: Handles different steel grades and thicknesses without retooling.
• Efficient for Mass Production: Supports high-speed forming for large-volume orders.

These benefits directly address common points such as material warping, inconsistent channels, and roll wear.

Why Choose Our Machine

Our V Profile Roll Forming Machine combines engineering precision, industrial reliability, and adaptability. Every unit undergoes factory testing for tolerance, forming speed, and structural integrity, providing customers with a trusted solution for both small-scale and industrial-scale production.

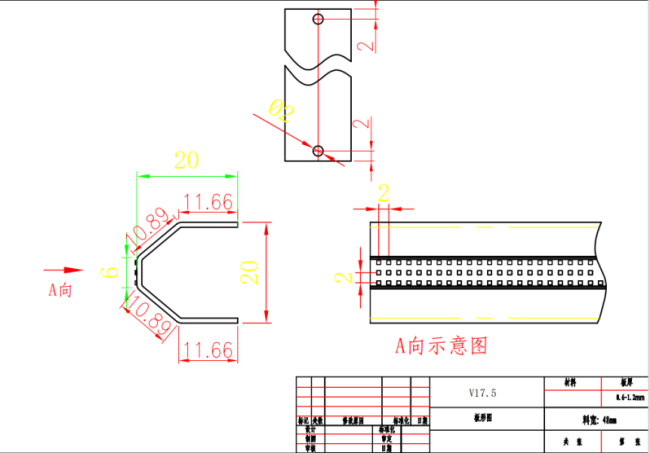

Profile

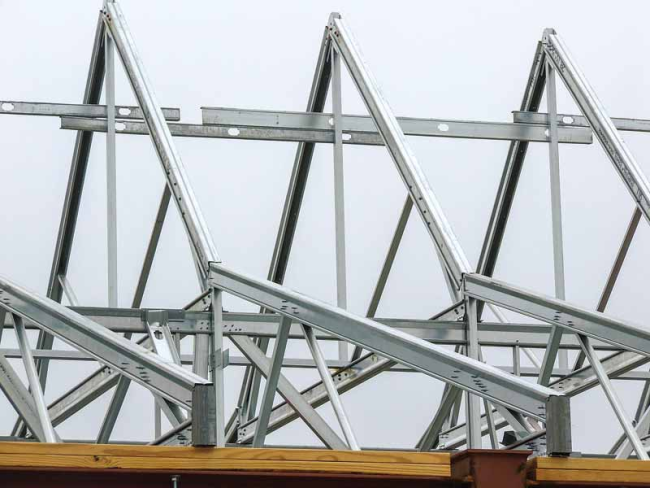

Application picture
