0.8-1.2mm Zinc Copper Galvanized Steel Omega&Hat Din Rail Roll Forming Machine For Electrical Cabinet Cable Tray
Price:
negotation
MOQ:
1 set
Delivery Time:
95 days
Brand:
Sussman Machinery
Product Description
0.8-1.2mm Zinc Copper Galvanized Steel Electrical Cabinet Cable Tray Omega&Hat Din Rail Roll Forming Machine
1.Omega&Hat Din Rail Roll Forming Machine Technical Parameter
| 1 | Suitable to process | Zinc Copper Galvanized Steel |
| 2 | Width of the plate | As customer need |
| 3 | Thickness of the plate | 0.8-1.2 mm |
| 4 | De-coiler | 3 tons passive decoiler |
| 5 | Rollers for forming | About 12 stations |
| 6 | Diameter of the roller | Φ60mm |
| 7 | Rolling material | High Grade Steel 45# |
| 8 | Main motor power | 5.5KW |
| 9 | Productivity | About 0-12m/min |
| 10 | Cutting method | Stop to cutting |
| 11 | Material of the cutting blade | Cr12Mov |
| 12 | Hydraulic cutting power | 4kw |
| 13 | Processing precision | Within 1.50mm |
| 14 | Control system | PLC control |
| 15 | Main structure of the machine | 350 H steel |
| 16 | Weight | About 2.5T |
| 17 | Dimensions | 4.5*0.85*1.0m |
| 18 | Voltage | 220V 60Hz 3phases,or according to your request |

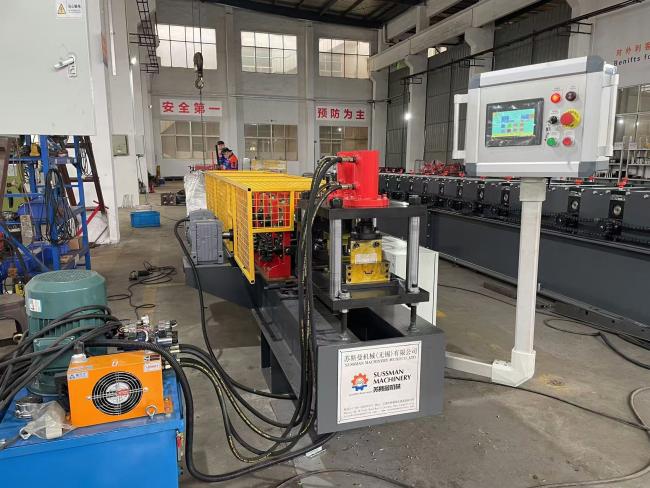

2.Machine List:

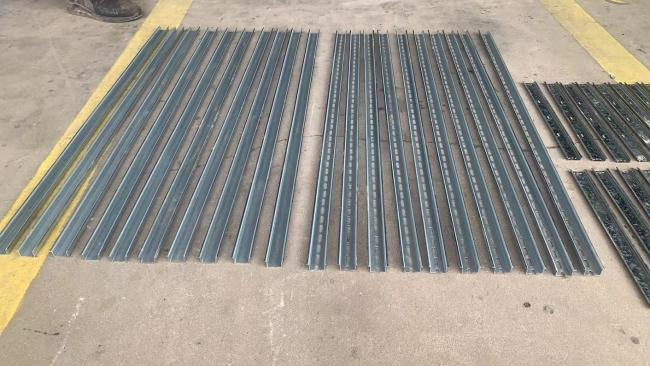

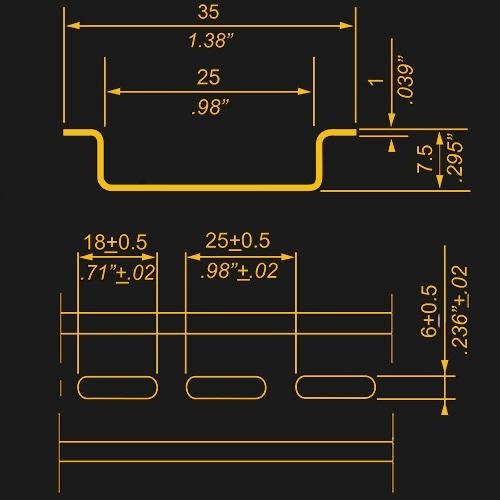

3.Omega&Hat Din Rail Profile Samples
Samples:

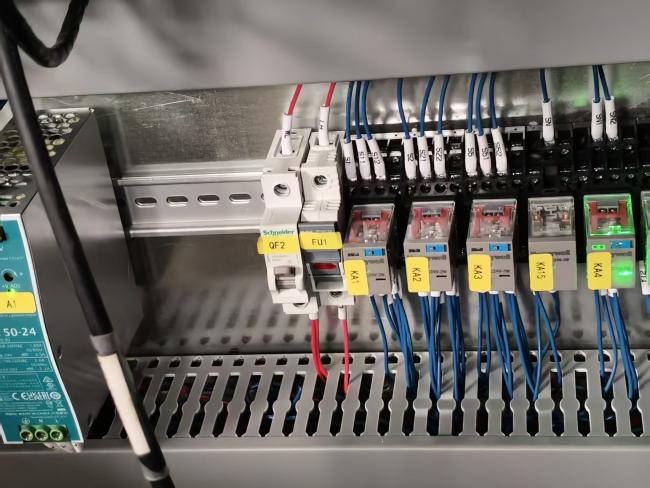

4.Application:
We can make different profiles in one machine, please feel free to contact us to get more details about it !
