House Structure Material Industrial Computer Control G550 C70 C90 Width Adjustable Light Gauge Steel Roll Forming Machine For Australia Market
House Structure Material Industrial Computer Control C70 C90 Width Adjustable Light Gauge Steel Roll Forming Machine For Australia Market
1.C 70 C 90 LGS Roll Forming Machine Technical Parameter
| 1 | Suitable to process | Galvanized steel Z275 G550 |
| 2 | Width of the plate | As customer need |
| 3 | Thickness of the plate | 0.8-1.2mm |
| 4 | De-coiler | electric one with leveling device, can load 2 tons raw material |
| 5 | Rollers for forming | About 12 rollers |
| 6 | Diameter of the roller | Φ75mm |
| 7 | Rolling material | High Grade Steel 45# |
| 8 | Main motor power | 7.5kw |
| 9 | Productivity | About 1750m/h |
| 10 | Cutting method | Hydraulic cutting |
| 11 | Material of the cutting blade | Cr12Mov |
| 12 | Hydraulic cutting power | 7.5kw |
| 13 | Processing precision | +/- 1.50mm |
| 14 | Control system | Siemems PLC control |
| 15 | Main structure of the machine | 350 H steel |
| 16 | Weight | About 5T |
| 17 | Dimensions | 6.5*1.0*1.5m |
| 18 | Voltage | 415V 50Hz 3phases,or according to your request |
2. C 70 C90 Machine’s Components
| Item | Components Name | Quantity |
| 1 | 2T Electric Decoiler with leveling device | 1 set |
| 2 | Punching dies | About 5 sets |
| 3 | Roll Forming Machine | 1 set |
| 4 | Hydraulic Station | 1 set |
| 5 | PLC control box | 1 set |
| 6 | Cutting blade | 1 unit |
| 7 | Passive out table | 1 unit |

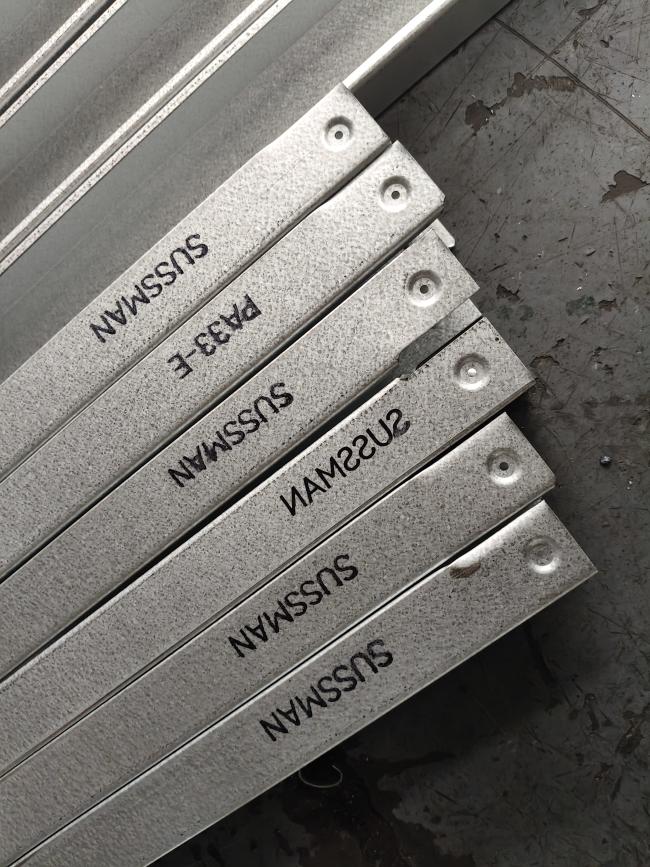

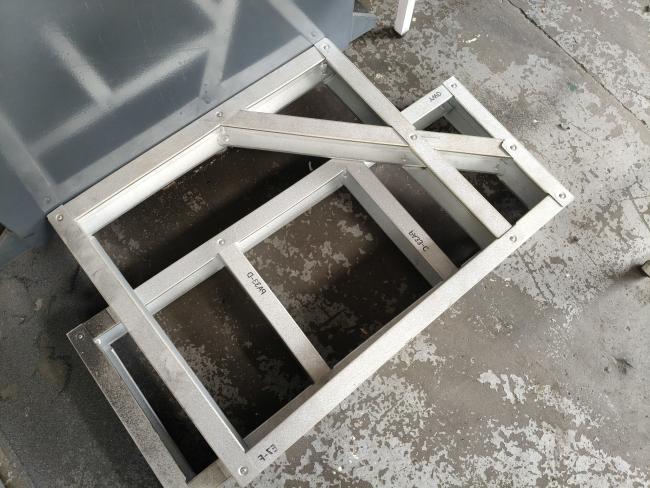

3. C 70 C90 Profile Samples
4.Appliction:

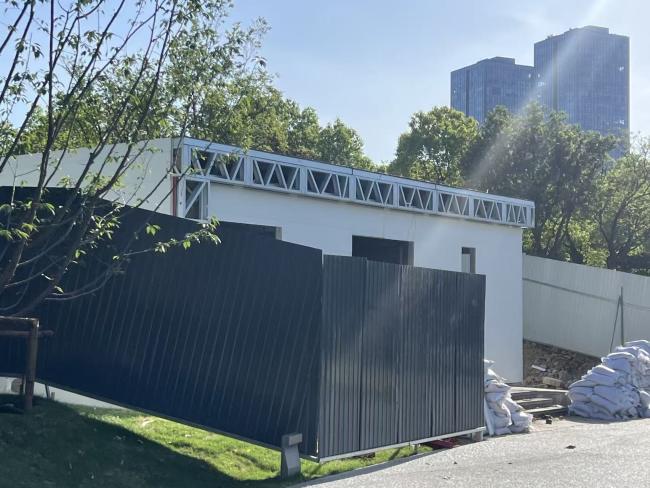

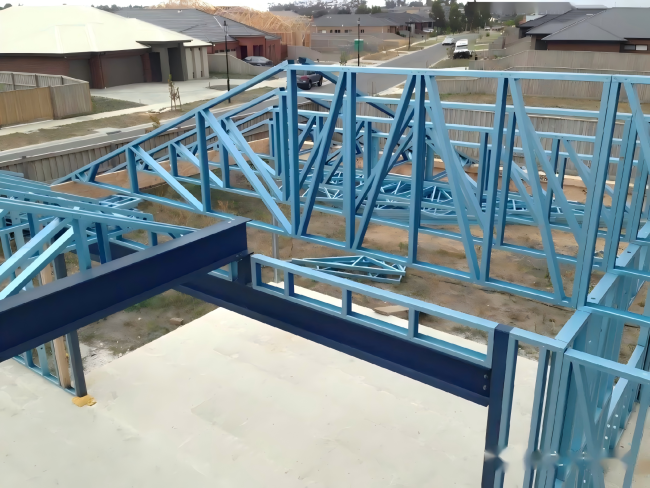

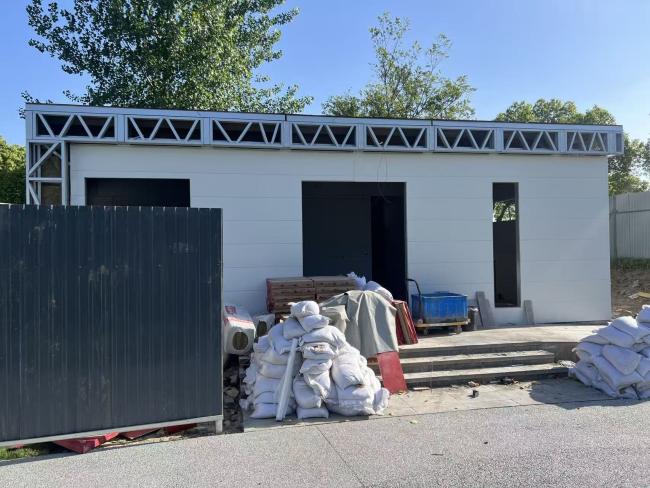

Ceiling: Light steel framing is commonly used in ceiling structures, providing a support framework suitable
for various lightweight decorative panels, such as gypsum board and aluminum panels.
Partition walls: In interior decoration, light steel framing is widely used for constructing non-load-bearing
partition walls, which can effectively divide spaces while maintaining good sound insulation.
Curtain walls: Light steel framing is also used in the exterior curtain wall systems of buildings, providing
stable support that meets the design requirements of modern architecture.
Old Building Renovation: In the renovation of old buildings, light steel framing can serve as a new support
structure, enhancing the safety and aesthetics of the building.
Interior Decoration: Light steel framing is widely used in various interior decoration projects due to its ease of
construction and short construction time, making it suitable for hotels, shopping malls, office buildings, and other locations.
Sussman Machinery provide whole light steel villa machine solution, please feel free to contact us.Thanks.
