Africa Market Popular IBR 686/760 Double Layer Roll Forming Machine, Two Layers Roofing Machine
Price:
USD 25500 per set
MOQ:
1
Delivery Time:
60 days
Brand:
Sussman
Product Description
Africa Market Popular IBR 686/760 Double Layer Roll Forming Machine, Two Layers Roofing Machine
| Number | Items | UnitType | RF-DL |
| 1 | Steel Thickness | mm | 0.4-0.8mm, coil width 925mm |
| 2 | Forming Speed | m/min | 0-12m/min |
| 3 | Roller stands | stand |
22 stands bottom layer; 18 stands top layer |
| 4 | Roller Material | mm | 45# steel, coated with chrome quenching 55-58 |
| Shaft material and diameter | mm | Ф76 45# steel | |
| 5 | Main Motor Power | Kw | 7.5 |
| 6 | Hydraulic cutting Power | Kw | 4 |
| 7 | Hydraulic pressure | Mpa | 12 |
| 8 | Power Supply | 380V, 50HZ,3 phase | |
| 9 | Tolerance | mm | 1.5 |
| 10 | Material of cutting | Cr12mov HRC60-62 | |
| 11 | Control system | PLC with touch screen | |
| 12 | Machine net weight | T | 10 |

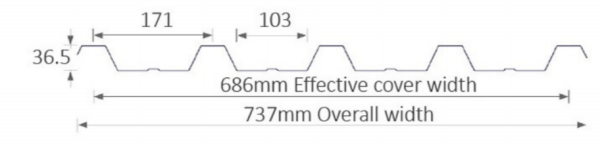

Profile Drawings
The IBR 686 sheet is a trapezoidal metal roofing and wall cladding sheet commonly used in industrial, commercial, and residential buildings.
IBR means Inverted Box Rib, and 686 refers to the sheet’s effective cover width of 686 mm after side overlaps during installation.
IBR 686 is especially popular in Southern Africa and nearby regions.
Major Countries
- South Africa
- Namibia
- Botswana
- Zambia
- Zimbabwe
- Mozambique
It is also used in:
- Parts of Angola
- Some regions of Europe
- Export roofing markets in Africa
Advantages
- Stronger than ordinary corrugated sheets
- Modern architectural appearance
- Faster installation with fewer supports
- Long-span capability
- Corrosion resistance when coated
- Lightweight yet structurally efficient
Technological Process
Uncoiling—Feedingwithguide—Roll forming—Cutting—Products collecting

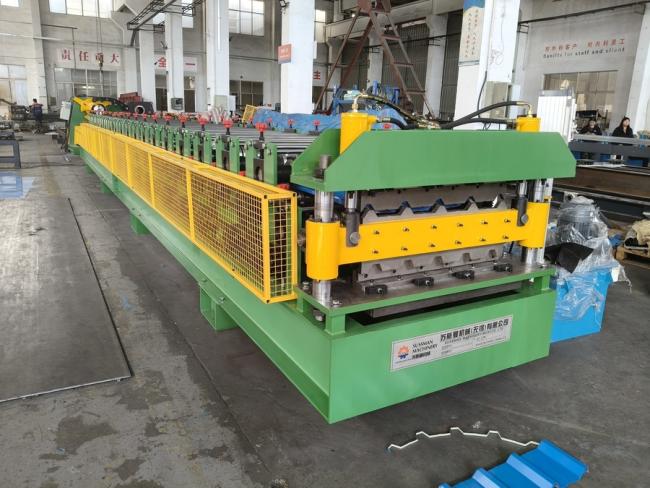

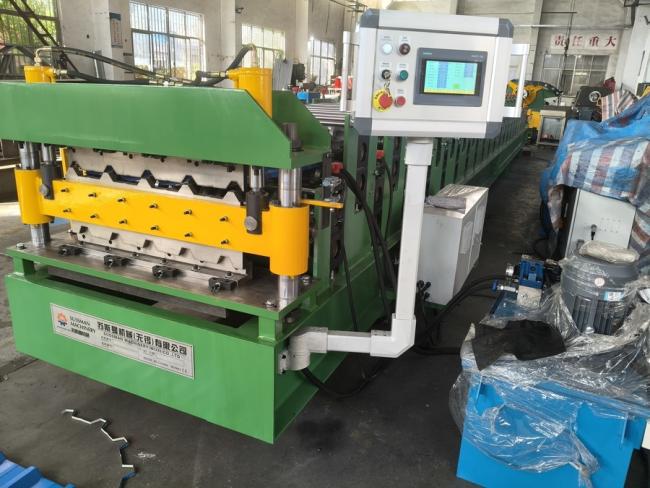

Machine Photo
