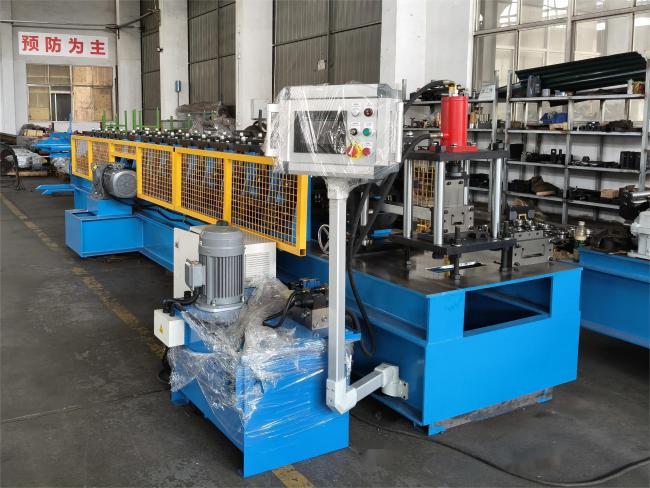

Warehouse Storage 1.5-2.0mm Carbon Steel C Channel Racking Box Beam Roll Forming Machine With Auto Joint Machine
Warehouse Storage 1.5-2.0mm Carbon Steel C Channel Racking Box Beam Roll Forming Machine With Auto Joint Machine
| 1 | Suitable to process | Carbon steel or Other |
| 2 | Width of the plate | As customer need |
| 3 | Thickness of the plate | 1.5-2.0mm |
| 4 | De-coiler | Passive one, can load 3 tons coils |
| 5 | Rollers for forming | 15 rollers + 4 rollers joint machine |
| 6 | Diameter of the roller | Φ75mm |
| 7 | Rolling material | High Grade Steel 45# |
| 8 | Main motor power | 11 kw |
| 9 | Productivity | About 8-10m/min |
| 10 | Cutting method | Hydraulic stop cutting |
| 11 | Material of the cutting blade | Cr12Mov |
| 12 | Hydraulic cutting power | 4 kw |
| 13 | Processing precision | +/- 1.00mm |
| 14 | Control system | PLC control |
| 15 | Main structure of the machine | 350 H steel |
| 16 | Weight | About 8 T |
| 17 | Voltage | 380V 50Hz 3phases or Customized |
| Name | Quantity (set) |
| 3 ton passive De-coiler | 1 set |
| Main roll forming machine | 1 set |
| Hydraulic cutting | 1 set |
| Hydraulic station | 1 set |
| Run out table | 2 sets |
| PLC Control box | 1 set |
| Safety cover | 1 set |
| Spare parts | 1 package |
| Joint machine | 1 set |

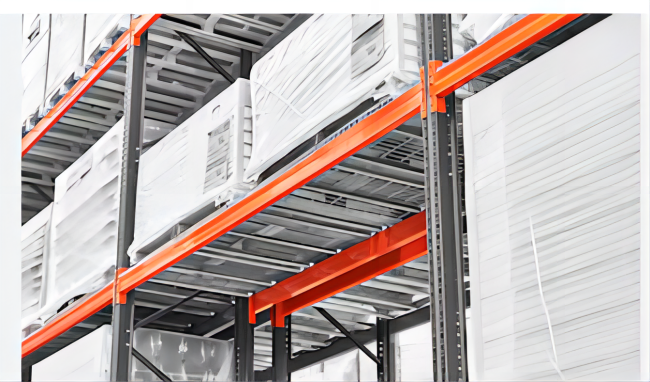

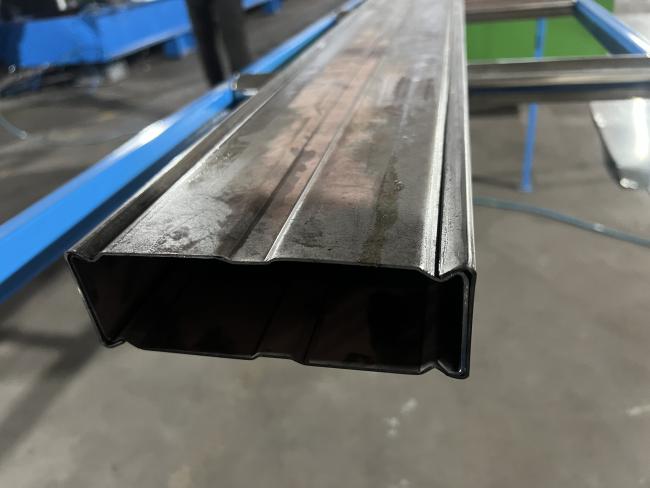

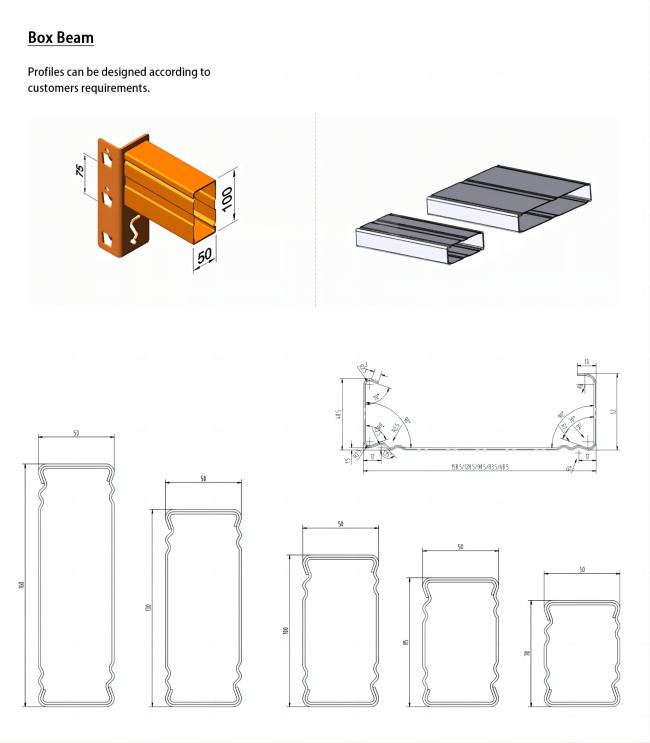

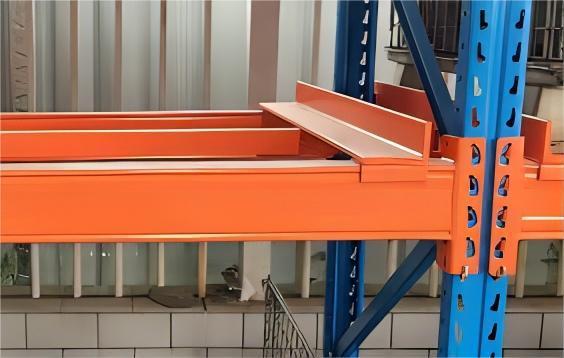

Box beams have always been the most popular beam design in the Canadian,Mexico etc. pallet racking market; they are preferred for their superior strength per square inch. Because of their basic rectangular shape, box beams can hold heavier loads than step beams,which have a more intricate design. That said, although box beams are stronger than step beams per square inch, step beams can be strengthened simply by making them taller (slightly increasing their cost). Given that step beams can be made as strong as box beams simply by increasing their height, we consider them equal in terms of strength.
We can make multiple sizes in one machine, please feel free to contact us to get more details about it !
