Calibre22-Calibre30 Acanaladora De Lamina R72 R101 Trapezoidal Roof Sheet Roll Forming Machine
Calibre22-Calibre 30 Acanaladora De Lamina R72 R101 Trapezoidal Roof Sheet Roll Forming Machine
The normal machinable thickness range of our roof panel roll forming machine is 0.3mm-0.8mm, working raw material is Aluminum, PPGI, Galvanized steel, Galvalume steel etc. We design the machine according to your drawing, specially the pitch and height of each wave. This machine is used to form the pre-painted sheet/GI material to various roofing of the projects such as sports center, exhibition center, subway project, airport and stadium etc.
Technical parameter:
Rolling Speed: 0-10m/min
Steel sheet Thickness: 0.3-0.8mm galvanized sheet
Control System: PLC
Roller Stations: about 24 stations
Roller Material : 45# forge steel, coated with chrome
Shaft Material and DIA: ￠75mm,material is 45# forge steel, Chrome with quenching
Motor Power: 7.5kw main motor
Hydraulic power: 3kw
Hydraulic Pressure: 12Mpa
Tolerance: +1.5mm
Power supplier: According to Customer’s Requirements
Way Of Drive:1.2 inch single chain
Machine List
| Machine list | 5 tons passive de-coiler | 1 set |
| Main roll forming machine | 1 set | |
| PLC Control box | 1 unit | |
| Hydraulic station | 1 unit | |
| Safety cover | 1 set | |
| Spare parts | 1 set |
working flow
Profile Drawing

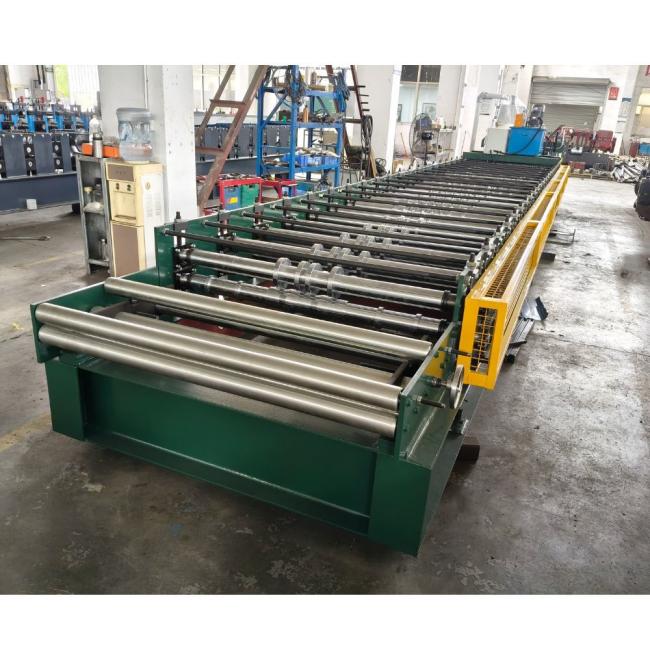

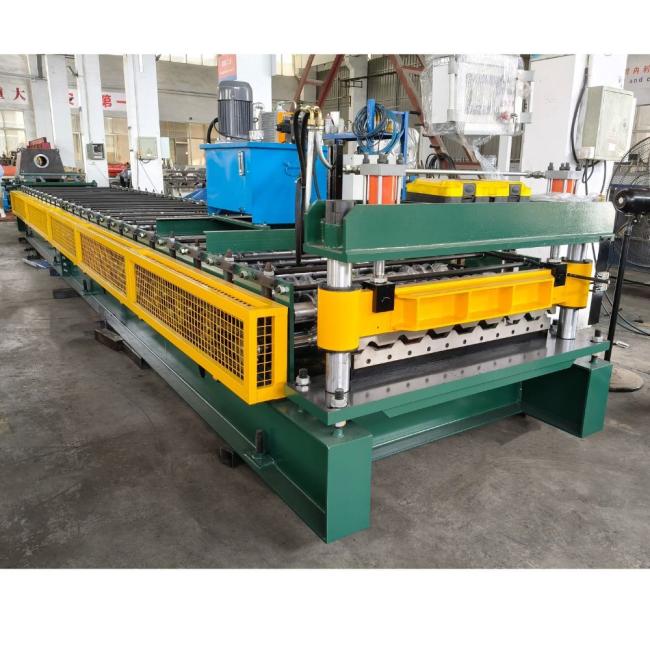

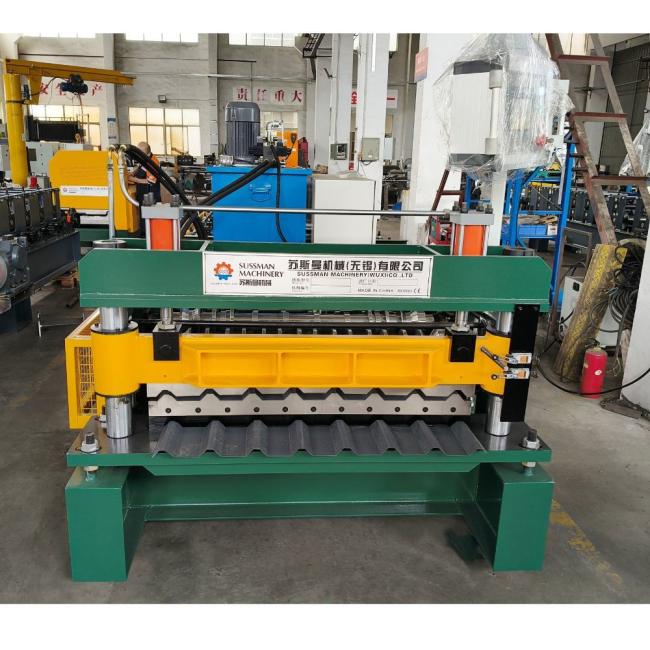

Machine Shows
Application:
