Hydraulic Punching 1.5-2.5mm GI Stainless Steel Strut Channel Slotted & Unsoltted Uni Solar Structure Channel Roll Forming Machine With Servo Following Cutting For Sale
Price:
negotation
MOQ:
1 set
Delivery Time:
95 days
Brand:
Sussman
Product Description
Hydraulic Punching Solar Mounting System Unslotted&Slotted C Uni Solar Strut Roll Forming Machine
1.Unslotted&Slotted C Uni Solar Strut Roll Forming Machine Technical Parameter
| 1 | Suitable to process |
Stainless steel and GI |
| 2 | Width of the plate | As customer need |
| 3 | Thickness of the plate | 1.5-2.5mm |
| 4 | De-coiler | Passive one, can load 5 tons raw material |
| 5 | Rollers for forming | About 18-20 rollers |
| 6 | Diameter of the roller | Φ75mm |
| 7 | Rolling material | High Grade Steel 45# |
| 8 | Main motor power | 18.5kw |
| 9 | Productivity | About 8-10m/min |

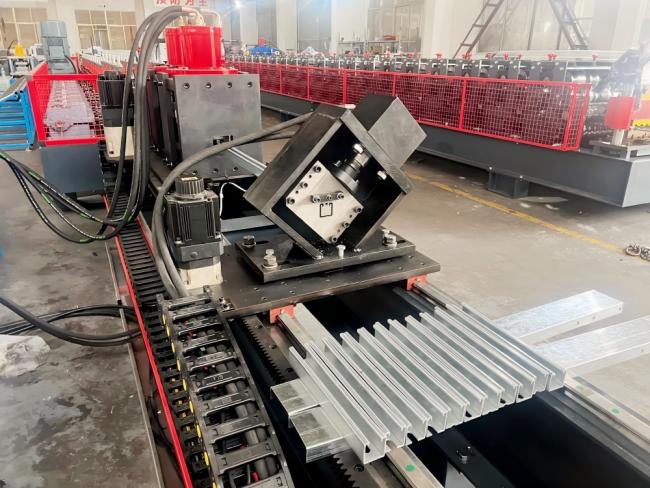

| 10 | Cutting method | Hydraulic servo following cutting |
| 11 | Material of the cutting blade | Cr12Mov |
| 12 | Hydraulic cutting power | 30kw |
| 13 | Processing precision | +/- 1.50mm |
| 14 | Control system | PLC control |
| 15 | Main structure of the machine | 350 H steel |
| 16 | Weight | About 15 T |
| 17 | Dimensions | 12.5*1.1*1.2m |
| 18 | Voltage | 220V 60Hz 3phases,or according to your request |
2. Unslotted&Slotted C Uni Solar Strut Machine’s Components
| Item | Components Name | Quantity |
| 1 | 5T Passive Decoiler | 1 set |
| 2 | Hydraulic Punching Dies | 2 sets |
| 3 | Roll Forming Machine | 1 set |
| 4 | Hydraulic Station | 1 set |
| 5 | PLC control Cabinet | 1 set |
| 6 | Cutting blade | 1 set |
| 7 | Out table | 1 set |
| 8 | Safety cover | 1 pc |
3. Unslotted&Slotted C Uni Solar Strut Profile Drawing
4.Application
To make c channel strut channel machine, we have two method, one is by press punching with high speed,
other one is to by hydraulic punching with low speed, also can do fly punching, the speed is fast and save costs.
But this machine is customized without punching machine.
We can make multiple sizes in one machine, please feel free to contact us to get more details about it !
