0.4mm-0.7mm Colour Steel Automatic Roof Panel Roll Forming Machine With Panasonic PLC Control

Technical Parameter

1. Rolling Speed : 10-12m/min(cutting time is not include)

2. Steel sheet Thickness: 0.25-0.8mm color painted sheets

3. Control System: PLC:

4. Roller Stations: 18 stations

5. Roller Material : 45# forge steel, coated with chrome

6. Shaft Material and DIA: ￠75mm,material is 45# forge steel

7. Maim Motor Power: 7.5kw

8.Hydraulic Pressure: 12Mpa

9. Material Of The Stations: Wall plate

10. Tolerance: +1.5mm

11.Power supplier:220V, 60HZ,3 phase

12.Way Of Drive:1.2 inch single chain

13. Color Of The Machine :blue

14. The size of the forming machine:8000*1500*1000mm

15. Machine weight: about 6 tons

Working Flow

Uncoiling—Feedingwithguide——Rollforming—Cutting—Products collecting

Machine Componnets

Roof Panel Profile

Machine picture

Loading

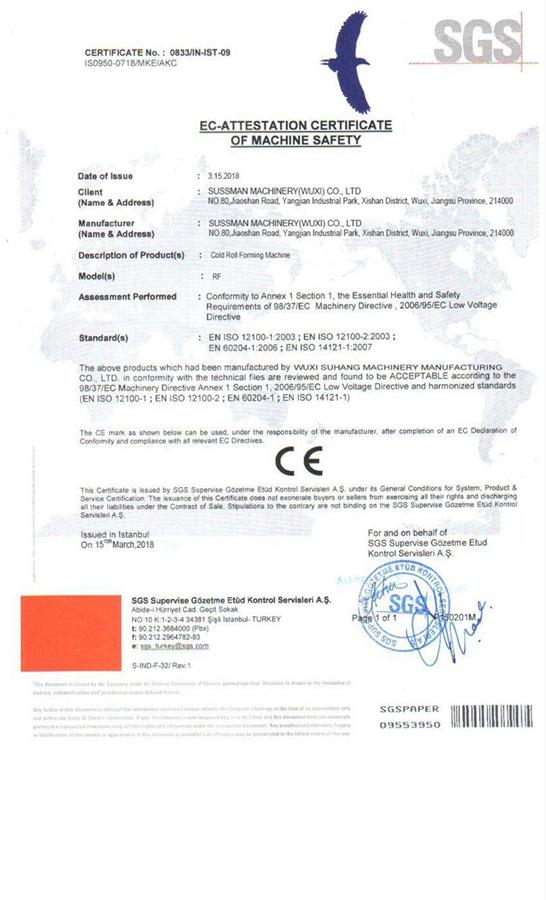

Certificate
