Hydraulic Cutting Chain Drive Galvanized Steel Sheet Door Rail Rolling Forming Machine 7.5Kw Main Power
Hydraulic Cutting Chain Drive Galvanized Steel Sheet Door Rail Rolling Forming Machine 7.5Kw Main Power
Door Rail Technical Parameter
1. Steel Sheet Thickness: 1.5-2mm (depend on requirement )
2. Transmission way: single chain
3. Transmission material: 45# steel, high frequency quenching, circular pitch: 38.1, number of teeth:13
4. Material of blad: Cr12, quenching treatment
5. Capacity of Decoiler: 3 ton passive decoiler
6. Forming Speed: 8-10m/min
7. Roller Groups: 12 stations upper and 16 stations down
8. Roller Material: Cr40 steel, high frequency quenching treatment, HRC58-62
9. Material: galvanized steel
10. Principal Axis: 45# high grade steel with quenching treatment
11. Main Motor Power: 7.5 Kw
12. Hydraulic Power: 4Kw
Door Rail Main Component
| S.N |
Equipment name |
Quantity |
| 1. |
3T passive un-coiler |
1 set |
| 2. |
Feeding and leveling device |
1 set |
| 5. |
Main roll forming machine 12 stations drived by chain
|
1 set |
| 6. |
Hydraulic cutting |
1 set |
| 7. |
Control system (including control box) |
1 set |
| 8. |
Out tables |
2 sets |
| 9. |
Water cooling system |
1 set |
Advantage for Door Rail
1. Reasonable Price
2. High Quality
3. 12 Months Warranty
4. More Than 10 Years Experience
5. Durable
6. Reliable
Working Flow of Door Rail
Decoiler----Feeding and Leveling---Roll forming---Cutting---Run out tables
Profiles of Door Rail

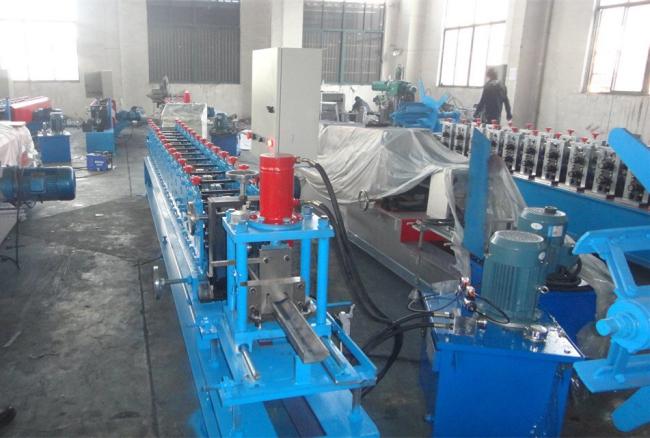

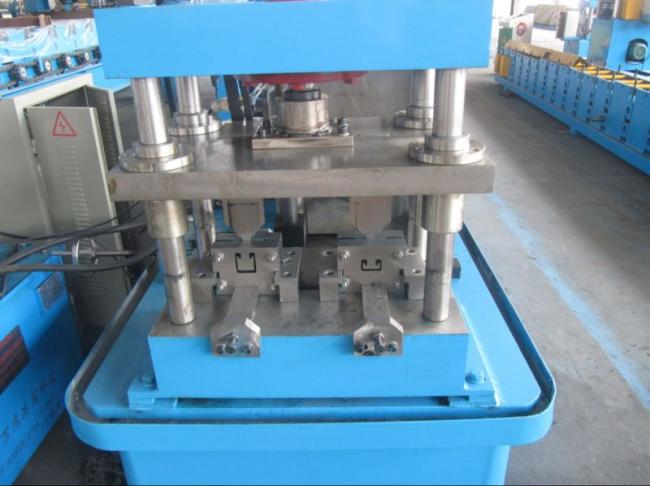

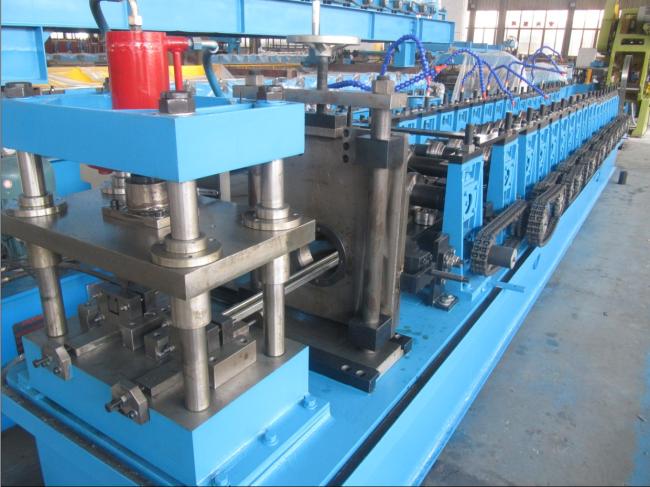

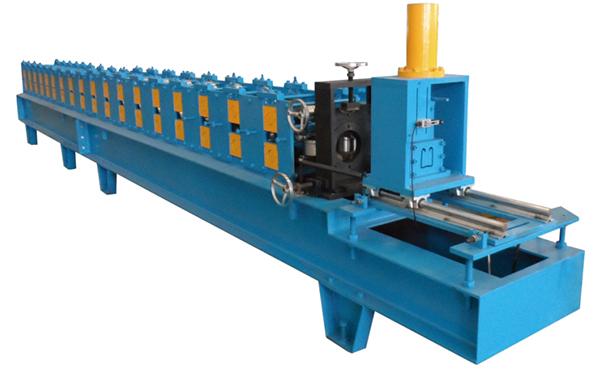

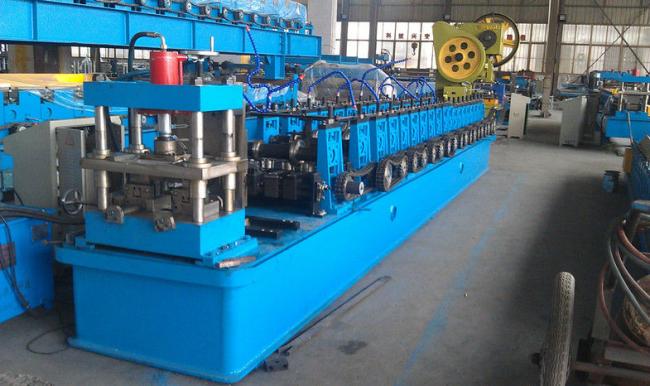

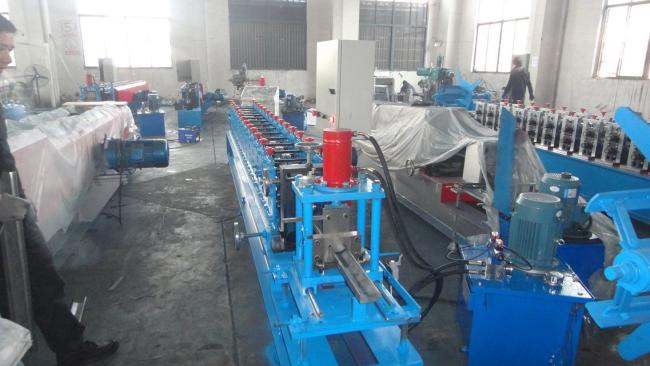

Machine pictures
