PLC Control Corrugated Roof Panel Roll Forming Machine For Thick 0.25 - 3mm Material
Metal roof panel roll forming machine
Technical Parameter
|
Item NO. |
Description |
Offered specification |
|
1.1 |
Rolling speed | UP to 12 m per min |
|
1.2 |
Rolling thickness | 0.25--3.0mm |
|
1.3 |
Raw material | Quench HRC Plated Chrome |
|
1.4 |
Dimension | 8000mm×1600mm×1200mm |
|
1.5 |
Effective width | 836mm |
|
1.6 |
Feeding Coil width | 1000mm |
|
1.7 |
Roller stations | About 18 stations |
|
1.8 |
Roller material | 45#forge steel, coated with chrome |
|
1.9 |
Shaft diameter | Φ76mm |
|
1.10 |
Transmission | By chain 1.2 inch |
| 1.11 | Material of chain | 45# forged steel with frequency quenching, 12A |
|
1.12 |
Material of cutting | Cr12Mov with quench HRC58-62° |
|
1.13 |
Tolerance | 10m+-1.5mm |
|
1.14 |
Hydraulic station | 4kw |
Main Components
| No. | Name | Quantity |
| 1 | 3 T manual de-coiler | 1 unit |
| 2 | Main forming machine | 1 unit |
| 3 | Control box | 1 unit |
| 4 | Hydraulic station | 1 unit |
| 5 | Out tables | 2 units |

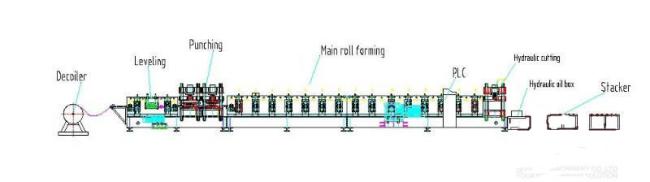

Roll Forming Machine Working Flow
De-coiler—Level device —Main roll forming machine—Hydraulic cutting— Run out table

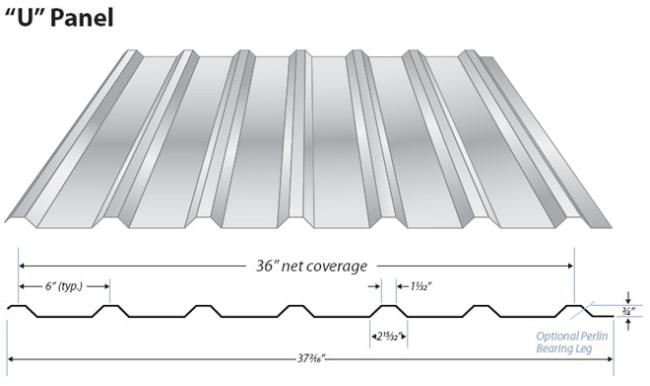

Standard Drawing of Product
Sample U Type Pannel

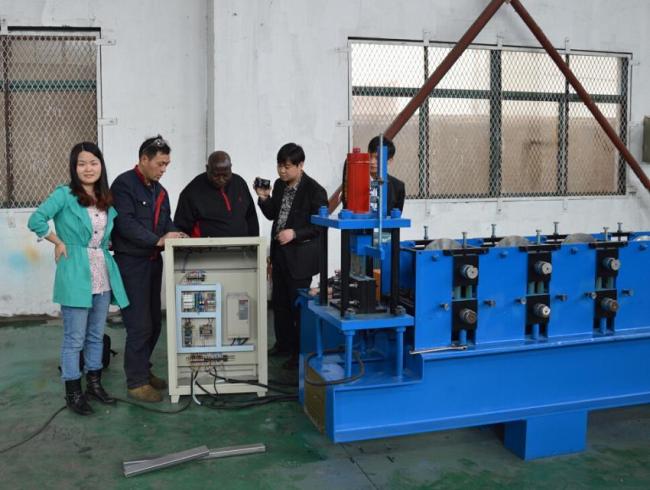

Customer Visiting
After-sale Serive
- The seller take responsibility to installation and commissioning of the equipment and free training. After machine arrive the destination, by the request of the buyer , the seller will provide 1 technical engineer to guide installation and training , and the buyer should give the technical person with full cooperated.
- Installation period: about 5 days after the complete preparation by the buyer such as the foundation and all necessary accessories.
- Training time: 5 days.
- Before departure of the engineers from seller, the buyer should pay for installation and commissioning fee 100$/day to the point account of the seller. The two-way ticket,visa, food, hotel , the translator and insurance are all should provide by buyer with full responsibility.
-The seller supply technical data (including forming mould drawing, electrical elements drawing and equipment drawing etc.)
