11KW 0.8-1.5mm Galvanized Steel Guide Rail Roll Forming Machine 22 Stations
11KW 0.8-1.5mm Galvanized Steel Guide Rail Roll Forming Machine 22 Stations
1. Technical Parameter
Suitable Plate Material: thickness 0.8-1.5mm, Galvanized steel or blank steel
Working Speed: 12 meters / min
Forming Steps: 22 stations
Material of Roller: Gcr15, Quench HRC58-62 Plated Chrome
Material of Shaft: 45# Advanced Steel (Diameter: 76mm), thermal refining
Driven system: Chain drive
Main Power with reducer: 11KW WH Chinese Famous
Cutting: Hydraulic Cutting Cr12mov
Material of Cutting Knife: Cr12Mov, Quench HRC58-62
Hydraulic Station Power: 4KW Wuxi Wanshen Famous Chinese Brand
The whole machine is controlled by industry computer-PLC.
PLC--Panasonic, Japan English and Chinese Language
Touch Screen--Panasonic Japan
Encoder--Omron, Japan
Electric parts--Schneider
2. Working Flow
3. Machine Components
| 3T hydraulic un-coiler | 1 set |
| Leveling device 300mm |
1 set |
| Servo feeding device 300mm |
1 set |
|
Press machine |
1 set |
| Main roll forming machine | 1 set |
| PLC control box | 1 unit |
| Hydraulic station | 1 unit |
| Punching die set |
1 set |
| Cassettes |
1 set |
| Out tables | 2 units |
4. Machine profile reference

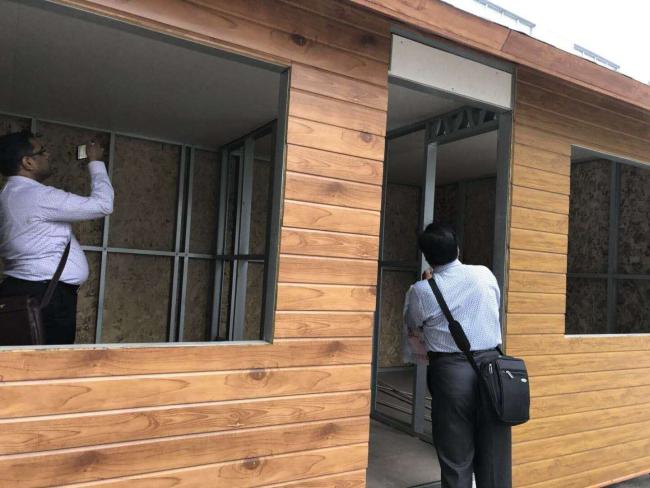

5. Our Exhibition
5. Payment Term:T/T,L/C
30% T/T in advance and 70% T/T after inspection before shipment.
Warranty
1. One year, and we will provide the technical support for the whole life.
2. Training: the buyer should charge of visa, return ticket, food and accommodation
overseas and USD100/person/day for salary.
3. Need one technicians
4. Training time: one week (contains the time of installation and adjustment)
