CE Certificate 13 Stations Main Channel Roll Forming Machine for Galvanized Steel
CE Certificate 13 Stations Main Channel Roll Forming Machine for Galvanized Steel
Main technique of the roll forming machine:
1,Running material: Galvanized steel Thickness – 0.27-1mm
2,Forming speed: 12-15m/min
3,Forming steps: 13 steps
4,Roller material: Fine steel precision work processing of Gcr15,Roller datum roller diameter φ120
5,Material of principal axis: Fine steel modulation processing of 45
6,Sprocket wheel: 45 steel high-frequencies quench; distance 25.4. Quantity: 13pcs
7,Motor power: 7.5 KW
8,Cut-off system: Adopts hydraulic pressure drive, cut off after forming.
9,Hydraulic system electrical machinery power: 4KW
10,Hydraulic system pressure: 10Mpa
11,PLC Control system: Brand of Panasonic ; Touch screen is brand of Beijing huade, Encoder is Japanese Omron brand; the Inverter is Siemens brand
12,Rack row of work place: Steel rack of 446X199H; Detachable wall plate type row of work place
13. Overall Dimension of the main forming machine: 6000mmX700mmX900mm
14, Total weight: 3 ton approximately
15. Un-coiler: 3 Ton capacity of manual un-coiler
16. the punching press machine for the holes
17. Power supply: 380V 50HZ, 3 phase
Applications
Metal stud and track, steel stud and track, c stud, u runner, u track, furring channel, roof ceiling batten, roof truss, c truss, light weight steel truss...
Main Channel Working Flow
De-coiler—→feedingwithguide—→main roll forming machine—→cutting—→ run out table

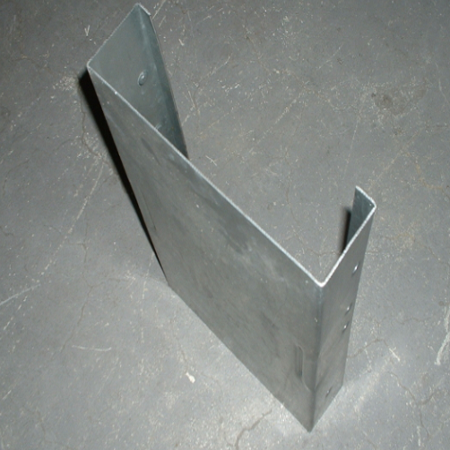

Profile Drawing OF Main Channel Roll Forming Machine
Main Components
| Machine list | 3 ton passive de-coiler | 1 set |
| Feeding with guide | 1 set | |
| Main roll forming machine | 1 set | |
| PLC Control box | 1 unit | |
| Hydraulic station | 1 unit | |
| Stop cutting device | 1 unit | |
| Safety cover | 1 unit | |
| Out table | 2 units |
Advantage for Main Channel Machine
1. Reasonable Price
2. High Quality
3. 12 Months Warranty
4. More Than 10 Years Experience
5. Durable
6. Reliable
Details of each composition:
Cutting
(1) Cutting after forming: Cut the sheet after roll forming to required length
(2) Cutting motion: The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.
(3) Material of blade: CR12with heat treatment
(4) Length measuring: Automatic length measuring
(5) Tolerance of length: 10m+/- 2mm
Main Channel Forming Machine Pictures
