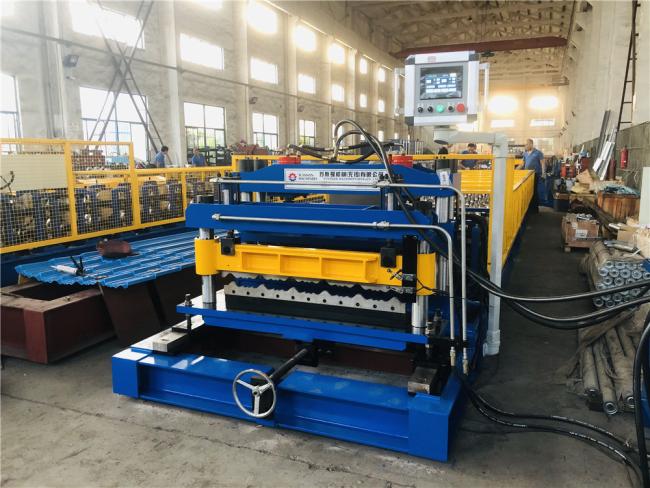

12m/Min 840mm Galvanized Sheet Glazed Tile Roll Forming Machine
Price:
negotiable
MOQ:
1 set
Delivery Time:
60 days after deposit
Brand:
Sussman
Product Description
Colored Steel 840 Mmglazed Tile Sheet Roof Press Making Machine Roll Forming Machinery
Glazed Tile Technical Parameter
| Product | Glazed roof roll forming machine |
| MODEL | different for you to choose(Our engineer and designer team service for you ) |
| Base material | Hot dipped galvanized steel |
| Thickness | 0.18mm-0.8mm |
| Effective Width | 600-1250mm (according to your need) |
| Roller material | 45# steel |
| Color | All colors(standard international color)or customers samples’ color |
| Control System | Panasonic PLC |
| power | 7.5KW |
| Technique | Cold-rolled, hot-dipped, galvanizing ,color-coated,corrugated |
| Cutting drive | Decelerating motor + Chain drive gear all by high-frequency |
| Cutting&Hydraulic type | Double guide pillar |
Glazed Tile Main Components
| No | Items | Quantity | Remarks | |
| 1 | Manual/Hydraulic Uncoiler | 1set | Up to customer | |
| 2 | Main forming machine | Pre-cutting device | 1set | Up to customer |
| Feeding device | 1set | |||
| Hydraulic system | 1set | |||
| Roll forming system | 1set | |||
| Hydraulic punching stamp device | 1set | |||
| Post cutting device | 1set | |||
| Protective cover | 1set | Up to customer | ||
| 3 | PLC control system with touch screen | 1set | ||
| 4 | Run out table | 4pcs | Up to customer | |
Working Flow of Glazed Tile
Decoiler----Feeding---Roll forming---Cutting---Run out tables
Profiles of Glazed Tile
Application
