China 0.6mm Stainless Steel Glass Sliding Door U Channel Roll Forming Machine for sale

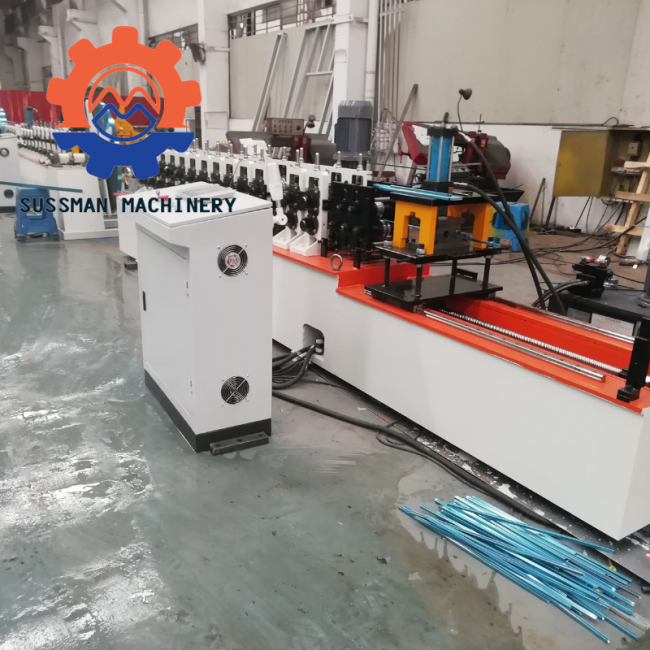

0.6mm Stainless Steel Glass Sliding Door U Channel Roll Forming Machine

Price Negotiable
Price: negotiable
MOQ: 1 set
Delivery Time: 60days after deposit
Brand: Sussman
Product Description

0.6 Mm Stainless Steel Glass Sliding Door U Channel Roll Forming Machine With High Speed 30 M/Min




Door Rail Technical Parameter




Suitable steel plate		 0.6mm stainless steel

Production speed		 0.-30m/min

Roller stand
13 rows

Diameter		 60mm

Main power
5.5kw

Pump power
4kw

Roller material
Carbon Steel 45#

Blade material
Cr12, qunched, Cr-plating size 0.05mm

Control system
PLC Delta

Main structure of the machine
300mm H-Beam





Door Rail Main Components





      1.

    3T passive un-coiler


     1 set
      2.

    Feeding and leveling device


     1 set
      3

    Main roll forming machine



     1 set
      4

    Hydraulic cutting


     1 set
      5.

    Control system (including control box)


     1 set
      6

    Out tables


     2 sets


















Working Flow of Door Rail

Decoiler----Feeding and Leveling---Roll forming--- Non stop cutting---Run out tables



Profiles of Door Rail
