30M 8 Lamps Outdoor High Mast Pole for Airport Lighting with Lifting System
30M 8 Lamps Outdoor High Mast Pole for Airport Lighting with Lifting System
Description:
Our Floodlighting pole can be appied to the lighting of airport, sea port, plaza, stadium. And we have different headframe design for the the mounting for different quantity of floodlight
Designed and manufacutred for durability, corrosion resistance and visual appeal.
Specifications:
|
Height |
From 20m to 55m |
|
Suit for |
Airport ,seaport,plaza,stadium ,square,highway, |
|
Shape |
Conoid ,Multi-pyramidal,Columniform,polygonal or conical |
|
Material |
Usually Q345B/A572,minimum yield strength>=345n/mm2 |
|
Lamp power |
20 W- 400 W (HPS/MH) |
|
Torlance of the dimenstion |
+- 2% |
|
Electroshock resistant protective grade |
Grade Ⅰ |
|
The casing anti-corrosion performance |
Class Ⅱ |
|
Working atmosphere of lighting fixture |
-35 ℃~+45 ℃ |
|
Surface treatment |
Hot dip galvanized Following ASTM A 123, |
|
Joint of Poles |
Insert mode,innerflange mode,face to face joint mode |
|
Design of pole |
Against earthquake of 8 grade |
|
Wind Speed |
160 Km/Hour |
|
Minimum yield strength |
355 mpa |
|
Minimum ultimate tensile strength |
490 mpa |
|
Max ultimate tensile strength |
620 mpa |
|
Standard |
ISO 9001 |
|
Length of per section |
Within 14m once forming without slip joint |
Steel
The material is in accordance with NF EN 10025
Standard and NF EN 10149 Standard,it has the following property.
-Yield Strength=355N/mm2
-Toughness remains the same under 20 degrees below zero.
-Galvanization is in accordance with NFA35503 Standard Class 1.
More Photos:
Company Introduction:
Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .
Our Company has 24 years experience on producing the steel poles including the transmission power pole,street light pole,high mast pole and so on.
We exported to oversea countries since 1991 and our products have been delivered to more than 70 countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa and so on.

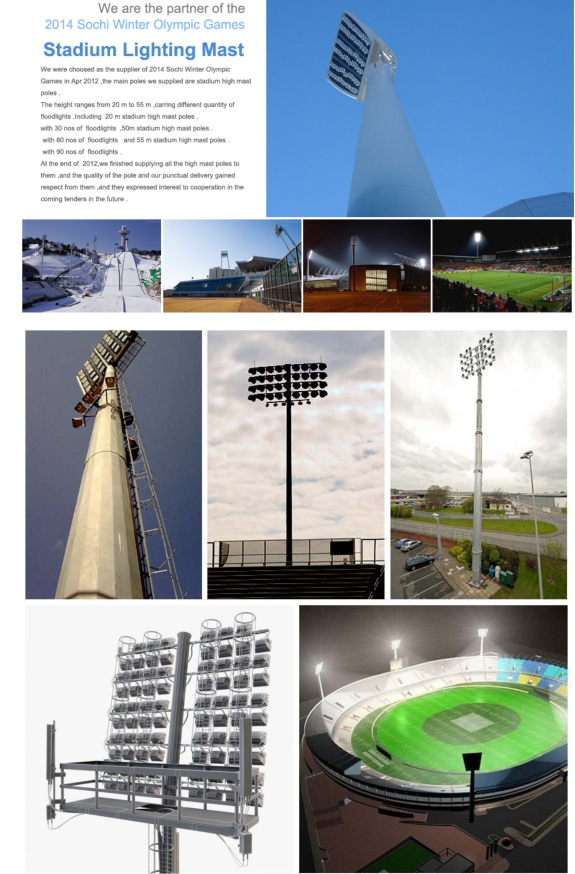

We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the high mast pole for Sochi Winter Olympic Game and so on.
