11.8M 20KN Gr65 Material 4mm Electric Power Pole for 69KV Power Transmission

11.8M 20KN Gr65 Material 4mm Electric Power Pole for 69KV Power Transmission

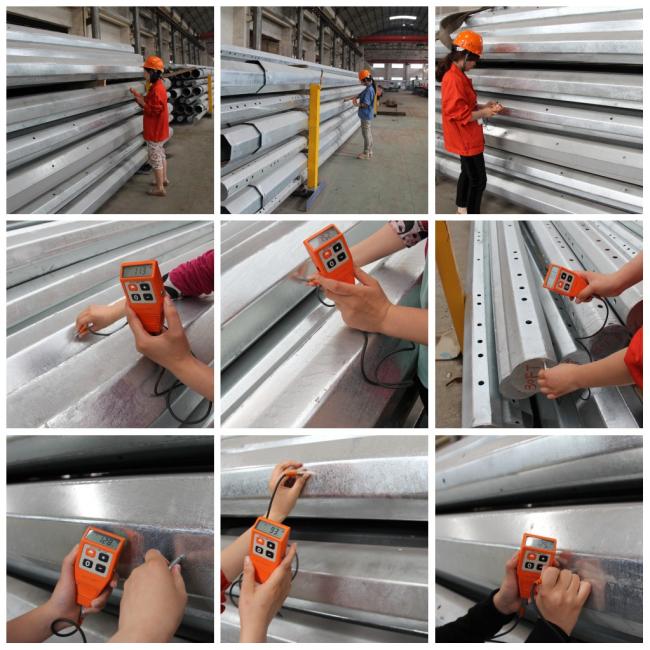

 Galvanization
 Standard:NFA91121
 Average thickness of the galvanization:Not less than 70μm.

 Manufacture Tolerance
 -Component Length:-25mm to 75mm
 -Straightness:2mm/m
 -Twisting degree:1°per 3 meters length
 -Ovalisation:Maximum is 3%
 -The average diameter:+/-0.5%
 -Slip length:+/-150mm

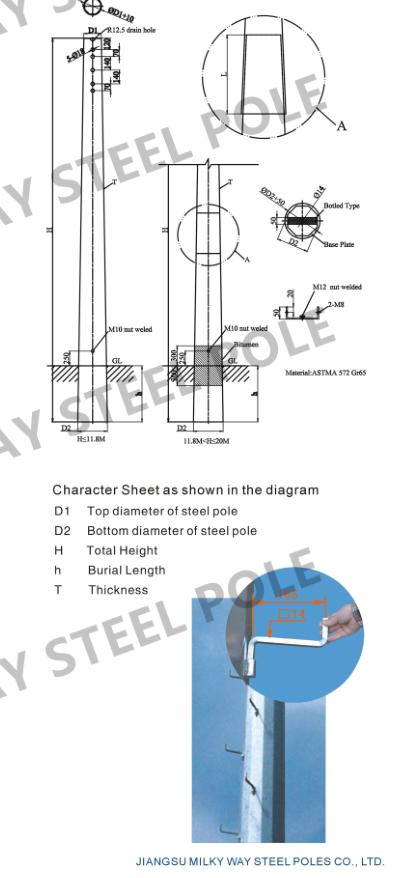

 Specifications:

 The information to inquiry or purchase
 -Steel pole height and force
 -Cross arm type and length,the position to install in the steel pole
 -The method to fix the cross arm(use bolt to connect or use one or two template to weld in the steel pole  to install the cross arm)
 -Safety factor of the steel pole
 -Wind speed
 -Type of climbing rung
 -Destination port
 -Other.

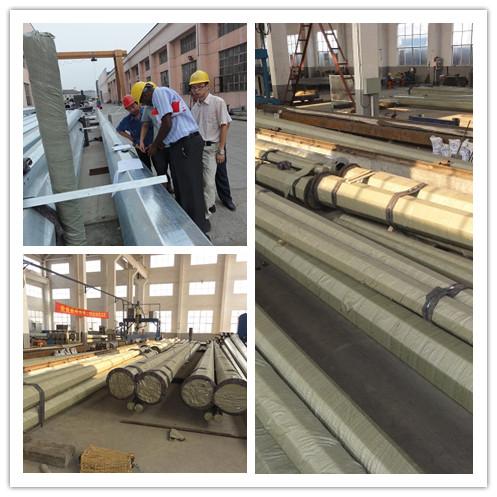

 More Photos:

 Company Introduction:
 Our development is based on quality, which allows us to always be able to stand ahead of the industry. In  1995, because of the introduction of the ISO9001 quality management system, our product quality has  been further increased and guaranteed. We have advanced testing equipment and experienced  technical engineers. This gives us continuously improve product quality to meet customer needs. Based  on product characteristics, we divide the inspection into four phases: raw materials inspection, production  process inspection, finished product inspection and regular inspection. Ours Qc have been engaged in  quality work for a long time and they consists of our quality deapartment . We implement the ISO9001  completely in during the process of productiong , proposed a concept. " the best way to return customers  is to provide high-quality product" !
