Dual Outreach 12M Galvanized Steel Pole Powder Coating for Road Lighting

Price Negotiable

Price: Negotiation

MOQ: 1 pcs

Delivery Time: 20 working days after received your payment

Brand: MilkyWay

Product Description

Dual Outreach 12M Galvanized Steel Pole Powder Coating for Road Lighting

Description:

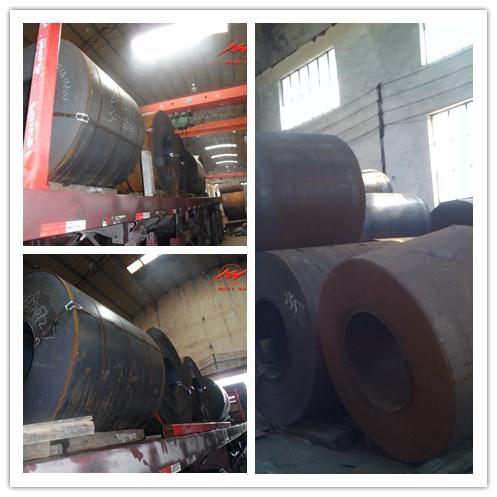

The material we use is from Baosteel.According to the different strength request,we can use the Q235,Q345 and GR65.The strength of GR 65 is best and Q235 is lowest.
For the street light pole,we usually choose Q235 and Q345.
The good quality of steel material guarantee the good quality of the finished steel pole.

Specifications:

Lamp power	20 W- 400 W (HPS/MH) 220V (+-10%) /50Hz
Torlance of the dimenstion	+- 2%
The casing anti-corrosion performance	Class Ⅱ
Working atmosphere of lighting fixture	-35 ℃~+45 ℃
Surface treatment	Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.
Joint of Poles	Insert mode,innerflange mode,face to face joint mode
Design of pole	Against earthquake of 8 grade
Wind Speed	160 Km/Hour
Production Process	Rew material test → Cuttingj →Molding or bending → Welidng (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages
Packages	Our poles as normal cover by Mat or straw bale at the top and bottom , anyway also can following by client required , each 40HC or OT can loading how many pcs will calculation base on the client actually specification and data.
