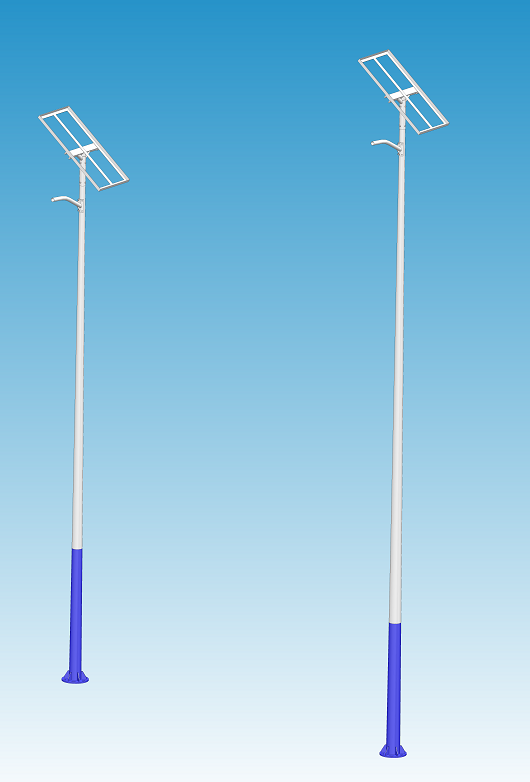

Solar 2.75mm 12m Dual Outreach Galvanized Steel Pole for Road Lighting
Solar 2.75mm 12m Dual Outreach Galvanized Steel Pole for Road Lighting
Specifications:
|
Optical assembly of lighting fixture |
IP 65 |
|
Electroshock resistant protective grade |
Grade Ⅰ |
|
The casing anti-corrosion performance |
Class Ⅱ |
|
Working atmosphere of lighting fixture |
-35 ℃~+45 ℃ |
|
Surface treatment |
Hot dip galvanized Following ASTM A 123, |
|
Joint of Poles |
Insert mode,innerflange mode,face to face joint mode |
|
Design of pole |
Against earthquake of 8 grade |
|
Wind Speed |
160 Km/Hour |
|
Minimum yield strength |
355 mpa |
|
Minimum ultimate tensile strength |
490 mpa |
|
Max ultimate tensile strength |
620 mpa |
|
Standard |
ISO 9001 |
|
Length of per section |
Within 14m once forming without slip joint |
Steel
The material is in accordance with NF EN 10025
Standard and NF EN 10149 Standard,it has the following property.
-Yield Strength=355N/mm2
-Toughness remains the same under 20 degrees below zero.
-Galvanization is in accordance with NFA35503 Standard Class 1.
More Photos
Application:
Highway Seamless Steel Pipe Park Seamless Steel Pipe
Main Roads Seamless Steel Pipe Dock Seamless Steel Pipe
Secondary Roads Seamless Steel Pipe Stadium Seamless Steel Pipe
Storage-yar Seamless Steel Pipe Overpass Seamless Steel Pipe
Industrial-Plant Seamless Steel Toll-Station Seamless Steel Pipe
Company Introduction:
JiangSu Milky Way Steel Poles Co., Ltd.was established in 1988, is located in Yixing City, Jiangsu Province, Wan Shi Town, covering an area of 35,000 square meters, annual output value reached 200 million . We have 20 years experience in design and production. Our main products are power pole, communication towers, street lighting poles, steel bracket and so on. The company has strong technical force, advanced production equipment, perfect quality management system, product quality has reached international advanced level.
