6 Sides 4-15m Powder Coating Galvanized Steel Pole with One Cross Arm
6 Sides 4-15m Powder Coating Galvanized Steel Pole with One Cross Arm
Specifications:
|
Height |
4 m~15 m |
|
Max length per section |
14 m |
|
Thickness |
2.5mm~30 mm |
|
Shape |
Conical or polygongal tapered |
|
Material |
Q235B/A36/A283 M Gr.C /SS400/S235 JR/St 37-2 /Fe 360 |
|
Lamp Power |
9 W~800 W (HPS/MH) |
|
Electroshock resistant protective grade |
Grade Ⅰ |
|
Finish |
hot dipgalvanization ,blasting,powder coating ,painting |
|
Galvanization standard |
ASTMA 123 / EN ISO 1461 |
|
Welding |
AWS D 1.1 /BS EN 1011-1,BS EN 1011-2 |
|
Joint of Poles |
Insert mode,innerflange mode,face to face joint mode |
|
Design of pole |
Against earthquake of 8 grade |
Production Flow:
The production process:Row material test → Cutting →Molding or bending →Welding (longitudinal )→Dimension verify →Flange welding→Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages

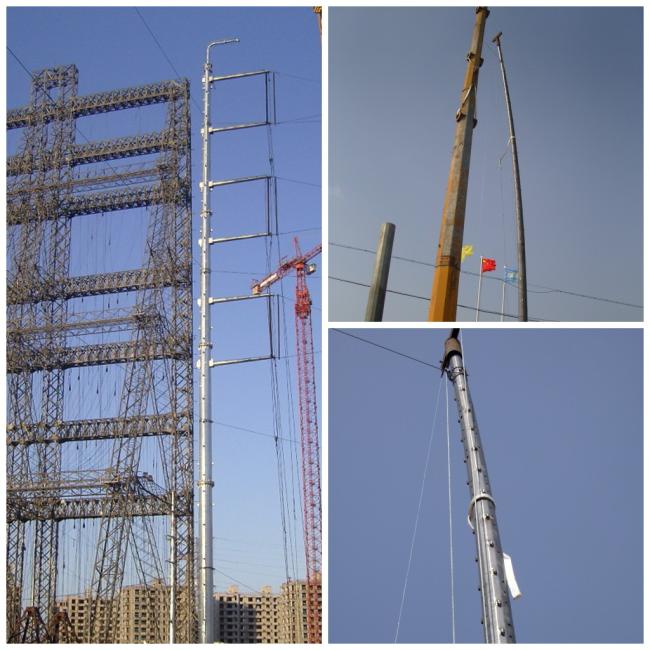

Installation
-Remove all the equipment on the pole during Assembly.
-Circle a sling around th epole shaft of each section.
-Fix the sling on top section to one pulley block.
-The sling on the bottom section is tightly fixed and fixed at the center of gravity.
-Make the steel pole vertical by tighten the sling of the top section.
-Fix the steel pole.
-Remove the sling.

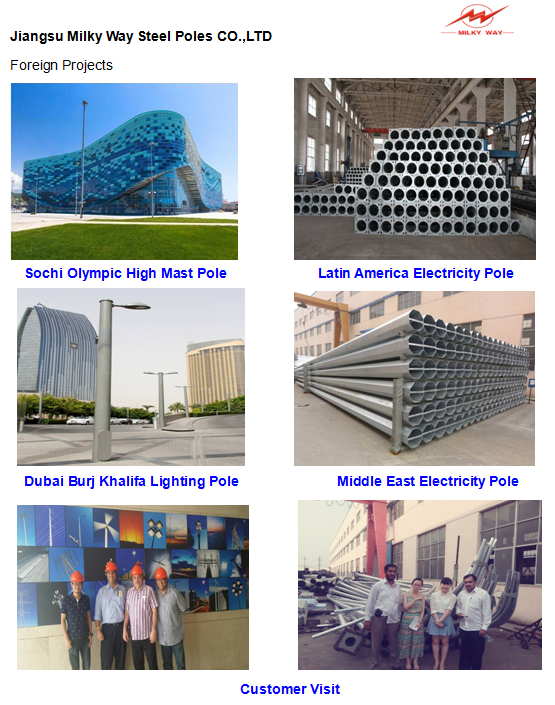

Company Introduction:
JiangSu Milky Way Steel Poles Co., Ltd.was established in 1988, is located in Yixing City, Jiangsu Province, Wan Shi Town, covering an area of 35,000 square meters, annual output value reached 200 million . We have 20 years experience in design and production. Our main products are power pole, communication towers, street lighting poles, steel bracket and so on. The company has strong technical force, advanced production equipment, perfect quality management system, product quality has reached international advanced level.
