Single Arm 3mm Galvanized Steel Poles , Anti - Corrosion Outdoor Light Pole
Single Arm 3mm Galvanized Steel Poles One Section for Highway Lighting

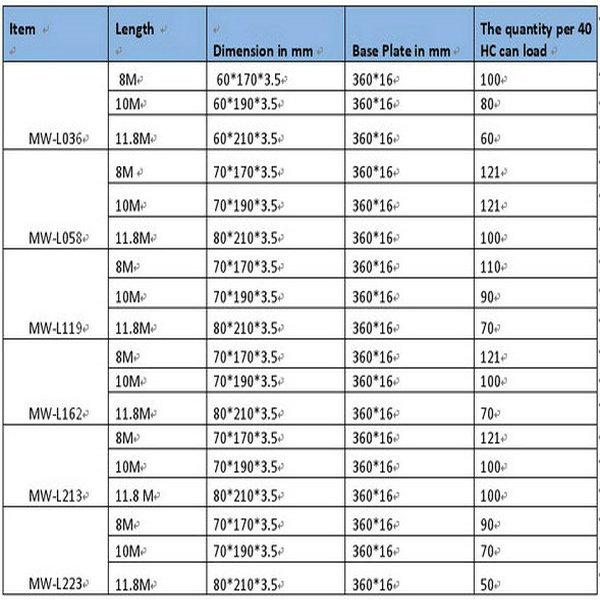

Specifications:
|
Type |
Street Lamp pole, lamp post . Lamp column |
|
Shape |
Conoid ,Multi-pyramidal,Columniform,polygonal or conical |
|
Material |
Usually Q345B/A572,minimum yield strength>=345n/mm2 |
|
Torlance of dimenstion |
-0.02 |
|
Design Load in Kg |
300~ 1000 Kg appliced to 50cm from the to pole |
|
Surface treatment |
Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required. |
|
Standard |
Octagonal tapered column |
|
Length of per section |
Within 14m once forming without slip joint. |
|
Suit for |
Highway |
|
Option |
Height from 6m to 12m |
|
Production Process |
Raw material test → Cutting →Molding or bending →Welidng (longitudinal ) →Dimension verify →Flange welding →Hole drilling →Calibration →Deburr →Galvanization or powder coating ,painting →Recalibration →Thread→Packages |

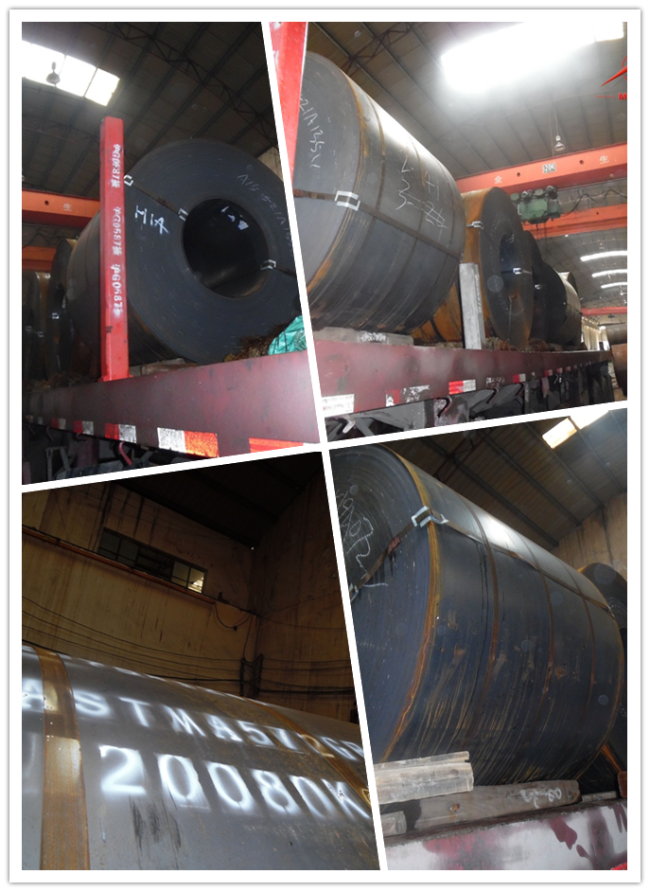

Descripition of material:
1. Poles are made by the high-quality metal plants,which were molded into the multi-row cone- shaped vertical steel barwith hot galvanized anti-corrosion treatment
2. Light plate frame is made by high-quality stainless steel
3. Fastened bolts and nuts of stainless steel
Design and Detail
Lofting and design software :We have Seamless Steel Pipe design software which can help us design all kinds of steel pole ,at the same time ,the TMA and LMA are adopted by us to provide the design the drawing accurately.

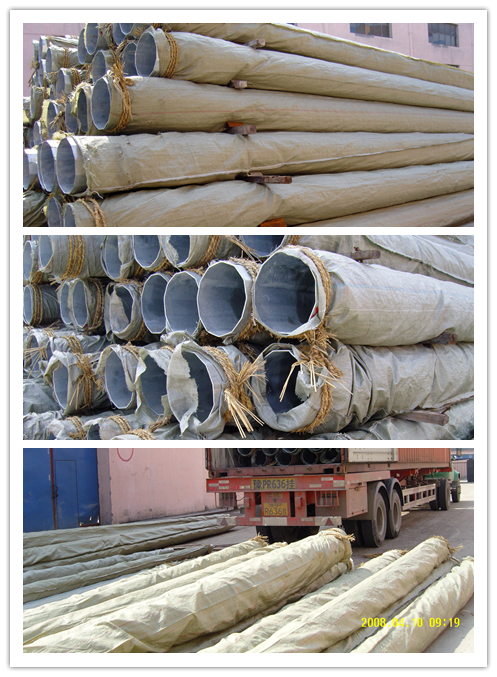

Package:
