15m Powder Coated High Mast Outdoor Lamp Pole For Park Lighting Fixed Ladder
Specification
|
Type |
Outdoor lighting pole/light pole/light column/street light pole |
|
Shape |
Conical/ Octagonal |
|
Material |
Usually Q345B/A572,minimum yield strength>=345n/mm2 |
|
Torlance of dimenstion |
-0.02 |
|
Design Load in Kg |
300~ 1000 Kg appliced to 50cm from the to pole |
|
Surface treatment |
Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required. |
|
Standard |
|
|
Length of per section |
Within 14m once forming without slip joint. |
|
Suit for |
Highway |
|
Option |
Height from 3m to 45m |
|
Production Process |

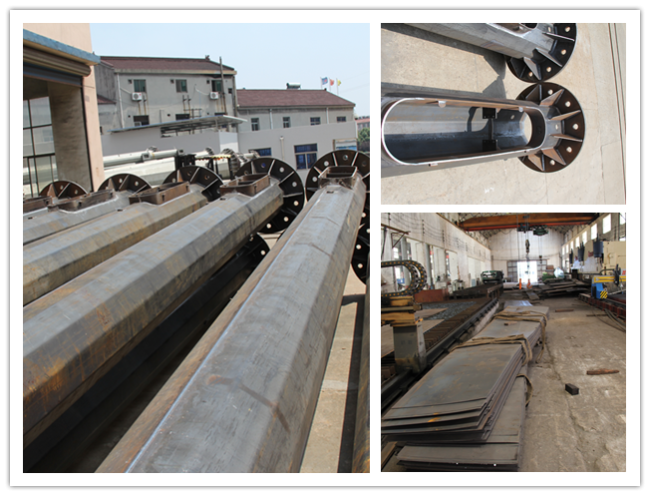

Raw material test → Cutting → bending →Welidng (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration →Deburr→Galvanization or powder coating ,painting →Recalibration →Thread→Packages |
Descripition of material
1. Poles are made by the high-quality metal plants,which were molded into the multi-row cone-shaped vertical steel barwith hot galvanized anti-corrosion treatment
2. Light plate frame is made by high-quality stainless steel
3. Fastened bolts and nuts of stainless steel
Feature

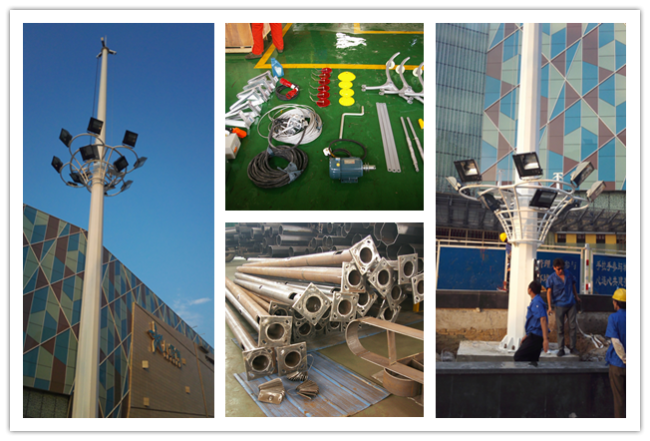

Special designed for stadium to provide high-power, large-area lighting for facilities; Lighthouse is devided into fixed or lift, fixed poles set up an escalator inside for installation and maintenance purposes
Light source :400w-1000w sodium light
Application
City squares, stations, ports, highways, stadiums, flyovers and etc
Standard
Electric box protection level: IP23
Lamp protection level: IP54
Installation

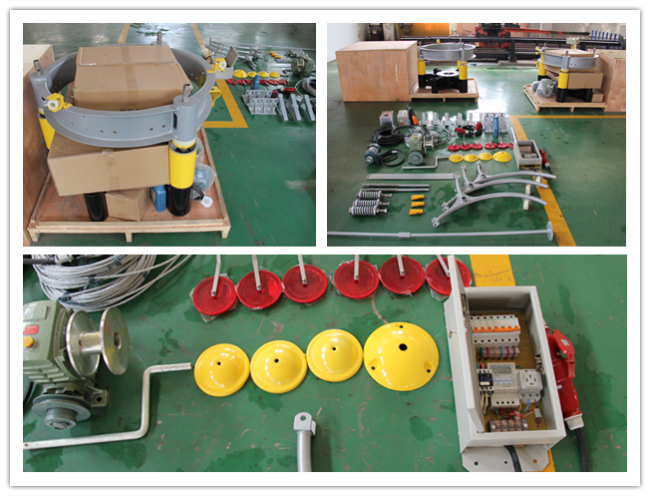

1. high-pressure sodium lamp with external ballast and Triggers installed in light tray.
2. when replacing or repairing light and other electrical appliances, you should use special wrench to open it.
3. control box installed at the poles or the lower part of the poles
Specific explanation
1. please install according to requirements of the company
2. make sure that the light body touches the ground during installation.
