Outdoor Galvanized Steel Utility Poles Street Lights Poles With Double Arm
Outdoor galvanized steel pole street lights poles with double arm
Specifications:
Height | From 3 m to 15 m |
Suit for | Airport ,seaport,plaza,stadium ,square,highway, |
Shape | Conoid ,Multi-pyramidal,Columniform,polygonal or conical |
Material | Usually Q345B/A572,minimum yield strength>=345n/mm2 |
Lamp power | 20 W- 400 W (HPS/MH) |
Torlance of the dimenstion | +- 2% |
Optical assembly of lighting fixture | IP 65 |
Electroshock resistant protective grade | Grade Ⅰ |
The casing anti-corrosion performance | Class Ⅱ |
Working atmosphere of lighting fixture | -35 ℃~+45 ℃ |
Surface treatment | Hot dip galvanized Following ASTM A 123, |
Joint of Poles | Insert mode,innerflange mode,face to face joint mode |
Design of pole | Against earthquake of 8 grade |
Wind Speed | 160 Km/Hour |
Minimum yield strength | 355 mpa |
Minimum ultimate tensile strength | 490 mpa |
Max ultimate tensile strength | 620 mpa |
Standard | ISO 9001 |
Length of per section | Within 14m once forming without slip joint |
Welding | We has past flaw testing.Internal and external double welding |
Thickness | 1 mm to 30 mm |
Production Process | Rew material test → Cuttingj →Molding or bending → |
Packages | Our poles as normal cover by Mat or straw bale at the |
Style | Size and styles are veriable as per customer request |
Application:
Highway Seamless Steel Pipe Park Seamless Steel Pipe
Main Roads Seamless Steel Pipe Dock Seamless Steel Pipe
Secondary Roads Seamless Steel Pipe Stadium Seamless Steel Pipe
Storage-yar Seamless Steel Pipe Overpass Seamless Steel Pipe
Industrial-Plant Seamless Steel Toll-Station Seamless Steel Pipe

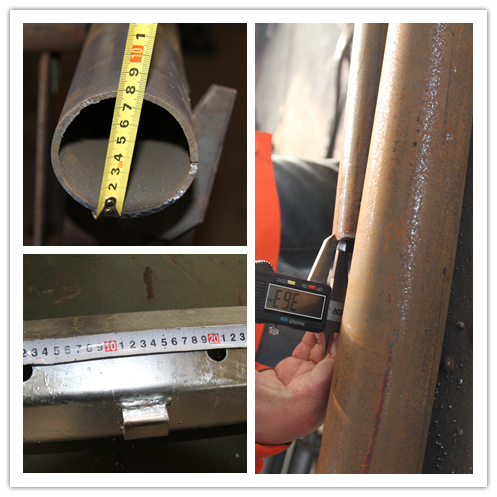

Inspection:
Before shipment, we have a final inspector manager to check the products on every detail and component to
make sure it all meet the drawing.

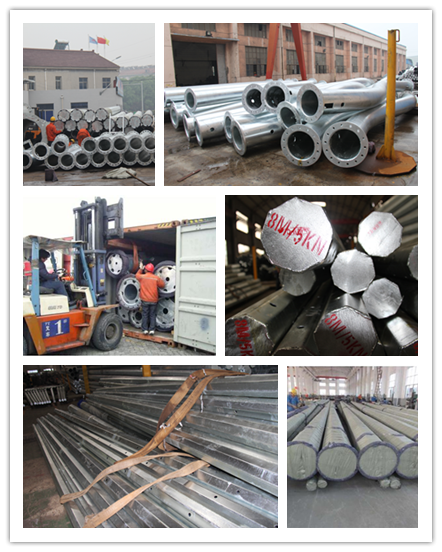

Package and shipment:
Our poles as normal cover by Mat or straw bale at the top and bottom and wood between the poles to avoide the damage on the galvanization of the pole ,anyway also can following by client required , The loading capacity of 40HC or OT an be calulated calculation base on the client actually specification and data.
Company Introduction:
Jiangsu Milky Way Steel Poles Co.,Ltd .was founded in 1991 is a cooperative shares system corp. The company
covers an area of 150,000 square meter .It is now centralizing in pole design, ,research, production ,and
installation. After twenty years of development , the company owns Hot Spray Coating Zinc Branch Factory ,Anhui
Steel Branch ,MilkyWay Lighting Installation Engineering Company. The total asset of the
company amount to 100 million RMB and the annual production of transmission pole comes to 20 thousand ton
per year . The annual production of steel structure comes to 10 ton and street pole of 30 thousand sets .
