Housing Electrical Wires And Cables Black Green Yellow Blue JB8734.1~5-1998
PVC/XLPE insulated 300v-750v housing electrical cable for power transmission
Specifications:
|
Section of conductor(mm ²): |
1.5—70 |
|
INSULATION THICKNESS(mm) : |
1.0—2.79 |
|
sheath: |
PE.PVC/XLPE |
|
Payment Terms: |
L/C,D/A,D/P,T/T, Western Union |
|
Voltage : |
300v/450v/500v/750v |
|
No. of cores: |
1 or more |
|
Conductor |
99.5% Pure Oxygen Free Copper or Aluminum alloy |
|
Color: |
Black, Green and as customer request |
|
Packing: |
100 meters per roll or 500 meters per roll or as per requirement |
|
Application : |
These electrical cables are used for general wiring, unenclosed, enclosed in conduit, buried direct or in underground ducts for domestic, commercial and industrial applications where not subject to mechanical damage. |
|
Common Model name : |
BV Copper Core PVC Insulation cable BLV Aluminum Core PVC Insulation cable BVR Copper Core PVC Insulation Flexible cable BVV Copper Core PVC Insulation PVC Sheath Round cable BVVB Copper Core PVC Insulation PVC Sheath Flat cable BLVVB Aluminum Core PVC Insulation PVC Sheath Flat cable BV-90 Copper Core Heat-resistance 105℃ PVC Insulation
|
|
Delivery time: |
10—20 days |
3.Properties of pvc/xlpe insulated cable
1. The highest allowed operating temperature of conductor for long-term working is 105 degrees.
2. In short circuit (Max long term is no more than 5 seconds). The highest temperature for conductor is no more than 250 degrees.
3. The cable is laid without horizontal drop limit. The environment temperature should be no lower than -20 degrees when lay. Otherwise it should be preheated.
4. Excellent electrical performance, resistance to chemical corrosion.
5. Can stand advisable traction when laid.Can stand traction from Outside. Left low smoke halogen-free after burned.Retard the burning of the cable.
OUR SERVICES

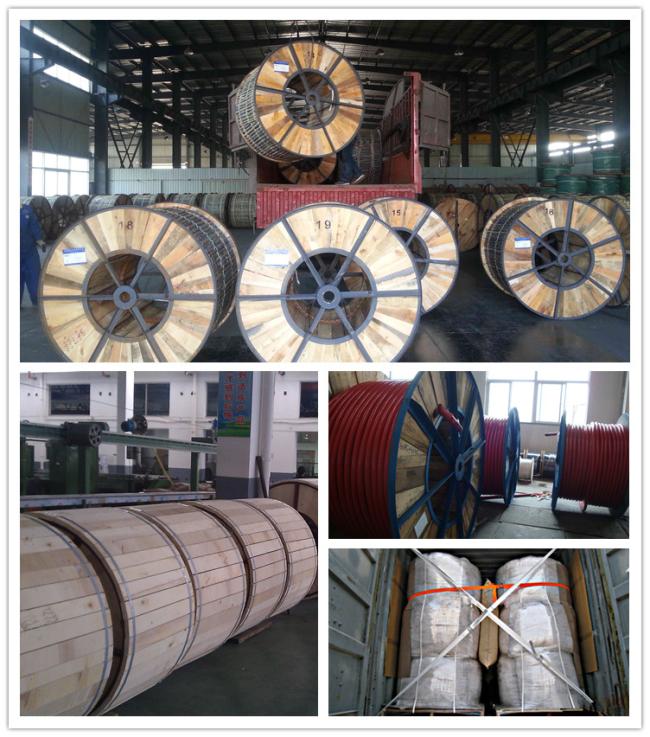

As you know there are so many cable manufacture, we are one of the biggest manufacture in chinamainland. We will give you a perfect shopping experience . If you need visit our factory , we will meet you at the airport or train station.
Also we can offer other service Custom Merchandise:we can make cable as your need include the color ,size and so on.we also offer OEM .
Complete Course Tracking:we can offer you the service from the business begin to you get the cable and use it .
Cable sample : we can offer the sample free.
