Philippine NPC 50FT - 70FT Electric Galvanised Steel Poles For Power Transmission
Galvanized Philippine NPC 50FT-70FT Electric Steel Power pole for Power Transmission
Steel
All of our material are purchased from famous mill factory to assure the quality
A mill certificate issued by the mill factory with stamp and signature must be provided before unload the material in our factory ,otherwise we have our reason to refuse the material .
Before put into production ,all the material must pass the chemical and physical analysis to make sure that they have meet the requested strength and component.
Specifications:
| Philippines NPC Specification | |||||
| ITEM | STEEL POLE | ||||
| TYPE | LENGTH | TIP DIAMETER | BUTT DIAMETER | THICKNESS | |
| (FT) | (MM) | (MM) | (MM) | ||
| 1 | B | 50 | 200 | 370 | 6 |
| 2 | E | 50 | 200 | 585 | 6 |
| 3 | HT | 50 | 200 | 520 | 6 |
| 4 | B | 55 | 200 | 395 | 6 |
| 5 | E | 55 | 200 | 625 | 6 |
| 6 | HT | 55 | 200 | 550 | 6 |
| 7 | B | 60 | 200 | 415 | 6 |
| 8 | C | 60 | 250 | 730 | 6 |
| 9 | D | 60 | 300 | 765 | 7 |
| 10 | E | 60 | 200 | 660 | 6 |
| 11 | HS | 60 | 200 | 400 | 6 |
| 12 | HT | 60 | 200 | 580 | 6 |
| 13 | B | 65 | 200 | 435 | 6 |
| 14 | C | 65 | 250 | 770 | 6 |
| 15 | D | 65 | 300 | 755 | 8 |
| 16 | E | 65 | 200 | 700 | 6 |
| 17 | HT | 65 | 200 | 615 | 6 |
| 18 | B | 70 | 200 | 455 | 6 |
| 19 | C | 70 | 250 | 805 | 6 |
| 20 | D | 70 | 300 | 790 | 8 |
| 21 | E | 70 | 200 | 740 | 6 |
| 22 | HT | 70 | 200 | 645 | 6 |
| 23 | 3T | 70 | 250 | 640 | 6 |
| 24 | 3D | 70 | 300 | 765 | 6 |
| 25 | spare type D | 70 | 300 | 790 | 8 |

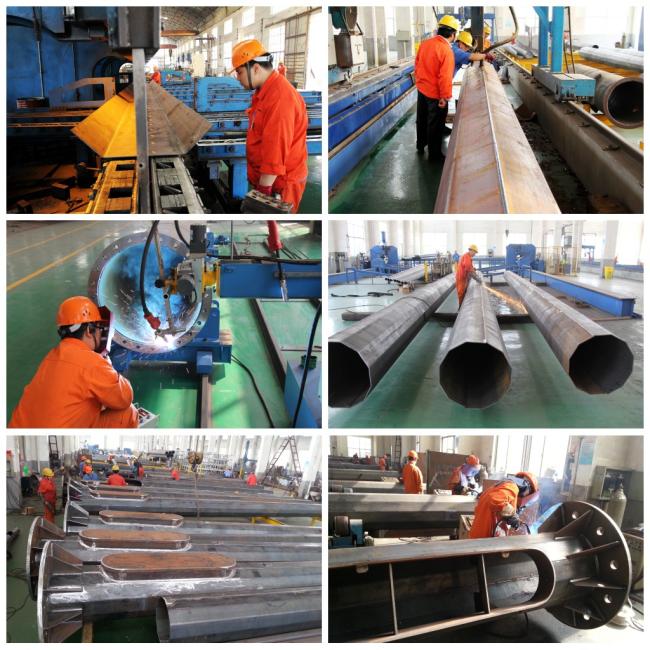

Production Process
Raw material test → Cutting →bending →Welding (longitudinal )→Dimension verify →Flange welding →Hole drilling →sample assemble → surface clean→ Galvanization or powder coating ,painting →Recalibration →Packages

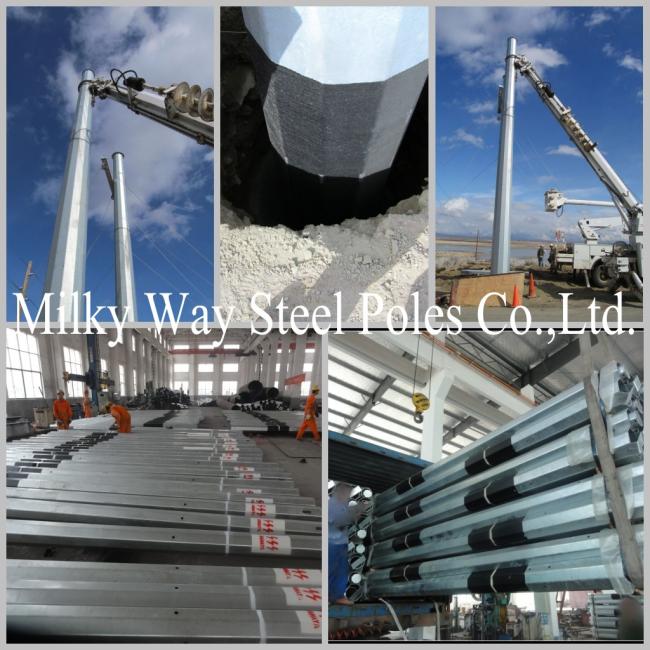

Installation
-Remove all the equipment on the pole during Assembly.
-Circle a sling around th epole shaft of each section.
-Fix the sling on top section to one pulley block.
-The sling on the bottom section is tightly fixed and fixed at the center of gravity.
-Make the steel pole vertical by tighten the sling of the top section.
-Fix the steel pole.
-Remove the sling.
The information to inquiry or purchase
-Steel pole height and force
-Cross arm type and length,the position to install in the steel pole
-The method to fix the cross arm(use bolt to connect or use one or two template to weld in the steel pole to install the cross arm)
-Safety factor of the steel pole
-Wind speed
-Type of climbing rung
-Destination port
-Other.
Company Introduction:
Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .
Our Company has 24 years experience on producing the steel poles including the transmission power pole,street light pole,high mast pole and so on.
We exported to oversea countries since 1991 and our products have been delivered to more than 70 countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa and so on.
We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the high mast pole for Sochi Winter Olympic Game and so on.
